Loading geometry

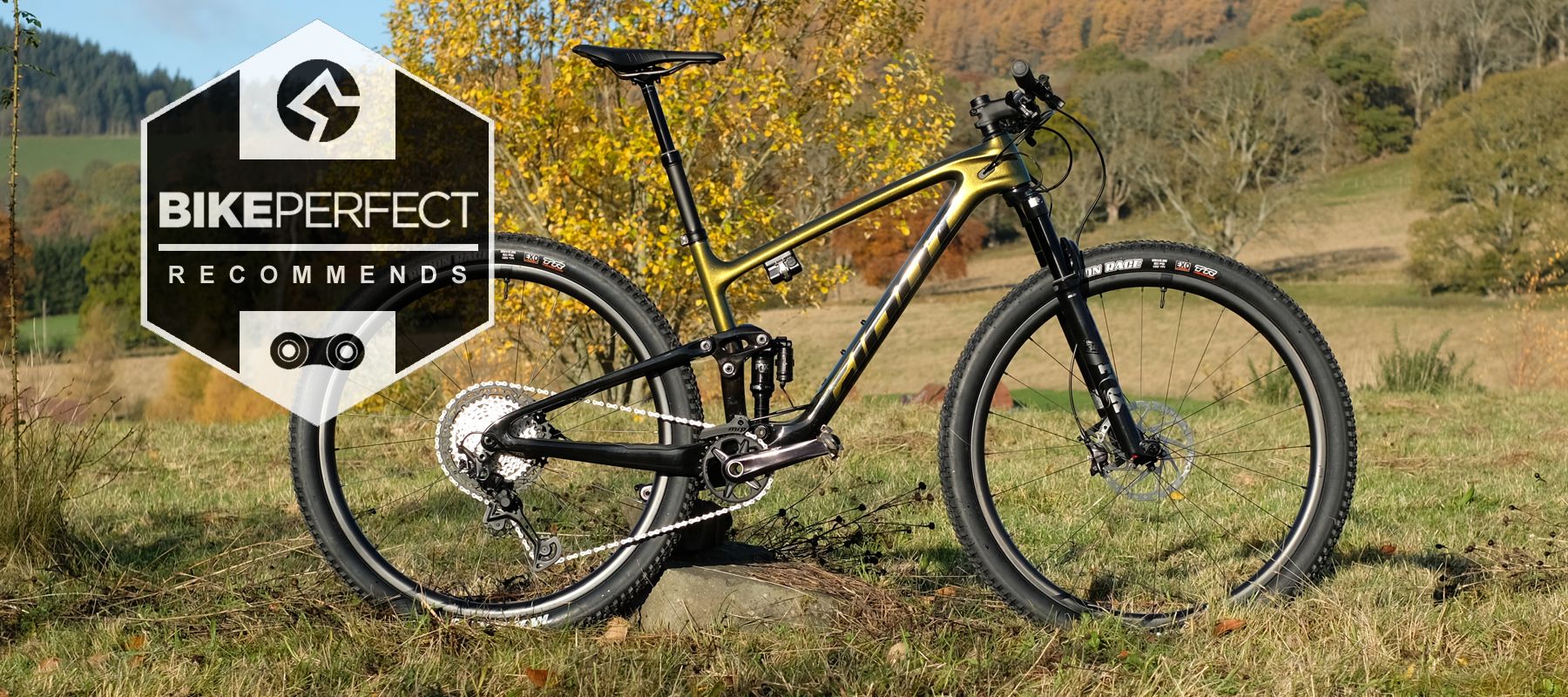

XC race Giant. Short travel, steep-enough-to-sprint, and unhappy if you treat it like Trance.
XC racers. Downcountry riders may prefer Trance X.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 mm | 420 mm | 1.42:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 75.5° | 435 mm | 1145 mm | 42 mm | 29" |
| M | 604 mm | 445 mm | 1.36:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 75.5° | 435 mm | 1170 mm | 42 mm | 29" |
| L | 613 mm | 470 mm | 1.30:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 75.5° | 435 mm | 1197 mm | 42 mm | 29" |
| XL | 627 mm | 495 mm | 1.27:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 75.5° | 435 mm | 1226 mm |
No colorway catalog for 2023 yet.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 42 mm |
| 29" |
