Loading geometry

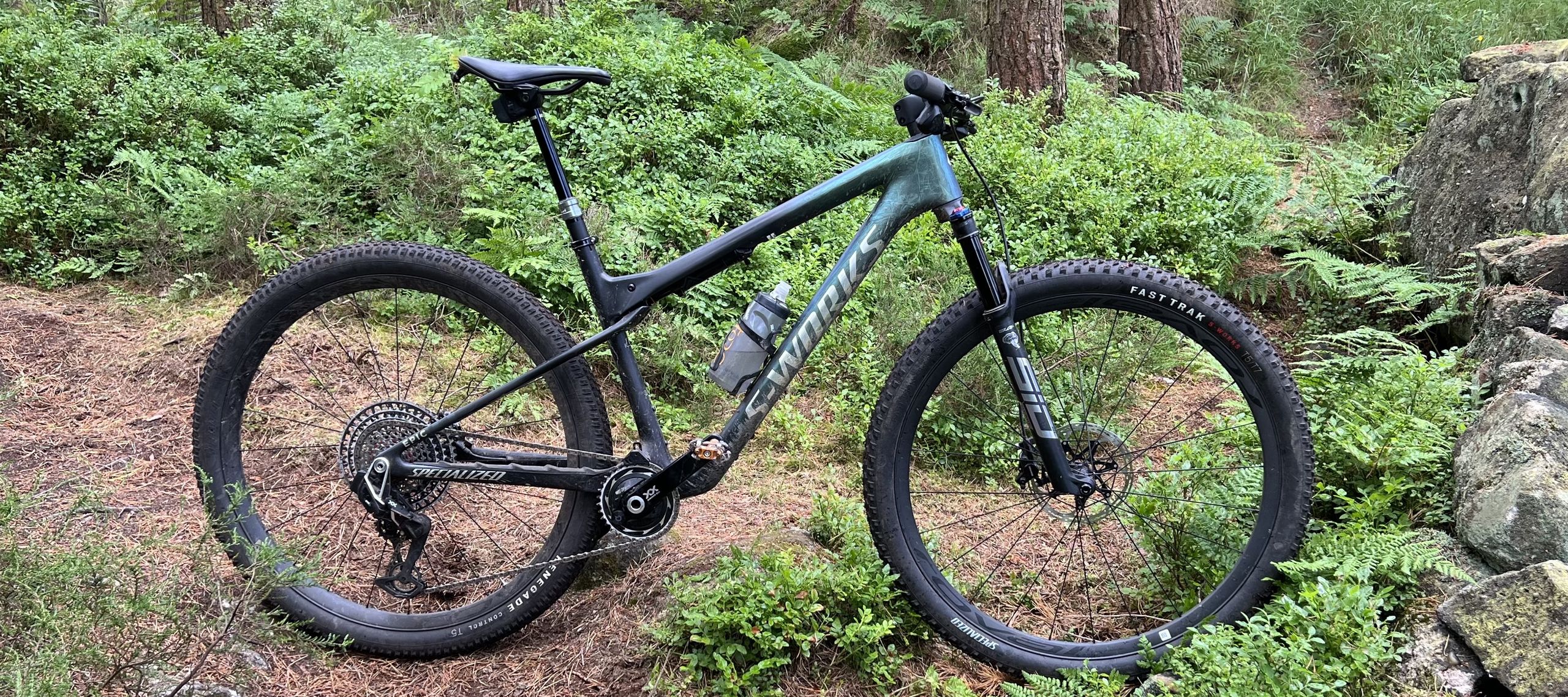

The hardtail-ish World Cup Epic: minimal rear travel, race-steep intent, built to be ridden by people who already go fast on XC courses.
XC racers who want the lightest Epic, not a trail 29er.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 mm | 415 mm | 1.45:1 | 50 mm | 800 mm | 175 mm | 145 mm | 66.5° | 74.5° | 430 mm | 1124 mm | 58 mm | 29" |
| M | 600 mm | 440 mm | 1.36:1 | 50 mm | 800 mm | 175 mm | 145 mm | 66.5° | 74.5° | 430 mm | 1150 mm | 57 mm | 29" |
| L | 614 mm | 465 mm | 1.32:1 | 50 mm | 800 mm | 175 mm | 145 mm | 66.5° | 74.5° | 430 mm | 1181 mm | 57 mm | 29" |
| XL | 628 mm | 490 mm | 1.28:1 | 50 mm | 800 mm | 175 mm | 145 mm | 66.5° | 74.5° | 430 mm | 1212 mm |
No colorway catalog for 2023 yet.
This is the earliest Epic World Cup year in the catalog. No prior year to compare.
No verified spec sheet for 2023 yet.
No launch MSRP in the catalog yet.
| 57 mm |
| 29" |
