Loading geometry

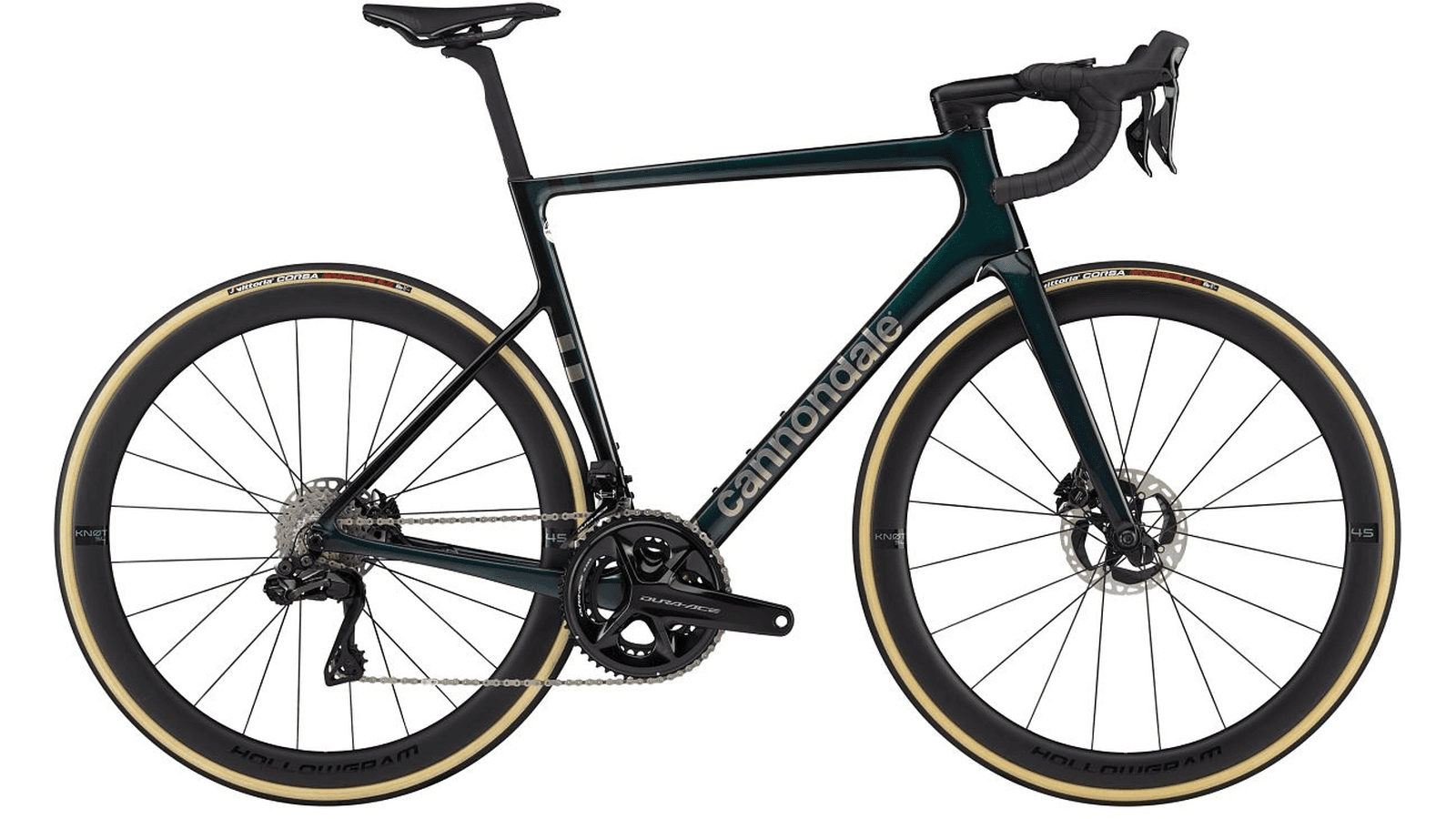

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size 44). Category: road-race.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| 44 | 503 mm | 369 mm | 70.9° | 74.3° | 408 mm | 969 mm | 74 mm |
| 48 | 518 mm | 373 mm | 71.4° | 74.3° | 408 mm | 974 mm | 74 mm |
| 51 | 539 mm | 377 mm | 71.9° | 74.0° | 408 mm | 979 mm | 74 mm |
| 54 | 560 mm | 383 mm | 73.0° | 73.7° | 408 mm | 984 mm | 72 mm |
| 56 | 577 mm | 389 mm | 73.0° | 73.3° | 408 mm | 994 mm | 72 mm |
| 58 | 600 mm | 394 mm | 73.0° | 72.9° | 408 mm | 1004 mm | 69 mm |
| 61 | 623 mm | 399 mm | 73.1° | 72.5° | 408 mm | 1014 mm | 69 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
