Loading geometry

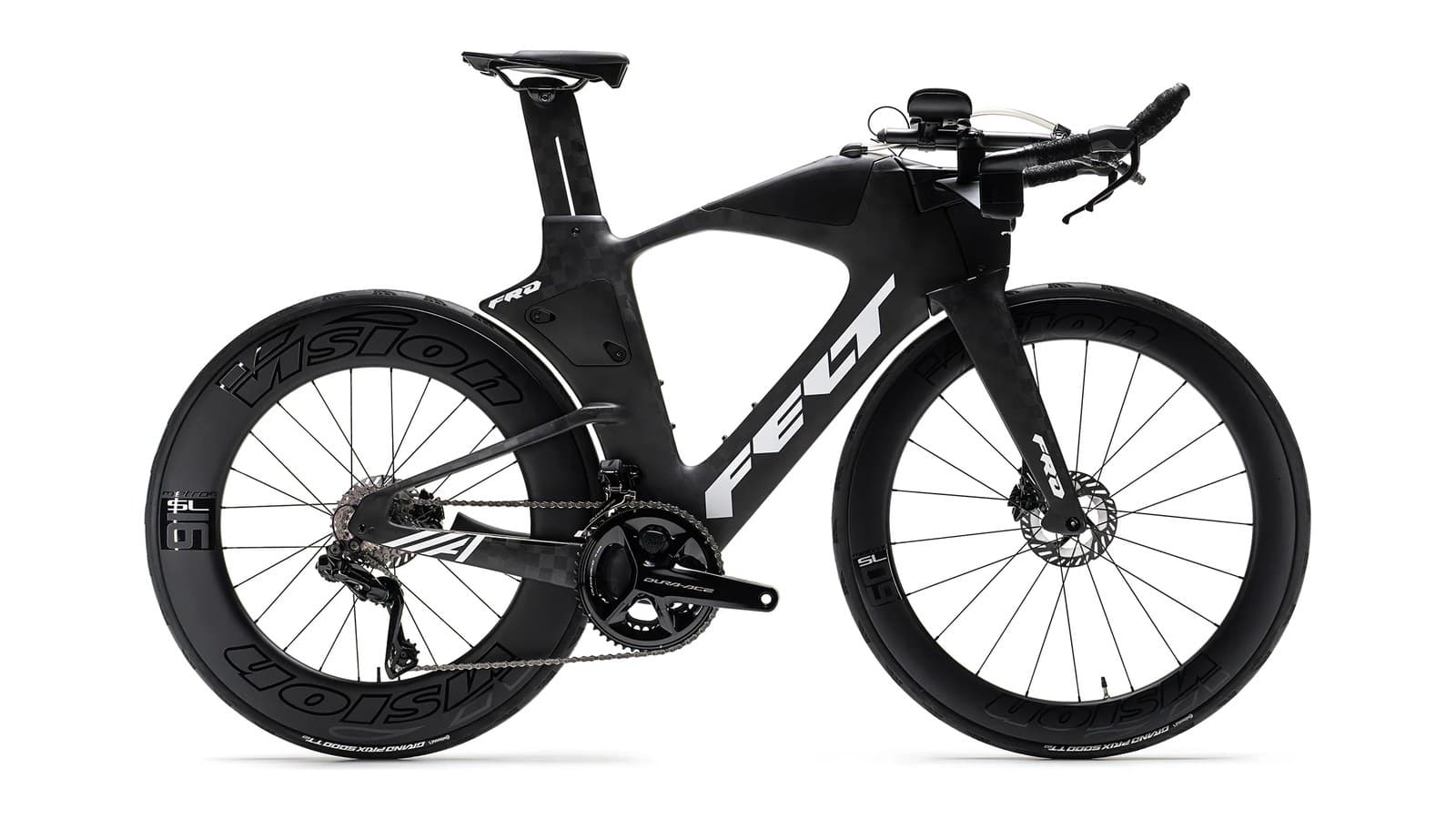

Felt triathlon/TT bike. Extreme aero position — compare only with other TT bikes, not FR/AR road fits.
Triathletes and time trialists.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 478 mm | 392 mm | 1.22:1 | 80 mm | 380 mm | 165 mm | 71.5° | 78.0° | 395 mm | 968 mm | 70 mm | 700c |
| 51 | 496 mm | 404 mm | 1.23:1 | 90 mm | 400 mm | 170 mm | 72.0° | 78.0° | 395 mm | 980 mm | 70 mm | 700c |
| 54 | 514 mm | 416 mm | 1.24:1 | 100 mm | 420 mm | 172.5 mm | 72.5° | 78.0° | 395 mm | 994 mm | 68 mm | 700c |
| 56 | 532 mm | 428 mm | 1.24:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 78.0° | 395 mm | 1010 mm | 68 mm | 700c |
| 58 | 550 mm | 440 mm |
No colorway catalog for 2022 yet.
This is the earliest IA year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 1.25:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 78.0° |
| 395 mm |
| 1026 mm |
| 66 mm |
| 700c |
