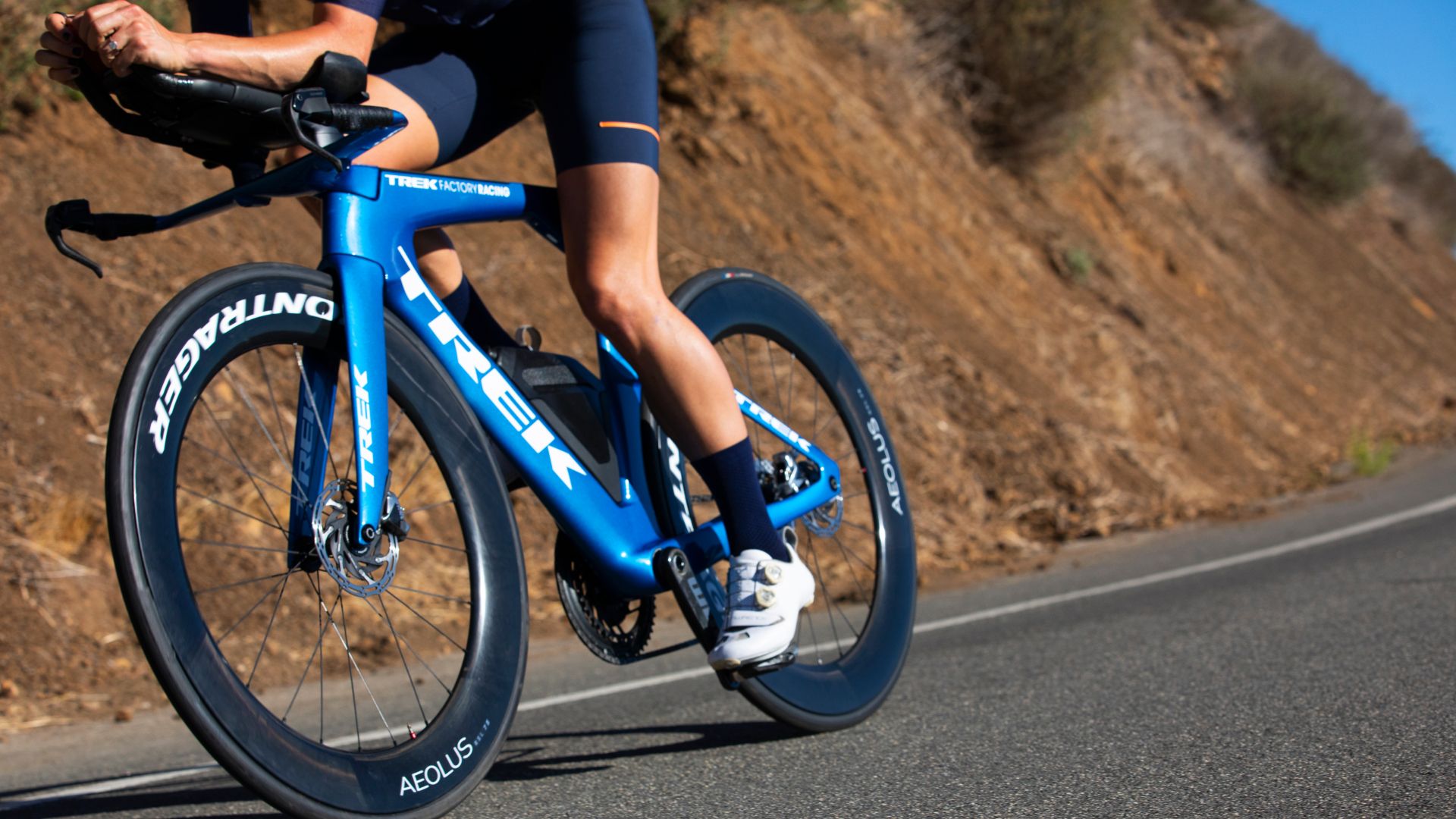

Trek's TT/triathlon bike: extreme stack/reach, integrated storage, and a position that only makes sense in aero bars. Not a road-race twin.
Time trialists and triathletes. Compare to other TT bikes, not to Madone.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 mm | 390 mm | 1.23:1 | 90 mm | 400 mm | 170 mm | 72.0° | 78.0° | 400 mm | 975 mm | 70 mm | 700c |
| M | 500 mm | 405 mm | 1.23:1 | 100 mm | 420 mm | 172.5 mm | 72.5° | 78.0° | 400 mm | 990 mm | 70 mm | 700c |
| L | 520 mm | 420 mm | 1.24:1 | 110 mm | 440 mm | 175 mm | 73.0° | 78.0° | 400 mm | 1008 mm | 68 mm | 700c |
| XL | 545 mm | 435 mm | 1.25:1 | 110 mm | 440 mm | 175 mm | 73.0° | 78.0° | 400 mm | 1028 mm | 68 mm | 700c |
No colorway catalog for 2022 yet.
This is the earliest Speed Concept year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
