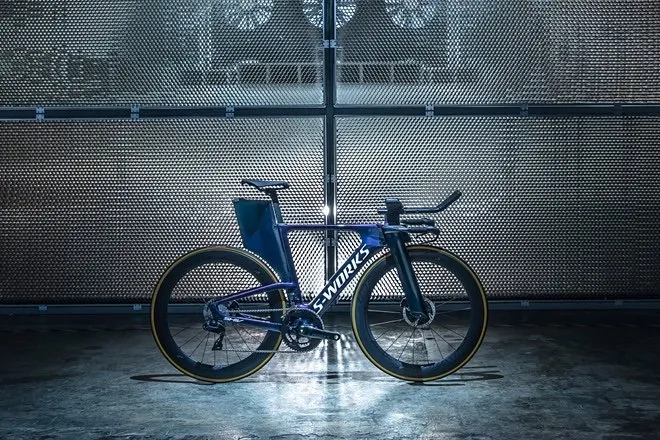

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: tt.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 529 mm | 419 mm | 72.5° | 77.0° | 395 mm | 1007 mm | 70 mm |
| M | 509 mm | 407 mm | 72.0° | 77.0° | 395 mm | 991 mm | 70 mm |
| S | 494 mm | 395 mm | 71.5° | 77.0° | 395 mm | 979 mm | 72 mm |
| XL | 549 mm | 431 mm | 72.5° | 77.0° | 395 mm | 1023 mm | 68 mm |
| XS | 479 mm | 384 mm | 70.5° | 77.0° | 395 mm | 969 mm | 72 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
