Short-travel IsoStrut XC. It pedals like a hardtail until the rear end takes the edge off roots. Not a trail bike.
XC racers who want a little rear travel without a full-suspension trail posture.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 mm | 410 mm | 1.44:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 74.5° | 435 mm | 1113 mm | 46 mm | 29" |
| M | 590 mm | 435 mm | 1.36:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 74.5° | 435 mm | 1138 mm | 46 mm | 29" |
| ML | 590 mm | 450 mm | 1.31:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 74.5° | 435 mm | 1153 mm | 46 mm | 29" |
| L | 599 mm | 465 mm | 1.29:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 74.5° | 435 mm | 1172 mm |

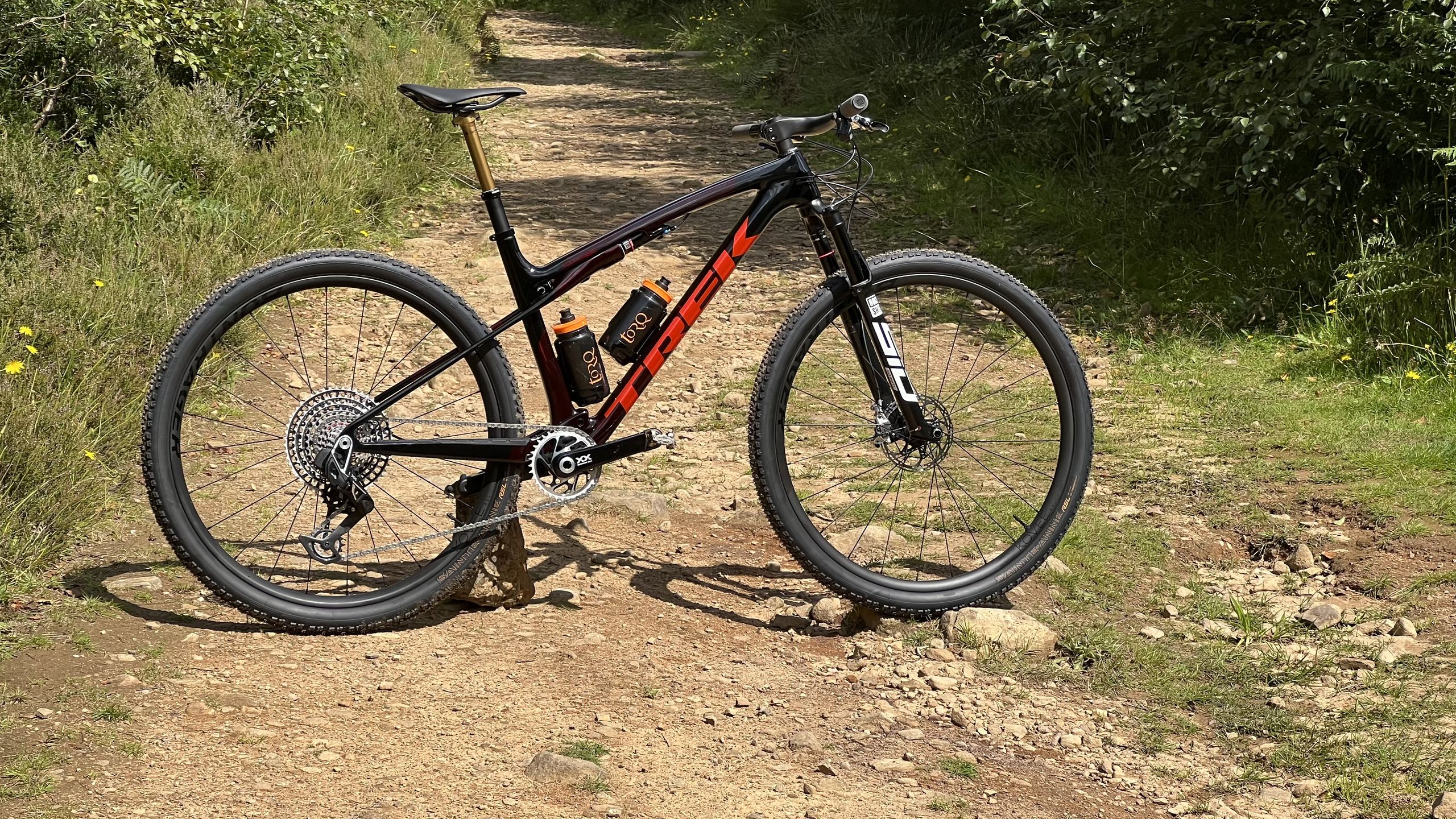

This year's studio shot is year-true studio.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 46 mm |
| 29" |
| XL | 622 mm | 500 mm | 1.24:1 | 50 mm | 800 mm | 175 mm | 145 mm | 67.5° | 74.5° | 435 mm | 1217 mm | 46 mm | 29" |
