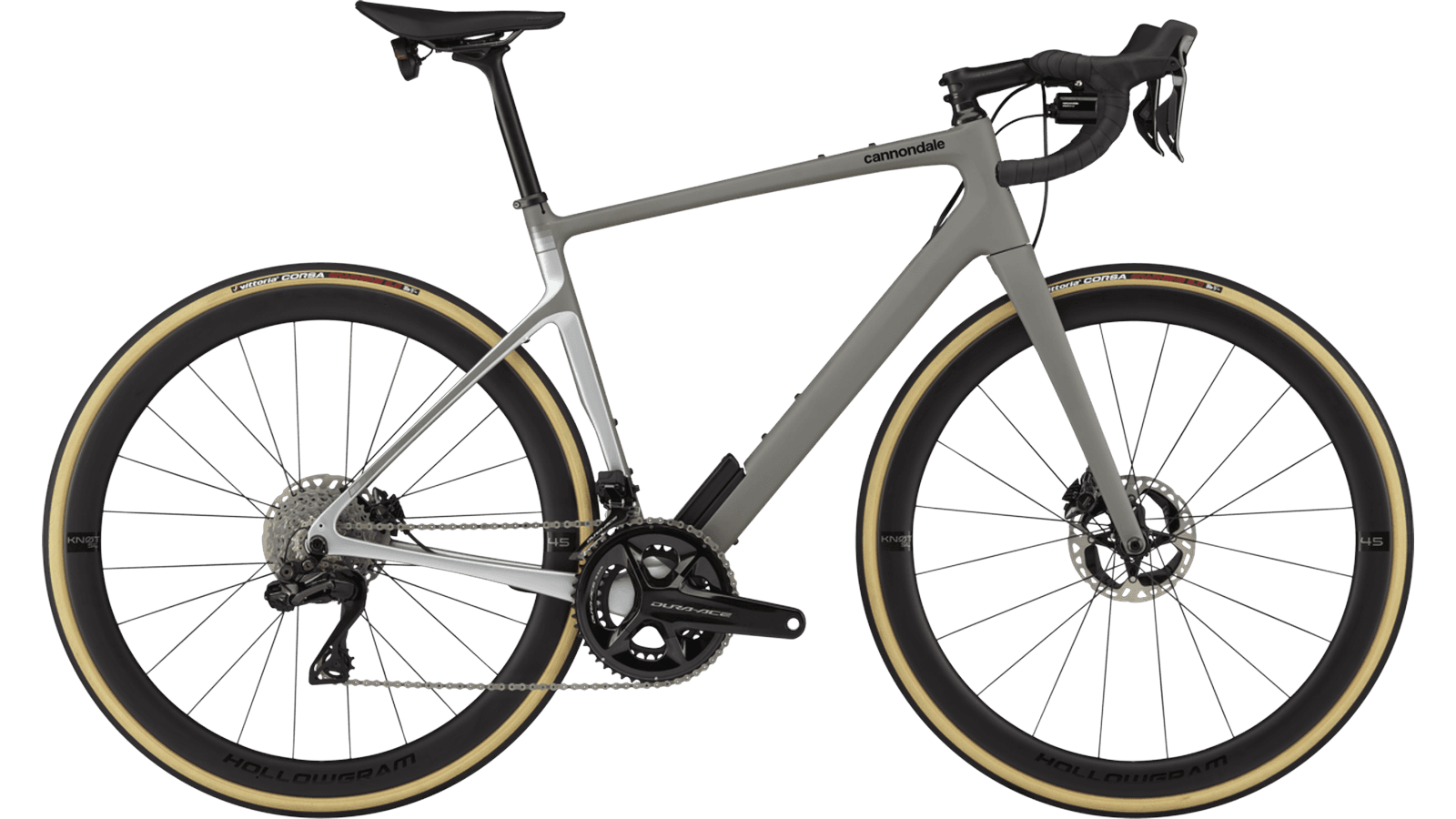

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size 48). Category: road-endurance.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| 48 | 534 mm | 364 mm | 70.8° | 74.3° | 415 mm | 989 mm | 78 mm |
| 51 | 554 mm | 370 mm | 71.3° | 74.0° | 415 mm | 997 mm | 78 mm |
| 54 | 574 mm | 376 mm | 71.8° | 73.7° | 415 mm | 1005 mm | 76 mm |
| 56 | 594 mm | 382 mm | 72.3° | 73.3° | 415 mm | 1015 mm | 76 mm |
| 58 | 614 mm | 388 mm | 72.5° | 73.0° | 415 mm | 1027 mm | 74 mm |
| 61 | 634 mm | 394 mm | 72.8° | 72.7° | 415 mm | 1039 mm | 74 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
