Specialized's gravel all-rounder. Future Shock up front (on many kits), generous tire room, and a position between Crux-race and touring. Recent Diverge 4 years shift clearance and front-end feel.
Gravel riders who want one bike for events and weekends. Racers who want a lower, racier gravel bike should also look at Crux.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 560 mm | 370 mm | 1.51:1 | 80 mm | 380 mm | 165 mm | 70.0° | 74.0° | 425 mm | 1025 mm | 80 mm | 700c |
| 52 | 578 mm | 377 mm | 1.53:1 | 90 mm | 400 mm | 170 mm | 70.5° | 73.7° | 425 mm | 1035 mm | 80 mm | 700c |
| 54 | 595 mm | 383 mm | 1.55:1 | 100 mm | 420 mm | 172.5 mm | 71.0° | 73.5° | 425 mm | 1045 mm | 78 mm | 700c |
| 56 | 612 mm | 390 mm | 1.57:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.2° | 425 mm | 1055 mm | 78 mm | 700c |
| 58 | 632 mm |

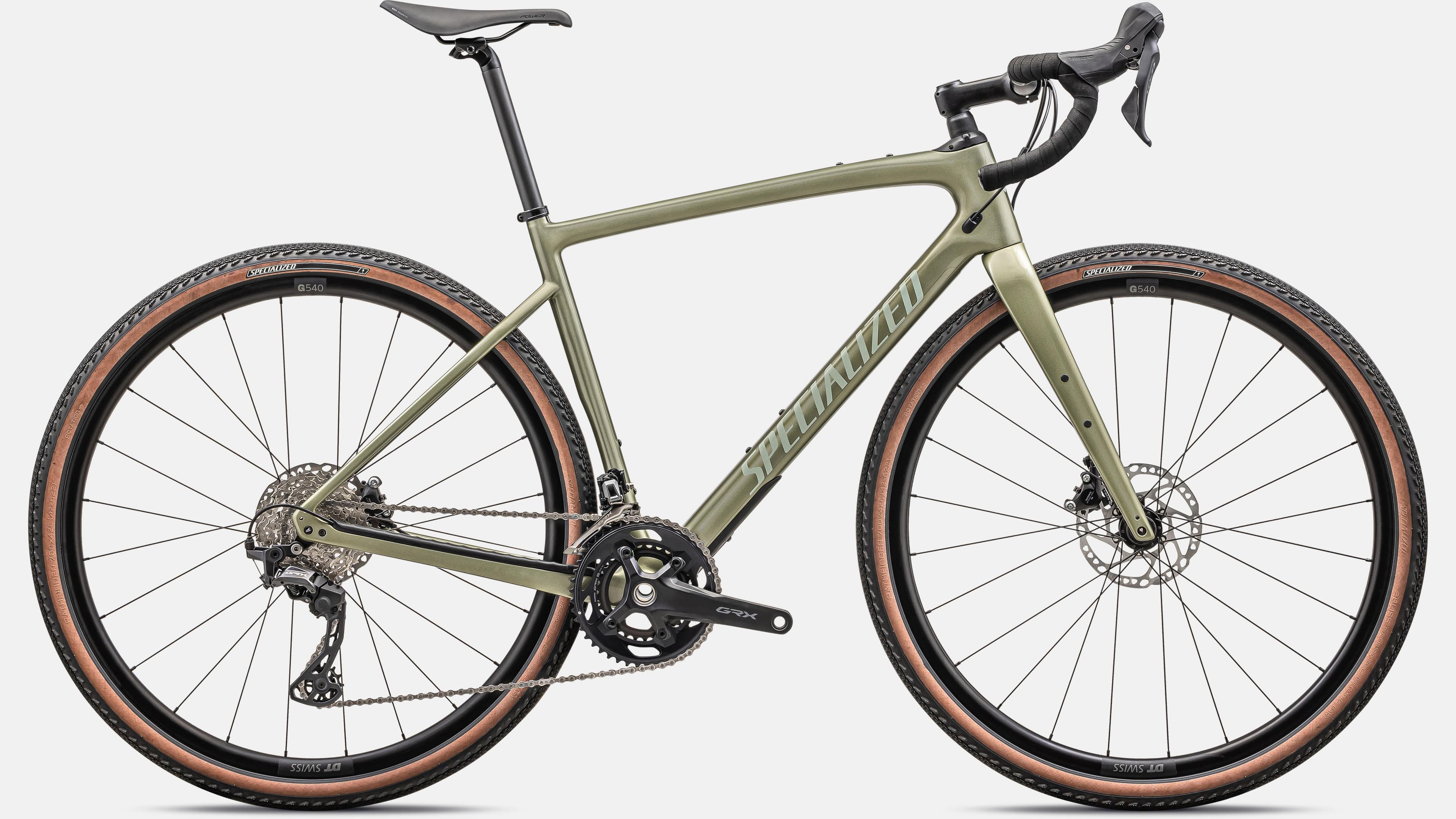

These are the 2022 colors.
This is the earliest Diverge year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
Bike at Bedtime: check out the 2022 Specialized Diverge ...road.cc · 2021
First Ride Review: Specialized Diverge STRroad.cc · 2022
Specialized S-Works Diverge STR and its Rear Future ...Velo · 2022
Specialized Diverge STR Expert first-ride reviewCyclingnews · 2022
The all-new Specialized Diverge STR, a full suspension ...Cycling Weekly · 2022| 397 mm |
| 1.59:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 71.5° |
| 73.0° |
| 428 mm |
| 1068 mm |
| 76 mm |
| 700c |
| 61 | 655 mm | 404 mm | 1.62:1 | 110 mm | 440 mm | 175 mm | 72.0° | 72.8° | 428 mm | 1082 mm | 76 mm | 700c |
