Endurance Cannondale with SmartSense on some kits. Taller stack, calmer than SuperSix, still a road bike rather than Topstone gravel.
All-day road riders who found SuperSix too low.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 535 mm | 365 mm | 1.47:1 | 80 mm | 380 mm | 165 mm | 70.8° | 74.3° | 415 mm | 990 mm | 78 mm | 700c |
| 51 | 555 mm | 371 mm | 1.50:1 | 90 mm | 400 mm | 170 mm | 71.3° | 74.0° | 415 mm | 998 mm | 78 mm | 700c |
| 54 | 575 mm | 377 mm | 1.53:1 | 100 mm | 420 mm | 172.5 mm | 71.8° | 73.7° | 415 mm | 1006 mm | 76 mm | 700c |
| 56 | 595 mm | 383 mm | 1.55:1 | 100 mm | 420 mm | 172.5 mm | 72.3° | 73.3° | 415 mm | 1016 mm | 76 mm | 700c |
| 58 | 615 mm |

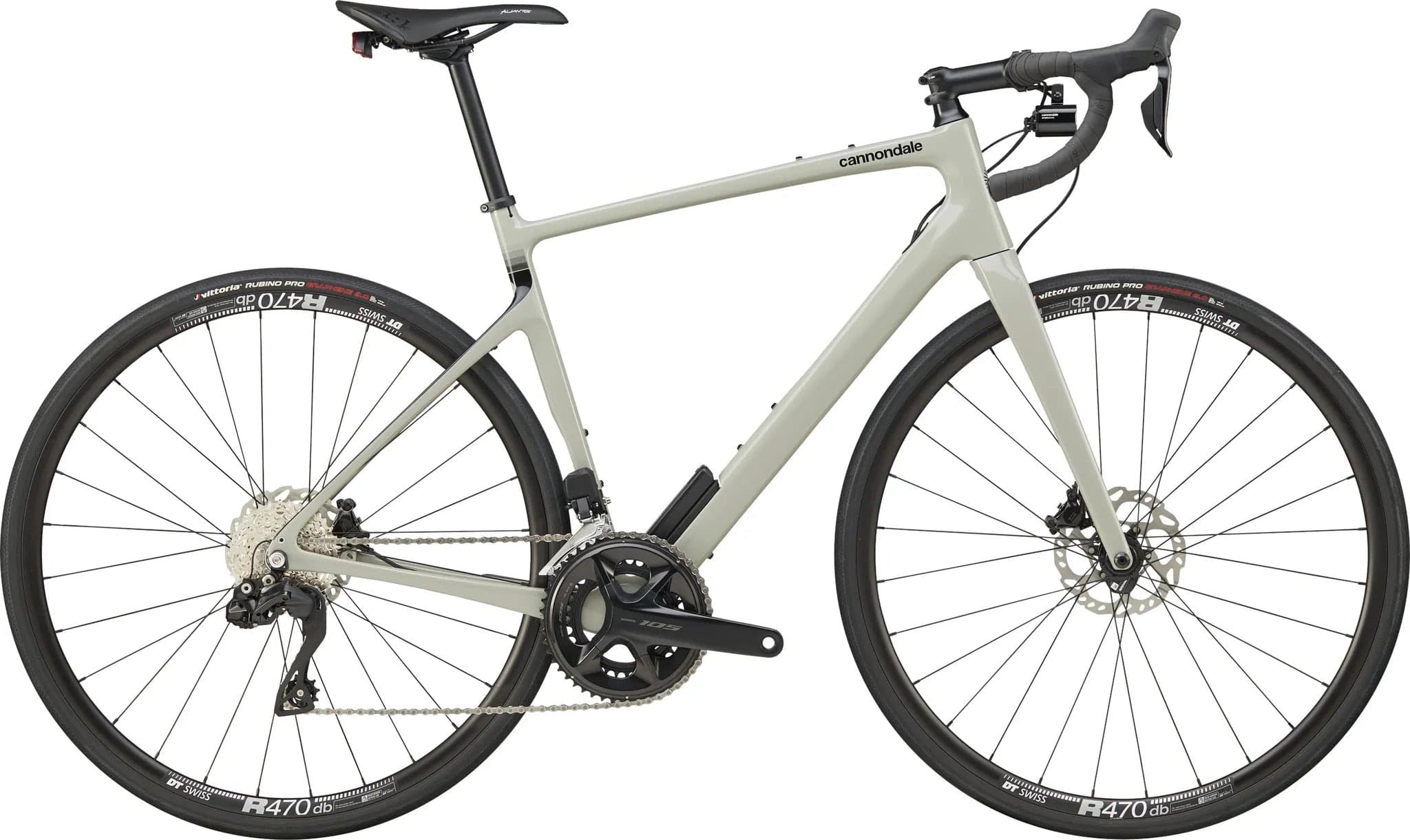

This year's studio shot is year-true studio.
Same published geometry as 2023.
No verified spec sheet for 2024 or 2023.
No launch MSRP in the catalog yet.
Compare 2024 and 2023 Cannondale Synapse Carbon side by side
| 389 mm |
| 1.58:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.5° |
| 73.0° |
| 415 mm |
| 1028 mm |
| 74 mm |
| 700c |
| 61 | 635 mm | 395 mm | 1.61:1 | 110 mm | 440 mm | 175 mm | 72.8° | 72.7° | 415 mm | 1040 mm | 74 mm | 700c |
