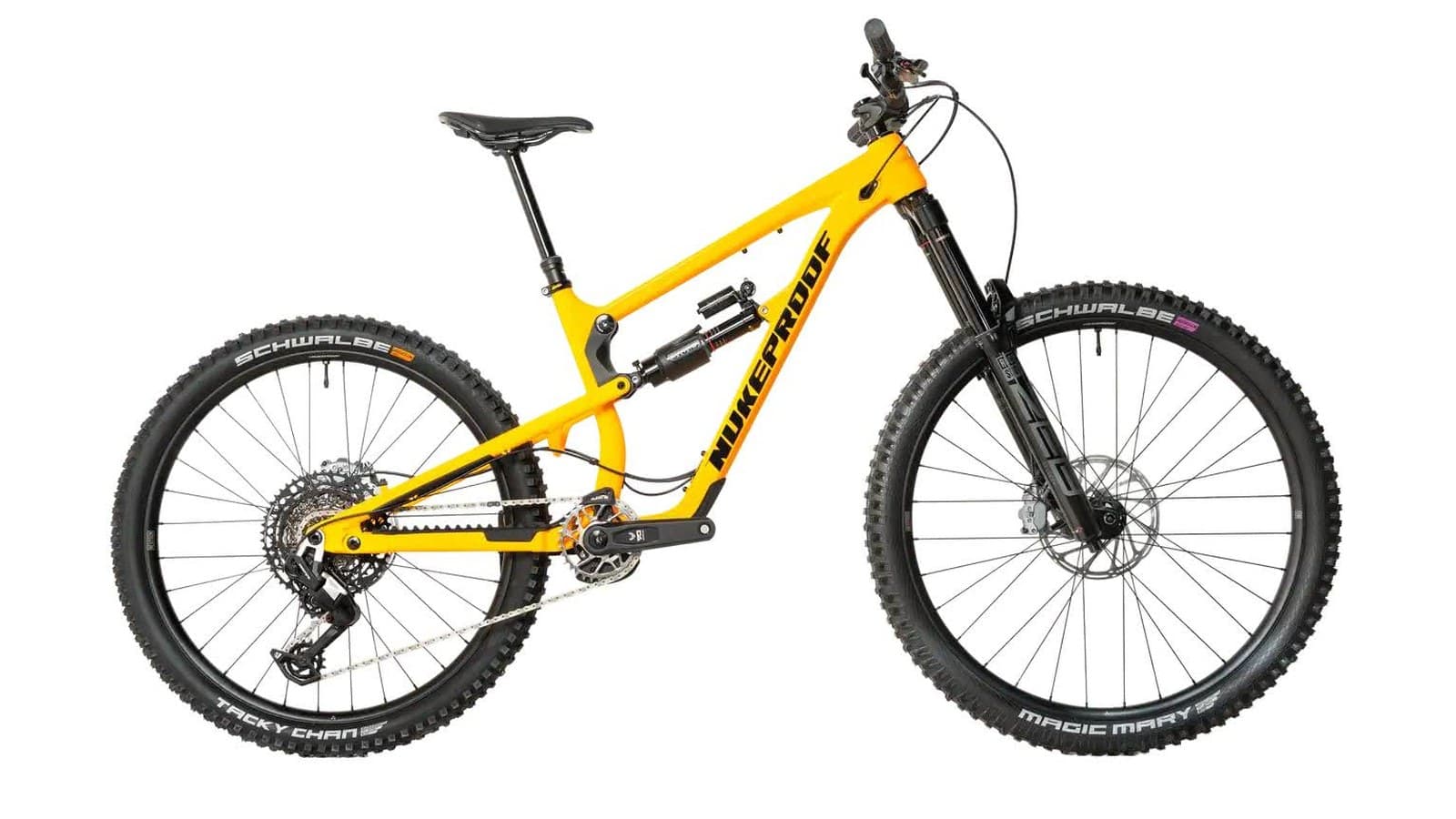

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: mtb-enduro.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 633 mm | 484 mm | 64.5° | 77.0° | 440 mm | 1261 mm | 28 mm |
| M | 623 mm | 459 mm | 64.5° | 77.0° | 440 mm | 1234 mm | 28 mm |
| S | 613 mm | 434 mm | 64.5° | 77.0° | 440 mm | 1207 mm | 28 mm |
| XL | 647 mm | 509 mm | 64.5° | 77.0° | 440 mm | 1291 mm | 28 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
