Loading geometry
The first S-sizing Stumpjumper: six frame lengths from S1 to S6 with short seat tubes, so reach and wheelbase pick your size instead of your inseam. Travel dropped to 130 mm rear behind a 140 mm fork, leaving the longer stuff to the EVO.
Trail riders who want one Specialized and are willing to size by reach. Enduro-curious riders should look at Stumpjumper EVO or Enduro; XC racers at Epic.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 608 mm | 415 mm | 1.47:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1170 mm | 40 mm | 29" |
| S2 | 618 mm | 435 mm | 1.42:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1192 mm | 40 mm | 29" |
| S3 | 628 mm | 455 mm | 1.38:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1215 mm | 40 mm | 29" |
| S4 | 638 mm | 480 mm | 1.33:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1242 mm |

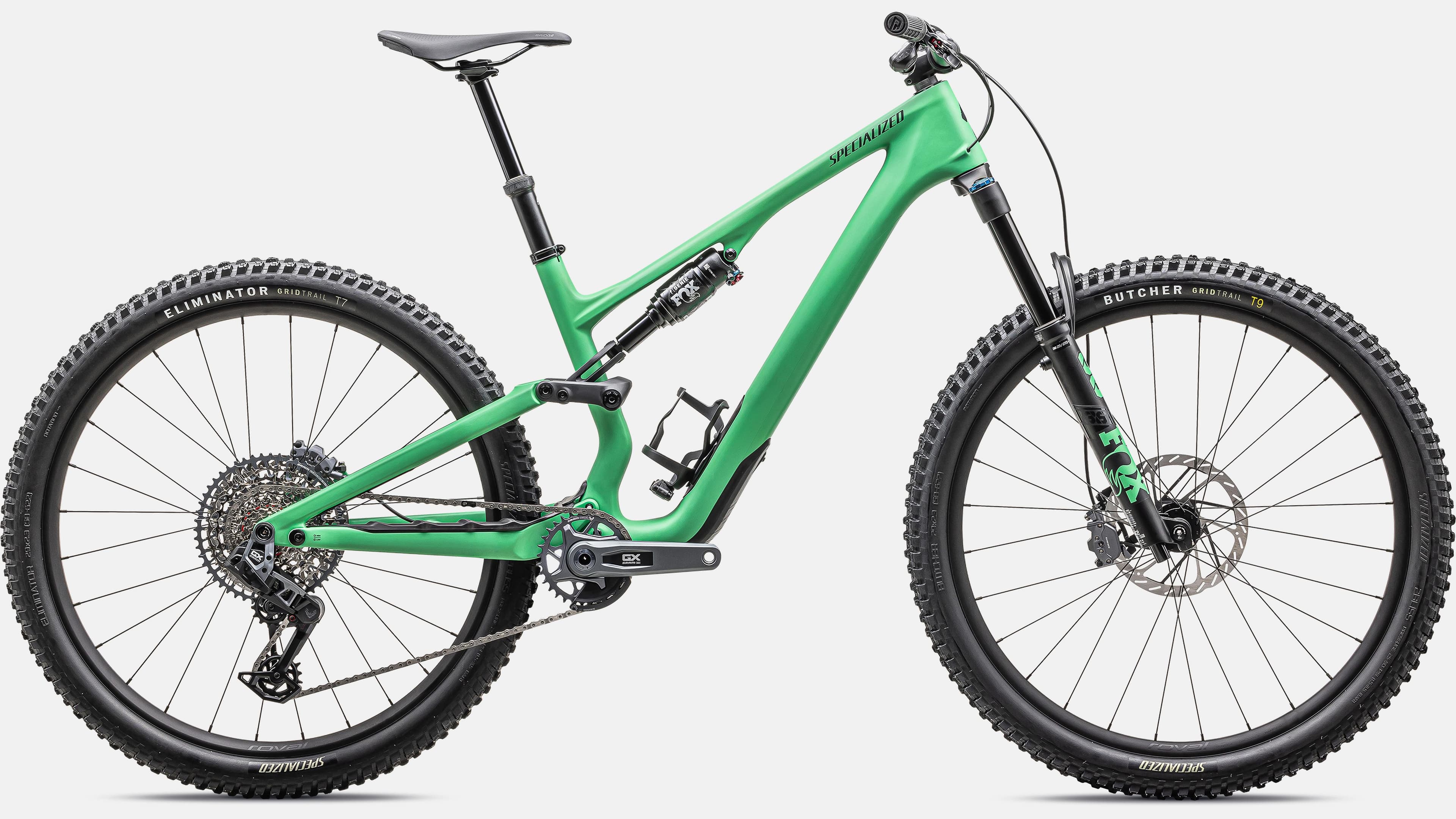

This year's studio shot is year-true studio.
This is the earliest Stumpjumper year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
Specialized Stumpjumper EVO S-Works – In our 2022 trail ...ENDURO Mountainbike Magazine · 2022
2022 Specialized Stumpjumper EVO Elite Alloy - ReviewNSMB · 2022
2022 Specialized Stumpjumper Review | A superb ...Flow Mountain Bike · 2022
Specialized Stumpjumper Evo Comp reviewBike Perfect · 2022
2022 Specialized Stumpjumper Comp reviewBikeRadar · 2022| 40 mm |
| 29" |
| S5 | 648 mm | 505 mm | 1.28:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1269 mm | 40 mm | 29" |
| S6 | 658 mm | 530 mm | 1.24:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1296 mm | 40 mm | 29" |
