Loading geometry
The mixed-wheel rowdy Santa Cruz. More travel and slack than Hightower, still not a Nomad DH-adjacent bike.
Aggressive trail and light enduro riders.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 599 mm | 420 mm | 1.43:1 | 50 mm | 800 mm | 175 mm | 190 mm | 64.2° | 77.6° | 438 mm | 1188 mm | 28 mm | 29" |
| S | 623 mm | 435 mm | 1.43:1 | 50 mm | 800 mm | 175 mm | 190 mm | 64.2° | 77.6° | 438 mm | 1215 mm | 28 mm | 29" |
| M | 632 mm | 460 mm | 1.37:1 | 50 mm | 800 mm | 175 mm | 190 mm | 64.2° | 77.9° | 438 mm | 1238 mm | 28 mm | 29" |
| L | 641 mm | 480 mm | 1.34:1 | 50 mm | 800 mm | 175 mm | 190 mm | 64.2° | 78.2° | 438 mm | 1261 mm |

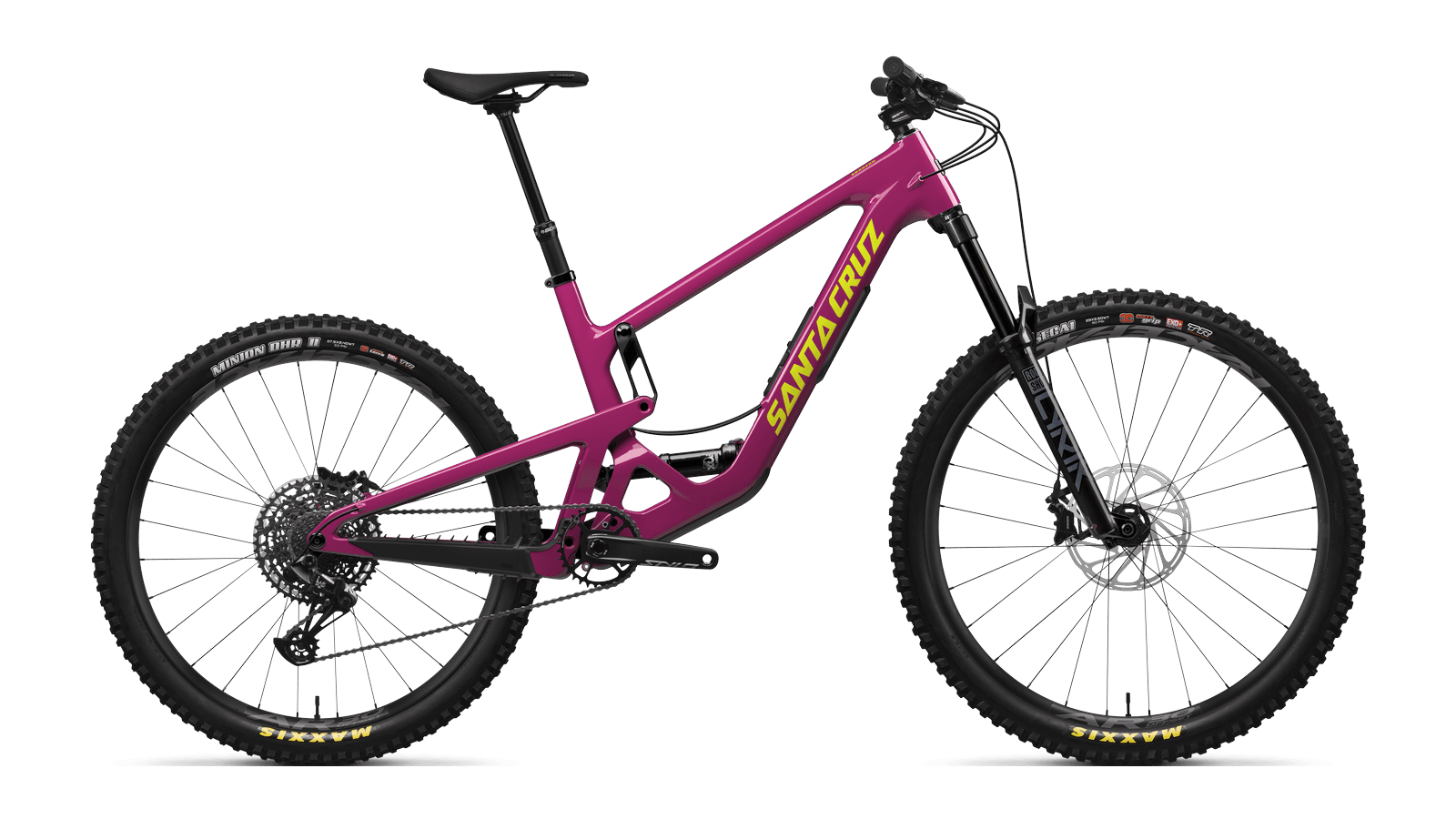

This year's studio shot is C R Kalimotxo.
Same published geometry as 2024.
No verified spec sheet for 2025 or 2024.
No launch MSRP in the catalog yet.
| 28 mm |
| 29" |
| XL | 659 mm | 500 mm | 1.32:1 | 50 mm | 800 mm | 175 mm | 190 mm | 64.2° | 78.3° | 438 mm | 1293 mm | 28 mm | 29" |
