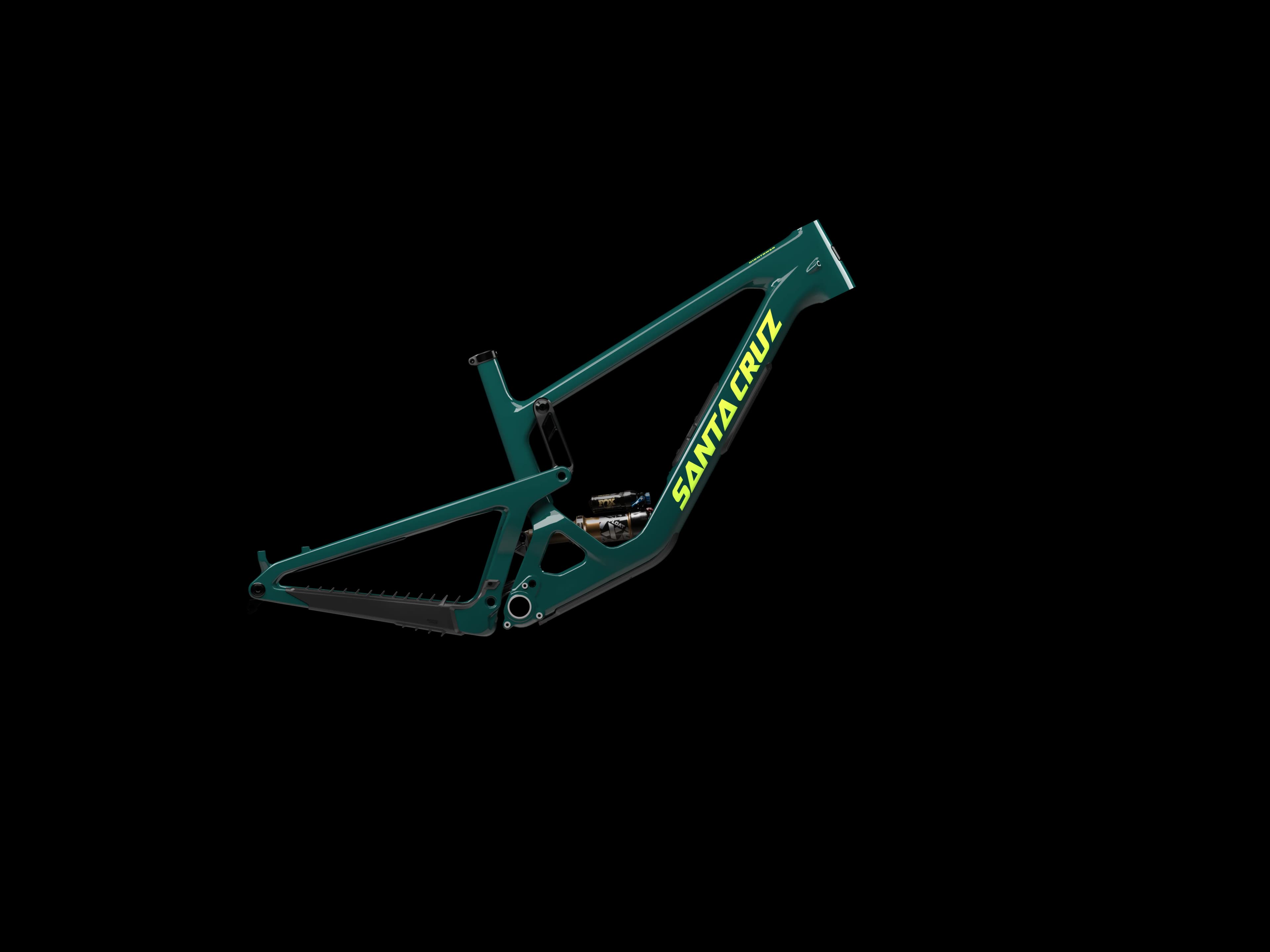

The big-wheeled trail Santa Cruz. VPP, mixed or 29, and the 'one bike' brief in the line — more travel than Tallboy, less than Bronson/Nomad.
Trail riders who want a do-everything Santa Cruz. 5010 is the playful 27.5 sibling; Tallboy is the quicker 29er.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Top tube | Seat tube | Head tube | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 mm | 435 mm | 1.43:1 | 50 mm | 800 mm | 175 mm | 170 mm | 575 mm | 380 mm | 100 mm | 64.2° | 77.6° | 434 mm | 1176 mm | 33 mm | 29" |
| M | 634 mm | 460 mm | 1.38:1 | 50 mm | 800 mm | 175 mm | 170 mm | 603 mm | 405 mm | 110 mm | 64.2° | 77.9° | 436 mm | 1237 mm | 33 mm | 29" |
| L | 643 mm | 480 mm | 1.34:1 | 50 mm | 800 mm | 175 mm | 170 mm | 630 mm | 430 mm | 120 mm | 64.2° | 78.2° | 439 mm | 1264 mm | 33 mm | 29" |
These are the 2025 colors. No 2024 palette to compare.
Same published geometry as 2024.
No verified spec sheet for 2025 or 2024.
No launch MSRP in the catalog yet.
| XL |
| 661 mm |
| 500 mm |
| 1.32:1 |
| 50 mm |
| 800 mm |
| 175 mm |
| 170 mm |
| 660 mm |
| 460 mm |
| 140 mm |
| 64.2° |
| 78.3° |
| 442 mm |
| 1296 mm |
| 33 mm |
| 29" |
| XXL | 670 mm | 525 mm | 1.28:1 | 50 mm | 800 mm | 175 mm | 170 mm | 690 mm | 490 mm | 160 mm | 64.2° | 78.4° | 445 mm | 1328 mm | 33 mm | 29" |
