Dartmoor Primal 2024 Geometry, Reviews, and Specs

No OEM studio shot for this model yet.

Fit and steering

Aggressive fitSlow steeringFast steeringRelaxed fit

Weight—

Climbing10.0

Aero0.0

Comfort0.0

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Dropper	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
S	610 mm	426 mm	1.43:1	50 mm	800 mm	175 mm	170 mm	65.5°	75.5°	425 mm	1168 mm	52 mm	29"
M	620 mm	451 mm	1.37:1	50 mm	800 mm	175 mm	170 mm	65.5°	75.5°	425 mm	1195 mm	52 mm	29"
L	630 mm	476 mm	1.32:1	50 mm	800 mm	175 mm	170 mm	65.5°	75.5°	425 mm	1222 mm	52 mm	29"
XL	644 mm	501 mm	1.29:1	50 mm	800 mm	175 mm	170 mm	65.5°	75.5°	425 mm	1252 mm

No colorway catalog for 2024 yet.

Same published geometry as 2023.

Published geometry matches the 2023 Dartmoor Primal. Same sizes, same stack and reach.

No verified spec sheet for 2024 or 2023.

No launch MSRP in the catalog yet.

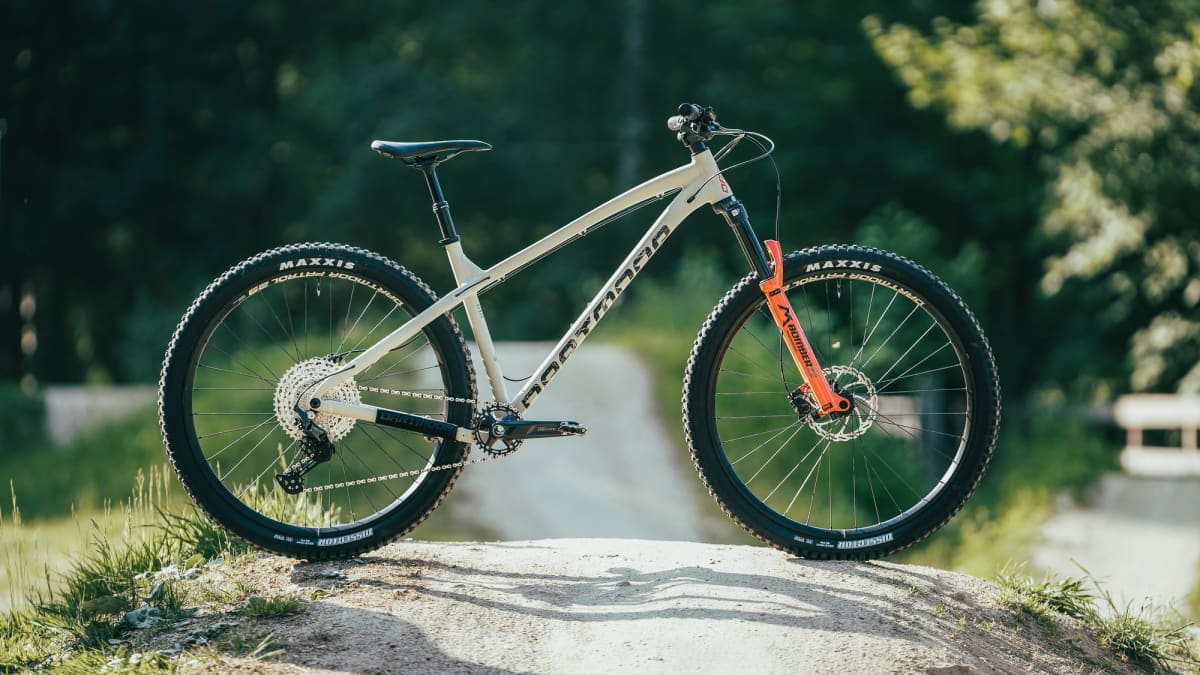

Trail hardtails up to 1999 euros: Dartmoor Primal Pro 29 on ...BIKE · 2023
