Giant's gravel bike: stable, mounts, and a position between Defy and a race gravel whip. The X variants add more suspension/travel attitude.
Gravel riders who want Giant's drop-bar all-road, not a TCR with knobbies.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 548 mm | 381 mm | 1.44:1 | 80 mm | 380 mm | 165 mm | 70.5° | 73.5° | 425 mm | 1020 mm | 80 mm | 700c |
| S | 560 mm | 387 mm | 1.45:1 | 90 mm | 400 mm | 170 mm | 70.8° | 73.5° | 425 mm | 1028 mm | 80 mm | 700c |
| M | 576 mm | 392 mm | 1.47:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 425 mm | 1036 mm | 80 mm | 700c |
| ML | 592 mm | 397 mm | 1.49:1 | 100 mm | 420 mm | 172.5 mm | 71.8° | 73.0° | 425 mm | 1044 mm | 80 mm | 700c |
| L | 610 mm |

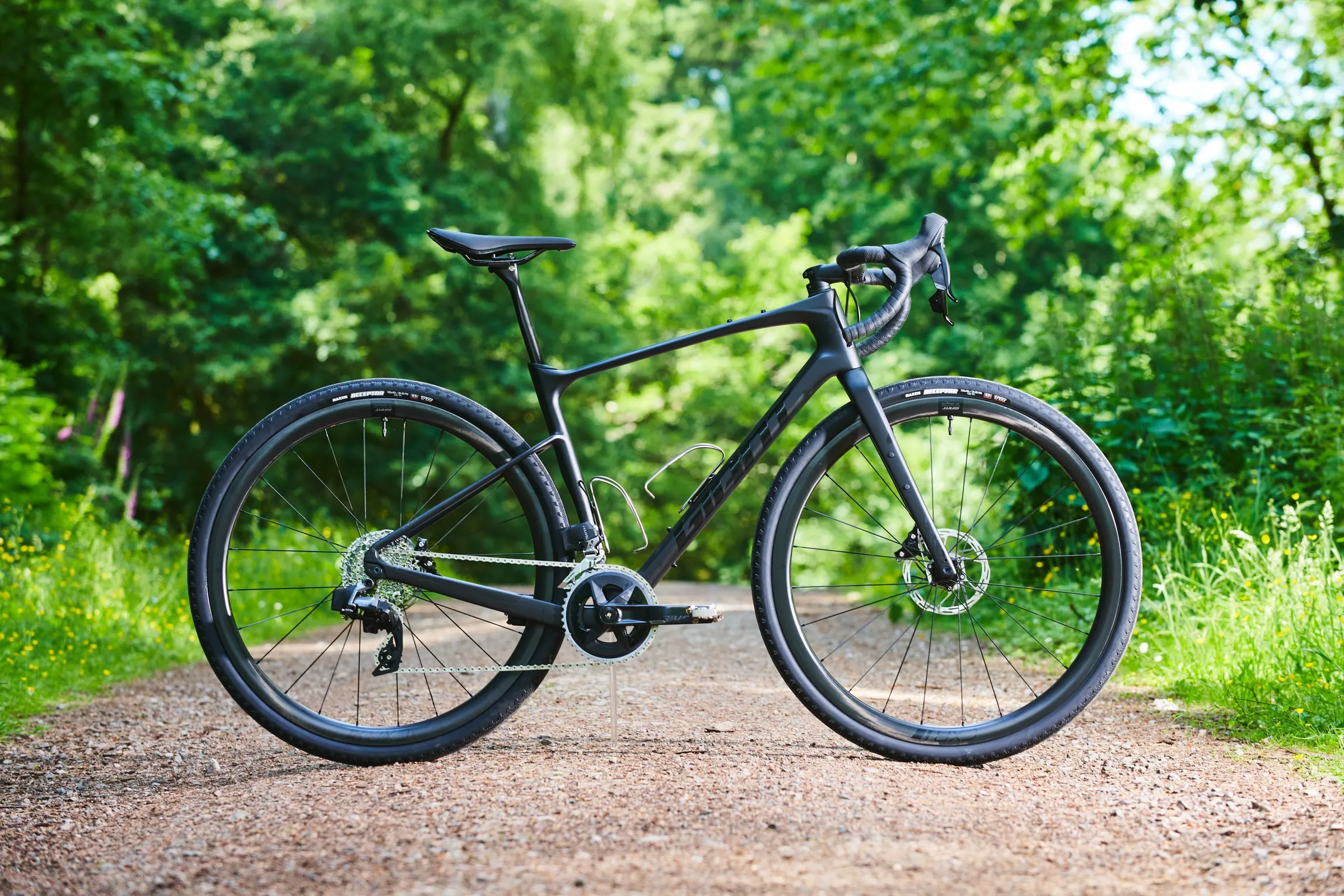

This year's studio shot is year-true studio.
This is the earliest Revolt Advanced year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 406 mm |
| 1.50:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 71.8° |
| 73.0° |
| 425 mm |
| 1058 mm |
| 80 mm |
| 700c |
| XL | 626 mm | 412 mm | 1.52:1 | 110 mm | 440 mm | 175 mm | 72.0° | 72.5° | 425 mm | 1070 mm | 80 mm | 700c |
