Liv endurance road: taller, calmer, all-day. The Defy analog in the Liv line.
Endurance and sportive riders who want Liv's fit, not Langma's race position.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 520 mm | 350 mm | 1.49:1 | 70 mm | 360 mm | 165 mm | 70.5° | 74.5° | 420 mm | 990 mm | 75 mm | 700c |
| XS | 535 mm | 357 mm | 1.50:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.0° | 420 mm | 998 mm | 75 mm | 700c |
| S | 555 mm | 364 mm | 1.52:1 | 90 mm | 400 mm | 170 mm | 71.5° | 74.0° | 420 mm | 1008 mm | 75 mm | 700c |
| M | 575 mm | 370 mm | 1.55:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.5° | 420 mm | 1015 mm | 75 mm | 700c |
| L | 595 mm |

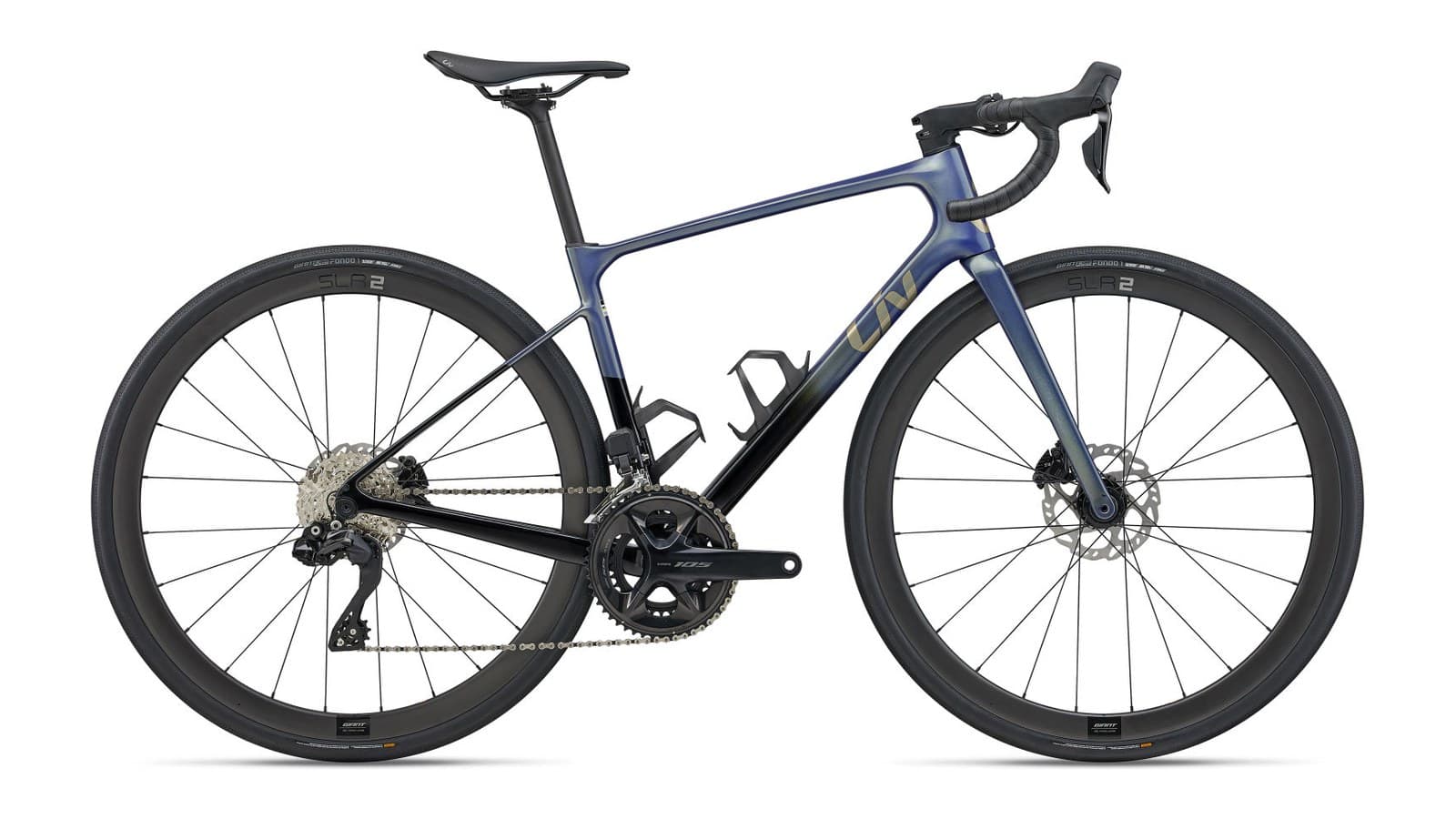

This year's studio shot is Advanced 0 Interstellar.
Same published geometry as 2024.
No verified spec sheet for 2025 or 2024.
No launch MSRP in the catalog yet.
| 376 mm |
| 1.58:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.5° |
| 73.0° |
| 420 mm |
| 1022 mm |
| 75 mm |
| 700c |
