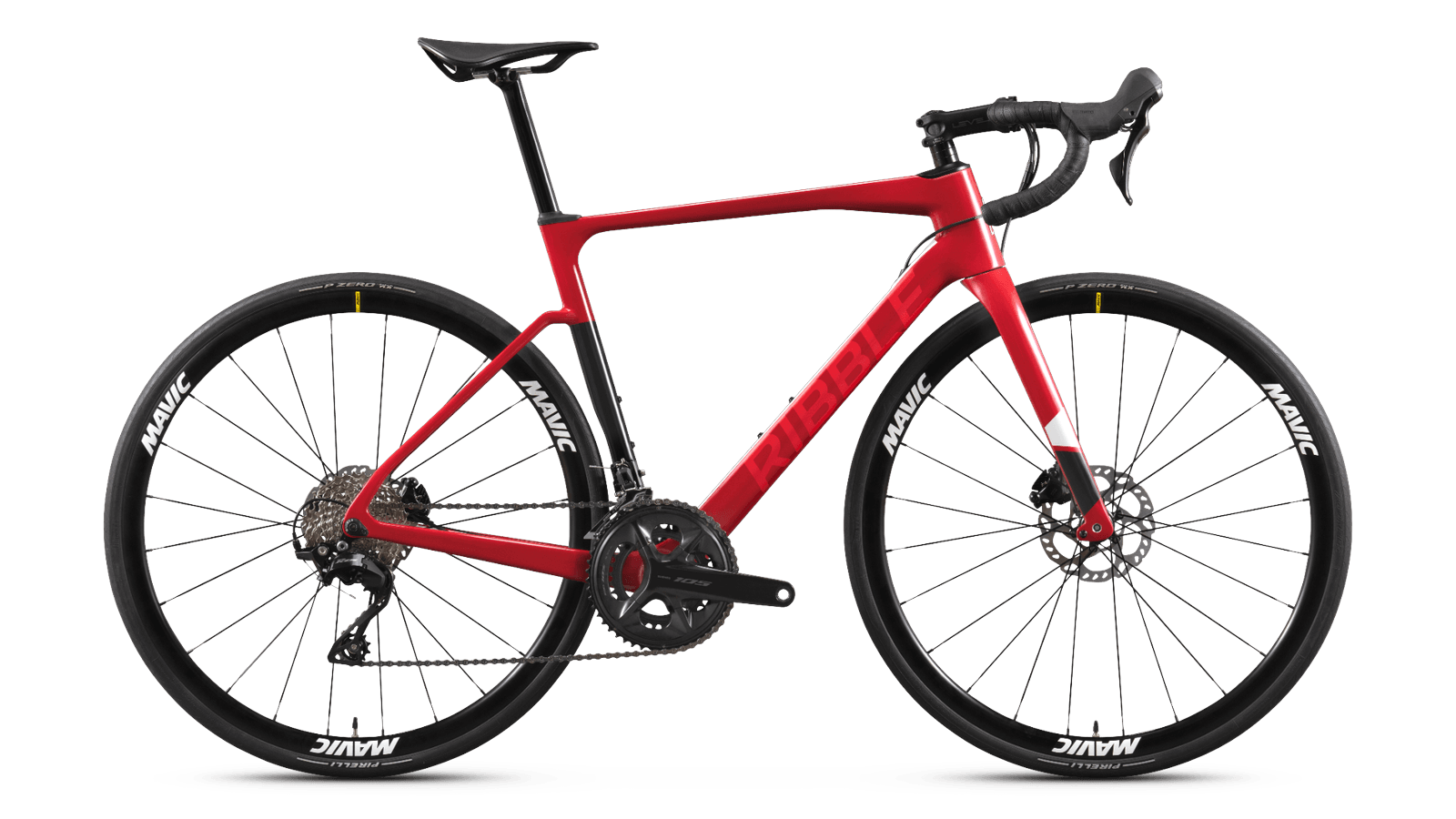

Ribble endurance road: extra stack, all-day, the calmer sibling to SL R / Ultra race bikes. Direct-to-consumer spec is the point.
Sportive riders shopping Ribble. SL R if you want race geometry.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 mm | 368 mm | 1.46:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.0° | 415 mm | 994 mm | 75 mm | 700c |
| S | 554 mm | 374 mm | 1.48:1 | 90 mm | 400 mm | 170 mm | 71.5° | 73.5° | 415 mm | 1002 mm | 75 mm | 700c |
| M | 572 mm | 380 mm | 1.51:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.5° | 415 mm | 1010 mm | 73 mm | 700c |
| L | 590 mm | 386 mm | 1.53:1 | 110 mm | 440 mm | 175 mm | 72.5° | 73.0° | 415 mm | 1020 mm | 73 mm | 700c |
| XL | 608 mm | 392 mm |
No colorway catalog for 2018 yet.
Same published geometry as 2017.
No verified spec sheet for 2018 or 2017.
No launch MSRP in the catalog yet.
We couldn't find any reviews for this model year.
| 1.55:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.8° |
| 73.0° |
| 415 mm |
| 1032 mm |
| 71 mm |
| 700c |
