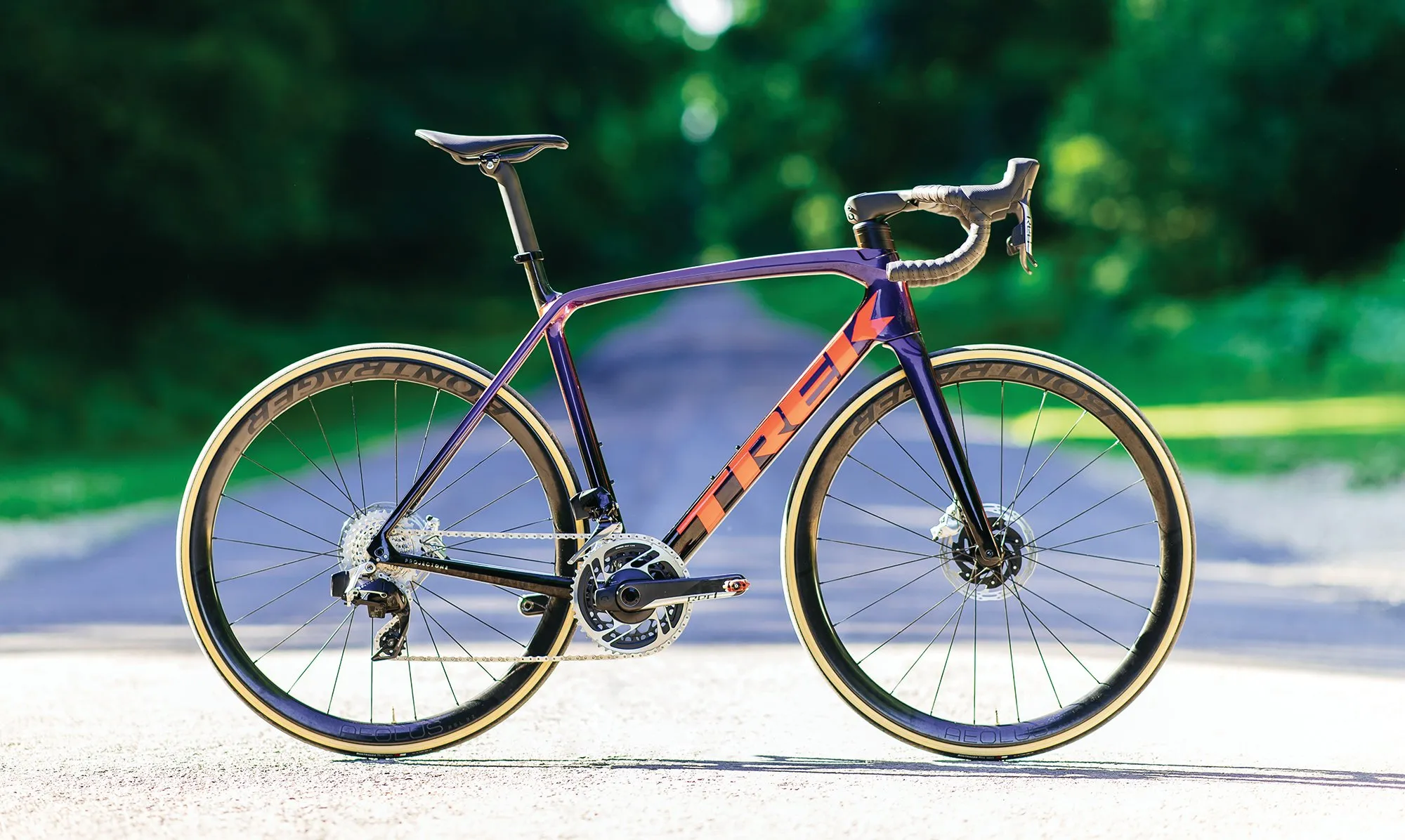

The lightweight Trek race bike of the 2010s–early 2020s: rounder tubes than the Madone, a sharp climb, and less aero drama. Later years sit close to Madone numbers.
Climbers and riders who bought Trek for weight before the Madone absorbed this brief. Compare stack/reach to the Madone SLR on current years.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 512 mm | 366 mm | 1.40:1 | 70 mm | 360 mm | 165 mm | 71.0° | 74.6° | 410 mm | 974 mm | 72 mm | 700c |
| 50 | 527 mm | 371 mm | 1.42:1 | 80 mm | 380 mm | 165 mm | 72.1° | 74.2° | 410 mm | 976 mm | 72 mm | 700c |
| 52 | 541 mm | 376 mm | 1.44:1 | 90 mm | 400 mm | 170 mm | 72.8° | 74.0° | 410 mm | 979 mm | 72 mm | 700c |
| 54 | 555 mm | 381 mm | 1.46:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.7° | 410 mm | 983 mm | 70 mm | 700c |
| 56 | 570 mm | 387 mm |
These are the 2022 colors.
This is the earliest Emonda SL year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 1.47:1 |
| 100 mm |
| 420 mm |
| 172.5 mm |
| 73.5° |
| 73.3° |
| 410 mm |
| 990 mm |
| 70 mm |
| 700c |
| 58 | 589 mm | 393 mm | 1.50:1 | 110 mm | 440 mm | 175 mm | 73.8° | 73.0° | 412 mm | 1002 mm | 68 mm | 700c |
| 60 | 608 mm | 399 mm | 1.52:1 | 110 mm | 440 mm | 175 mm | 73.9° | 72.8° | 412 mm | 1012 mm | 68 mm | 700c |
| 62 | 626 mm | 404 mm | 1.55:1 | 110 mm | 440 mm | 175 mm | 73.9° | 72.5° | 414 mm | 1023 mm | 68 mm | 700c |
