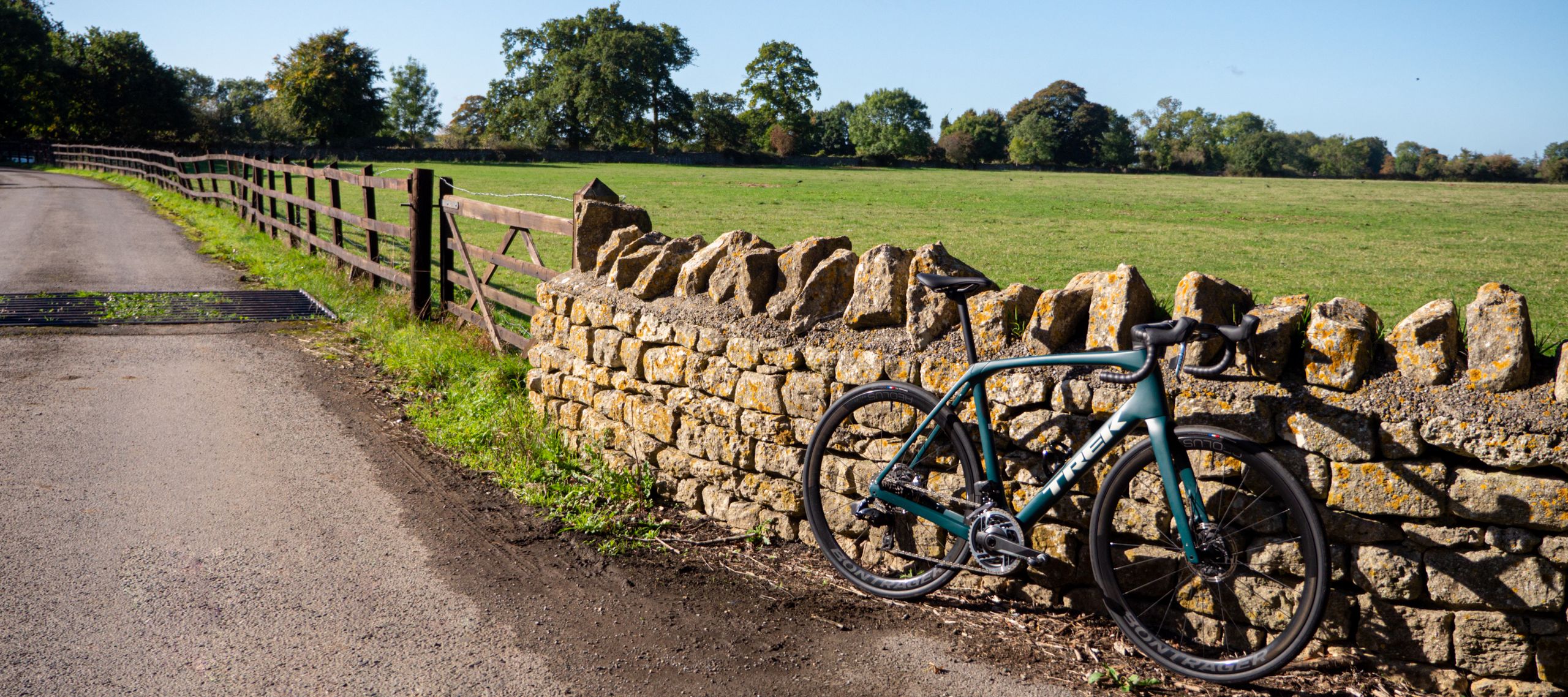

IsoSpeed endurance geometry: taller stack, longer wheelbase, and a rear end that takes the sting out of cobbles and chipseal. Still a road bike, not a Checkpoint.
All-day road riders, gran fondo people, and anyone who found Madone/Émonda too low.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 527 mm | 360 mm | 1.46:1 | 70 mm | 360 mm | 165 mm | 70.0° | 74.5° | 420 mm | 995 mm | 80 mm | 700c |
| 49 | 547 mm | 367 mm | 1.49:1 | 80 mm | 380 mm | 165 mm | 71.1° | 74.1° | 420 mm | 1002 mm | 80 mm | 700c |
| 52 | 568 mm | 372 mm | 1.53:1 | 90 mm | 400 mm | 170 mm | 71.7° | 73.7° | 420 mm | 1008 mm | 80 mm | 700c |
| 54 | 586 mm | 376 mm | 1.56:1 | 100 mm | 420 mm | 172.5 mm | 72.1° | 73.4° | 420 mm | 1013 mm | 78 mm | 700c |
| 56 | 605 mm |
Same OEM palette as 2022.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 381 mm |
| 1.59:1 |
| 100 mm |
| 420 mm |
| 172.5 mm |
| 72.5° |
| 73.1° |
| 420 mm |
| 1020 mm |
| 78 mm |
| 700c |
| 58 | 625 mm | 386 mm | 1.62:1 | 110 mm | 440 mm | 175 mm | 72.8° | 72.8° | 422 mm | 1032 mm | 76 mm | 700c |
| 61 | 648 mm | 391 mm | 1.66:1 | 110 mm | 440 mm | 175 mm | 73.0° | 72.5° | 422 mm | 1044 mm | 76 mm | 700c |
