The older enduro/all-mountain Trek before Slash fully took that brief. Steeper and shorter-reach than a modern Slash, depending on year.
Riders on 2010s Trek enduro geometry. For current long-travel, look at Slash.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 mm | 425 mm | 1.44:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 75.5° | 435 mm | 1188 mm | 32 mm | 29" |
| M | 622 mm | 450 mm | 1.38:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 75.5° | 435 mm | 1215 mm | 32 mm | 29" |
| L | 632 mm | 475 mm | 1.33:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 75.5° | 435 mm | 1242 mm | 32 mm | 29" |
| XL | 646 mm | 500 mm | 1.29:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 75.5° | 435 mm | 1272 mm |

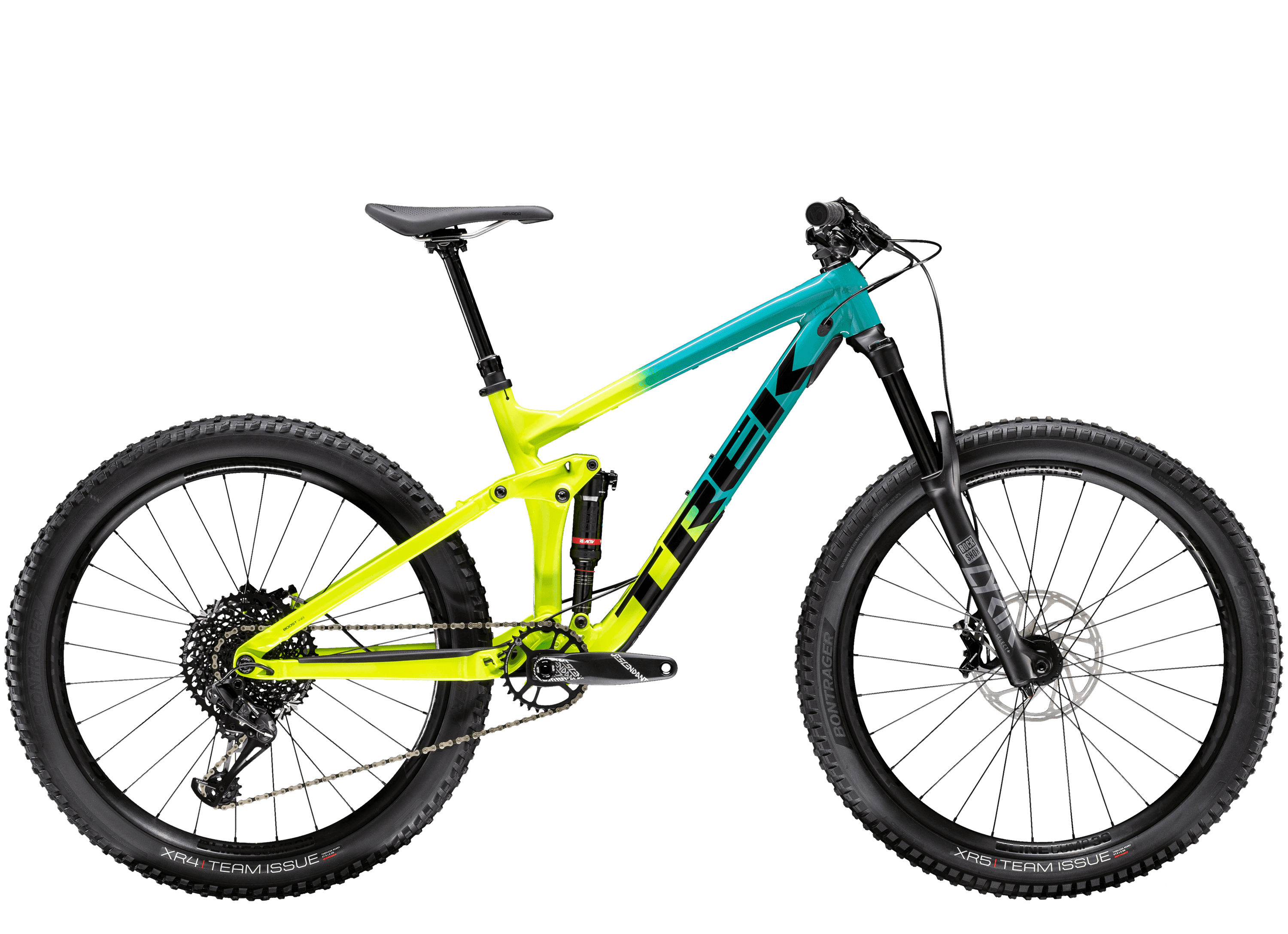

This year's studio shot is year-true studio.
Same published geometry as 2019.
No verified spec sheet for 2020 or 2019.
No launch MSRP in the catalog yet.
| 32 mm |
| 29" |
