Loading geometry

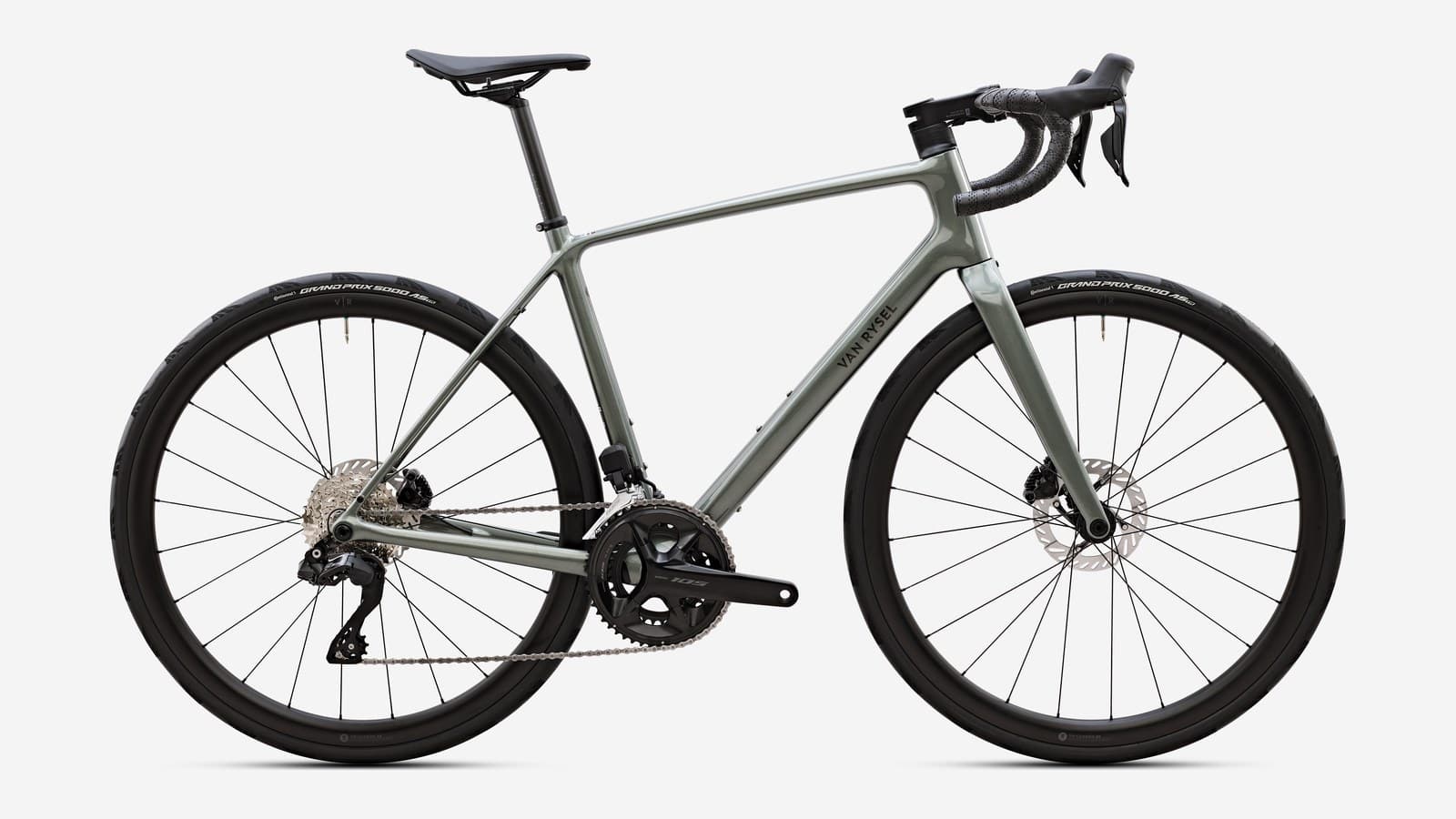

Decathlon Van Rysel's endurance road: extra stack, all-day, the calmer sibling to RCR.
Sportive riders shopping Decathlon. RCR if you want race geometry; GRVL for gravel.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 mm | 366 mm | 1.45:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.0° | 415 mm | 992 mm | 75 mm | 700c |
| S | 550 mm | 372 mm | 1.48:1 | 90 mm | 400 mm | 170 mm | 71.5° | 73.5° | 415 mm | 1000 mm | 75 mm | 700c |
| M | 568 mm | 378 mm | 1.50:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.5° | 415 mm | 1008 mm | 73 mm | 700c |
| L | 586 mm | 384 mm | 1.53:1 | 110 mm | 440 mm | 175 mm | 72.5° | 73.0° | 415 mm | 1018 mm | 73 mm | 700c |
| XL | 604 mm | 390 mm |
No colorway catalog for 2025 yet.
Same published geometry as 2024.
No verified spec sheet for 2025 or 2024.
No launch MSRP in the catalog yet.
| 1.55:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.8° |
| 73.0° |
| 415 mm |
| 1030 mm |
| 71 mm |
| 700c |
