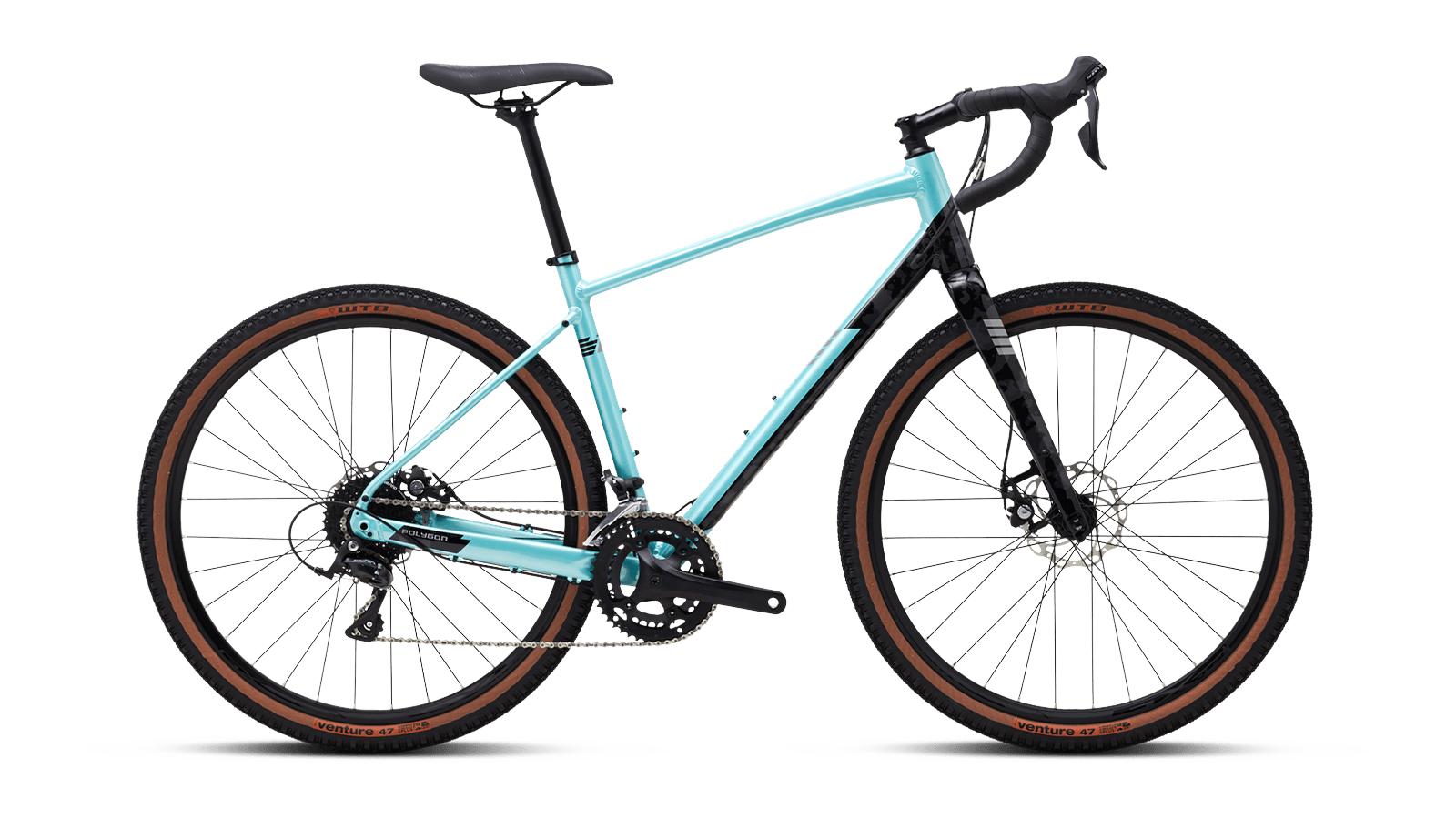

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: gravel.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 592 mm | 397 mm | 72.0° | 73.0° | 430 mm | 1052 mm | 74 mm |
| M | 574 mm | 389 mm | 71.5° | 73.5° | 430 mm | 1040 mm | 74 mm |
| S | 556 mm | 381 mm | 71.0° | 73.5° | 430 mm | 1030 mm | 76 mm |
| XL | 610 mm | 405 mm | 72.0° | 72.8° | 430 mm | 1064 mm | 72 mm |
| XS | 538 mm | 373 mm | 70.5° | 74.0° | 430 mm | 1020 mm | 76 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
