Trek Checkpoint SL 2022 Geometry, Reviews, and Specs

Fit and steering

Aggressive fitSlow steeringFast steeringRelaxed fit

Weight—

Climbing2.3

Aero5.0

Comfort7.7

Trek's gravel all-rounder: stable, mounts everywhere, calmer than the Checkmate race bike. It likes loaded days more than a CX bike does.

Gravel riders who want one bike for events and weekends, not a dedicated race whip.

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
XS	535 mm	380 mm	1.41:1	80 mm	380 mm	165 mm	71.0°	74.0°	430 mm	1013 mm	76 mm	700c
S	556 mm	386 mm	1.44:1	90 mm	400 mm	170 mm	71.4°	73.7°	430 mm	1022 mm	76 mm	700c
M	579 mm	391 mm	1.48:1	100 mm	420 mm	172.5 mm	71.6°	73.4°	430 mm	1034 mm	76 mm	700c
ML	601 mm	397 mm	1.51:1	100 mm	420 mm	172.5 mm	72.0°	73.2°	430 mm	1042 mm	76 mm	700c
L	620 mm

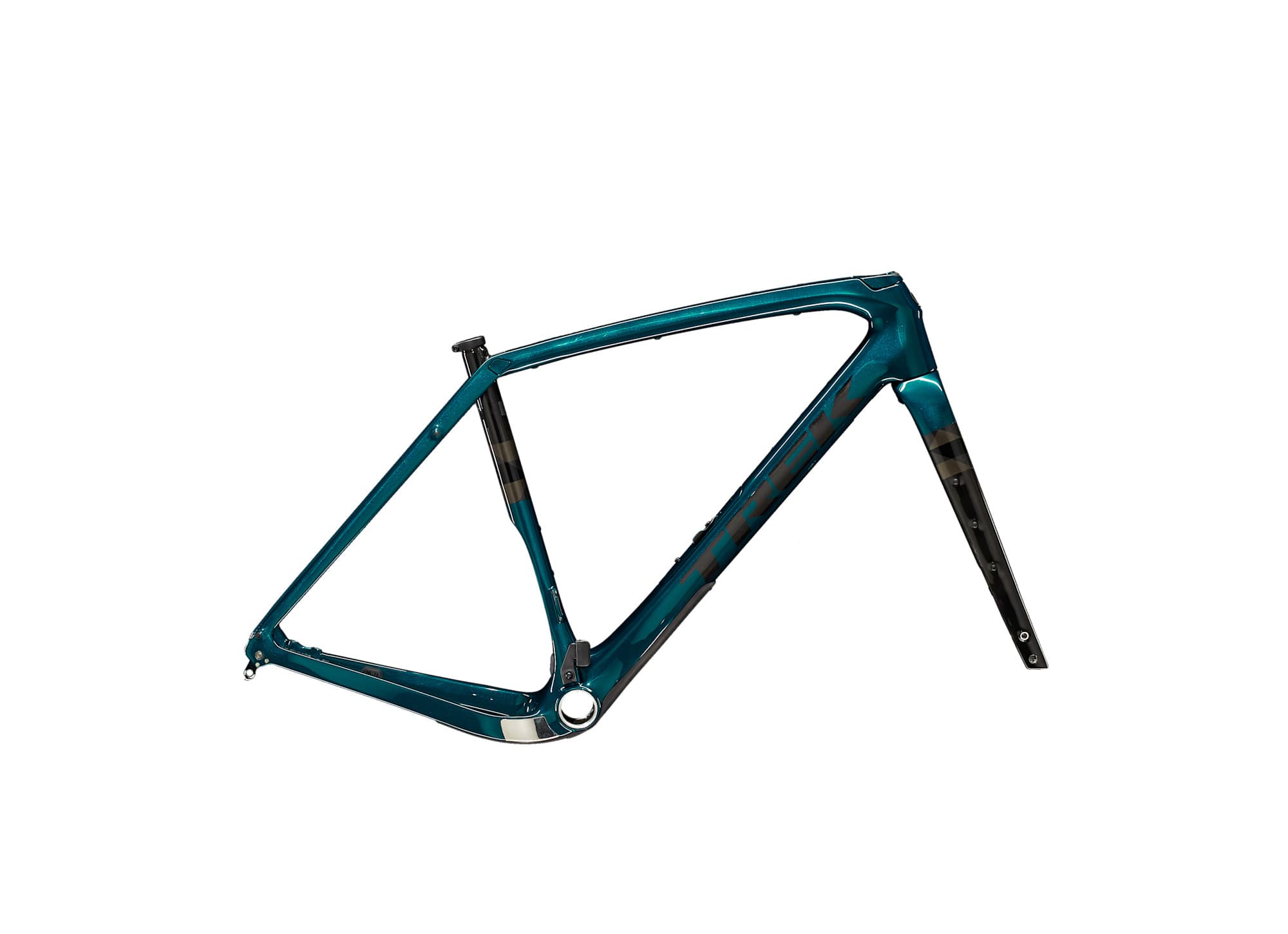

This year's studio shot is Checkpoint SL Frameset.

This is the earliest Checkpoint SL year in the catalog. No prior year to compare.

The Checkpoint SL 6 sits in the middle of the new 2022 Trek Checkpoint SL range, updated with a refreshed geometry, clearance for 45mm tyres (on 700c wheels, or ...

No verified spec sheet for 2022 yet.

The Checkpoint SL 6 sits in the middle of the new 2022 Trek Checkpoint SL range, updated with a refreshed geometry, clearance for 45mm tyres (on 700c wheels, or ...

No launch MSRP in the catalog yet.

Trek Checkpoint SL 5 WSD comes in 49cm (tested), 52cm, 54cm and 56cm, in Era White, and retails for $2,799.99 with these goodies: Shimano 105 2 x 11-speed; 500 ...

Trek Checkpoint SL 2022 Geometry Chart

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
XS	535 mm	380 mm	1.41:1	80 mm	380 mm	165 mm	71.0°	74.0°	430 mm	1013 mm	76 mm	700c
S	556 mm	386 mm	1.44:1	90 mm	400 mm	170 mm	71.4°	73.7°	430 mm	1022 mm	76 mm	700c
M	579 mm	391 mm	1.48:1	100 mm	420 mm	172.5 mm	71.6°	73.4°	430 mm	1034 mm	76 mm	700c
ML	601 mm	397 mm	1.51:1	100 mm	420 mm	172.5 mm	72.0°	73.2°	430 mm	1042 mm	76 mm	700c
L	620 mm
