Drop-bar Santa Cruz: CX/gravel race geometry, not a touring bike. It feels like the brand's MTB handling translated to drop bars.
CX and gravel racers who already like Santa Cruz. Not a bikepacking mule.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 564 mm | 390 mm | 1.45:1 | 90 mm | 400 mm | 170 mm | 69.5° | 74.0° | 430 mm | 1043 mm | 74 mm | 700c |
| 54 | 576 mm | 405 mm | 1.42:1 | 100 mm | 420 mm | 172.5 mm | 69.5° | 74.0° | 430 mm | 1063 mm | 74 mm | 700c |
| 56 | 589 mm | 415 mm | 1.42:1 | 100 mm | 420 mm | 172.5 mm | 69.5° | 74.0° | 430 mm | 1075 mm | 72 mm | 700c |
| 58 | 600 mm | 420 mm | 1.43:1 | 110 mm | 440 mm | 175 mm | 69.5° | 74.0° | 430 mm | 1087 mm | 72 mm | 700c |
| 60 | 612 mm |
No colorway catalog for 2024 yet.
This is the earliest Stigmata year in the catalog. No prior year to compare.
No verified spec sheet for 2024 yet.
No launch MSRP in the catalog yet.
Santa Cruz Stigmata Force-1x AXS RSV reviewBikeRadar · 2024
Review: 6 Months on the Santa Cruz StigmataVelo · 2024

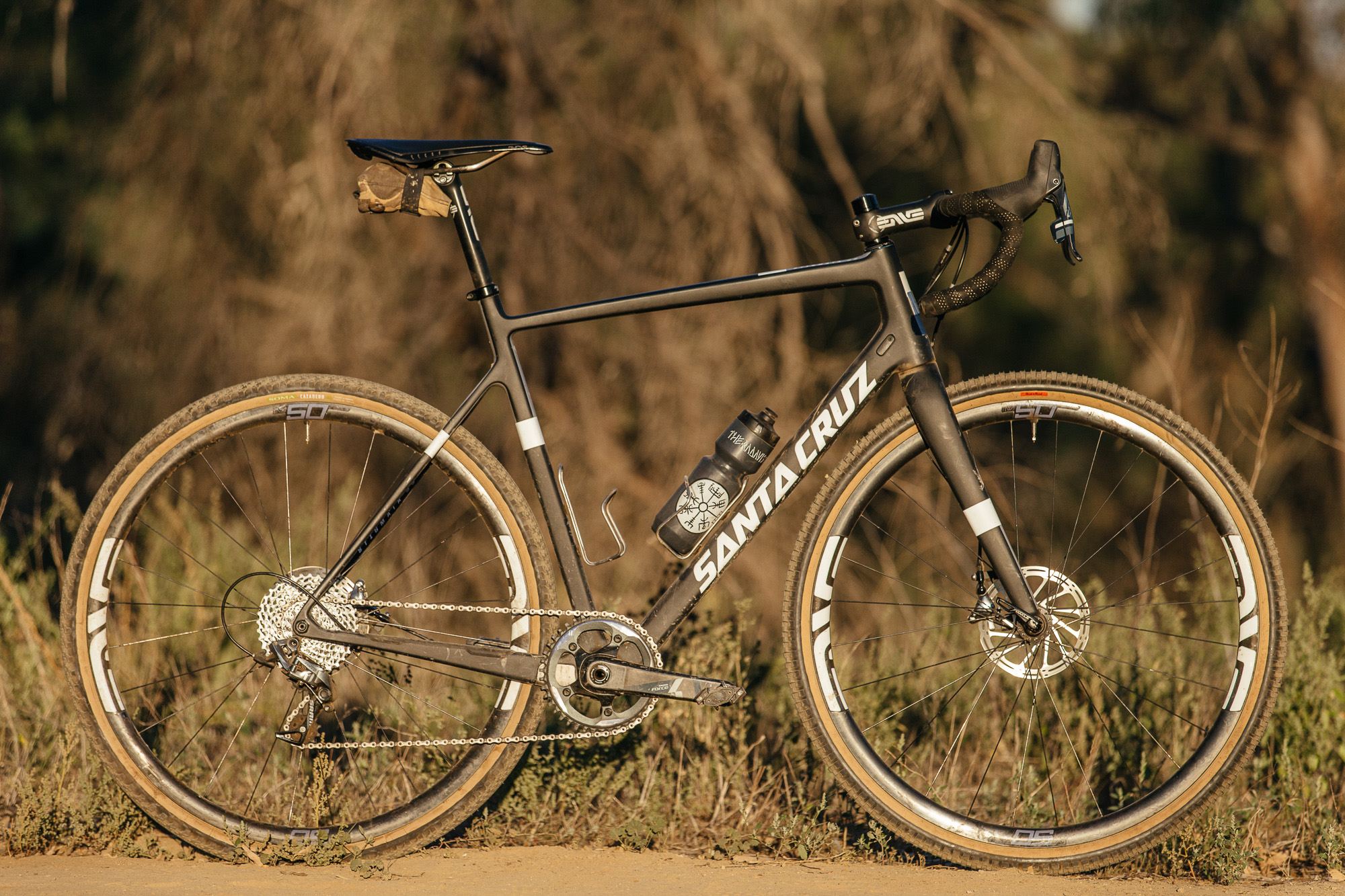

Seven Months of Shredding on the Santa Cruz StigmataThe Radavist · 2015
2020 Santa Cruz Stigmata and Juliana Quincy, First lookBIKEPACKING.com · 2019| 435 mm |
| 1.41:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 69.5° |
| 74.0° |
| 430 mm |
| 1108 mm |
| 70 mm |
| 700c |
