The first S-sizing Stumpjumper: six frame lengths from S1 to S6 with short seat tubes, so reach and wheelbase pick your size instead of your inseam. Travel dropped to 130 mm rear behind a 140 mm fork, leaving the longer stuff to the EVO.
Trail riders who want one Specialized and are willing to size by reach. Enduro-curious riders should look at Stumpjumper EVO or Enduro; XC racers at Epic. The S-Works kit is the halo build — same geometry as the non-S-Works page for this year, different parts.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Dropper | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 608 mm | 415 mm | 1.47:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1170 mm | 40 mm | 29" |
| S2 | 618 mm | 435 mm | 1.42:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1192 mm | 40 mm | 29" |
| S3 | 628 mm | 455 mm | 1.38:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1215 mm | 40 mm | 29" |
| S4 | 638 mm | 480 mm | 1.33:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1242 mm |

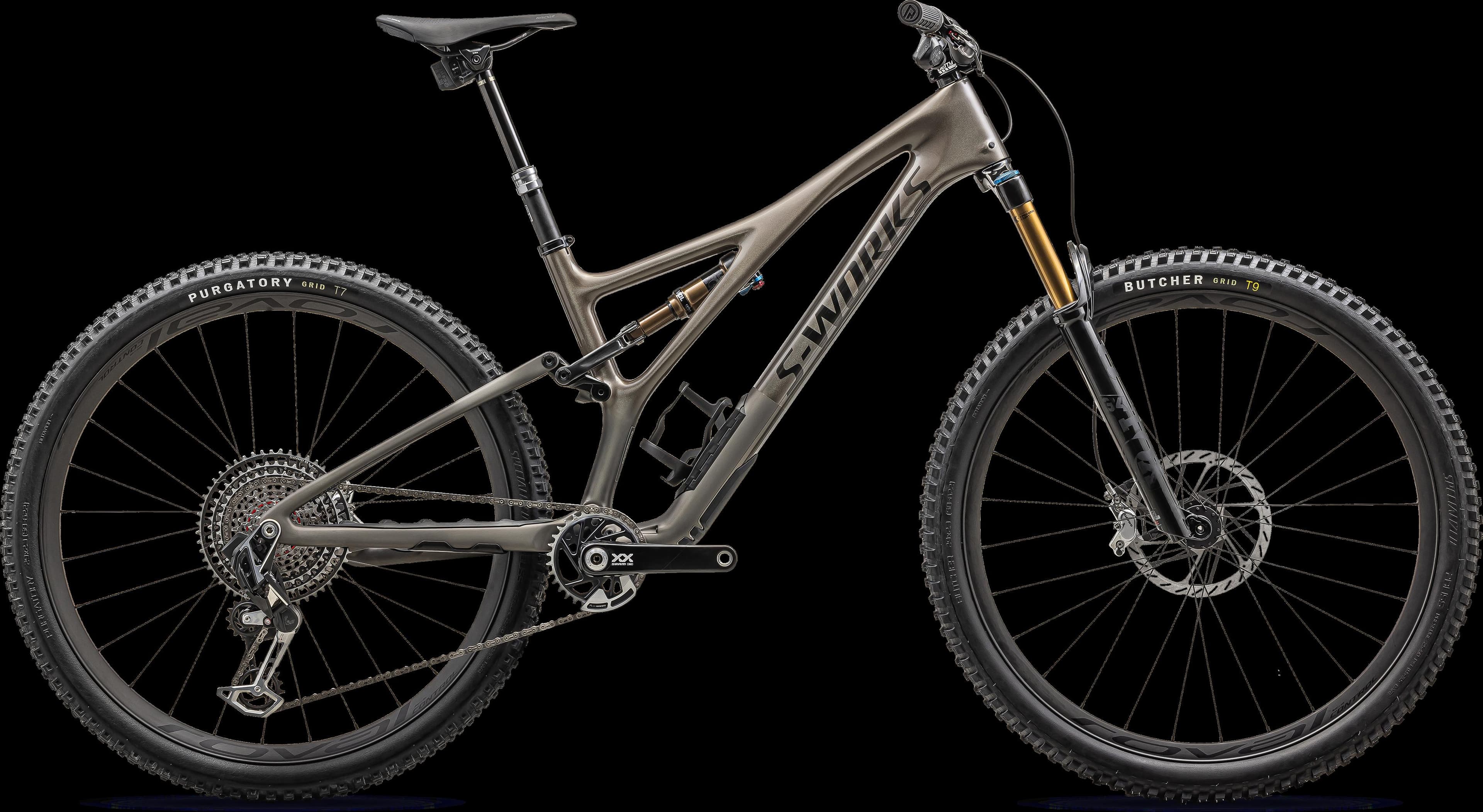

This year's studio shot is year-true studio.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
Compare 2023 and 2022 Specialized S-Works Stumpjumper side by side
| 40 mm |
| 29" |
| S5 | 648 mm | 505 mm | 1.28:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1269 mm | 40 mm | 29" |
| S6 | 658 mm | 530 mm | 1.24:1 | 50 mm | 800 mm | 175 mm | 170 mm | 65.0° | 76.5° | 432 mm | 1296 mm | 40 mm | 29" |
