Loading geometry

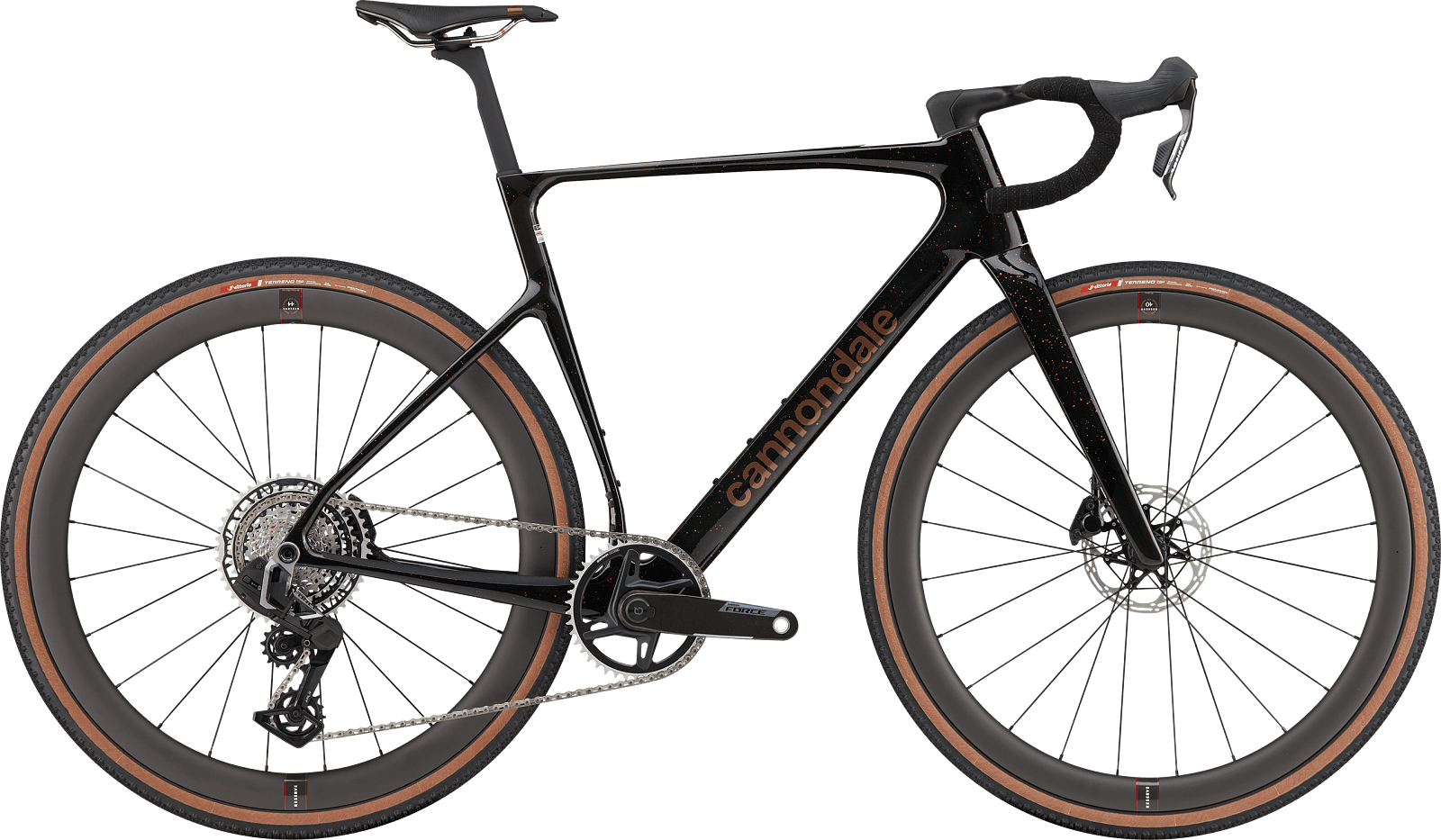

The CX/gravel race Cannondale: lower and snappier than Topstone, built to be raced in mud or gravel events.
CX and gravel racers who size like SuperSix riders.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 525 mm | 372 mm | 1.41:1 | 70 mm | 360 mm | 165 mm | 70.5° | 74.0° | 422 mm | 1005 mm | 70 mm | 700c |
| 51 | 545 mm | 380 mm | 1.43:1 | 90 mm | 400 mm | 170 mm | 71.0° | 73.7° | 422 mm | 1016 mm | 70 mm | 700c |
| 54 | 562 mm | 387 mm | 1.45:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 422 mm | 1026 mm | 68 mm | 700c |
| 56 | 580 mm | 394 mm | 1.47:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.2° | 422 mm | 1036 mm | 68 mm | 700c |
| 58 | 598 mm |
No colorway catalog for 2024 yet.
This is the earliest SuperX year in the catalog. No prior year to compare.
No verified spec sheet for 2024 yet.
No launch MSRP in the catalog yet.
Reviewed: Cannondale SuperX Hi-Mod CX1Velo · 2015
Cannondale SuperX 105 - Cycling News | Bike Reviewsroad.cc · 2016
17 Cannondale SuperX Team Cyclocross Bike Super-XCyclocross Magazine · 2016
2016 Cannondale SuperX 105 Review - FeedTheHabit.comFeed The Habit · 2016
Review: Cannondale SuperX cyclocross race bike holds its ...BikeRumor · 2018| 400 mm |
| 1.50:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.0° |
| 422 mm |
| 1046 mm |
| 66 mm |
| 700c |
| 61 | 618 mm | 406 mm | 1.52:1 | 110 mm | 440 mm | 175 mm | 72.5° | 72.8° | 422 mm | 1056 mm | 66 mm | 700c |
