Aggressive fitSlow steeringFast steeringRelaxed fit
Weight—
Climbing5.8
Aero10.0
Comfort4.2
Trek Madone SLR 2022 Sizing Guide
What it's like to ride

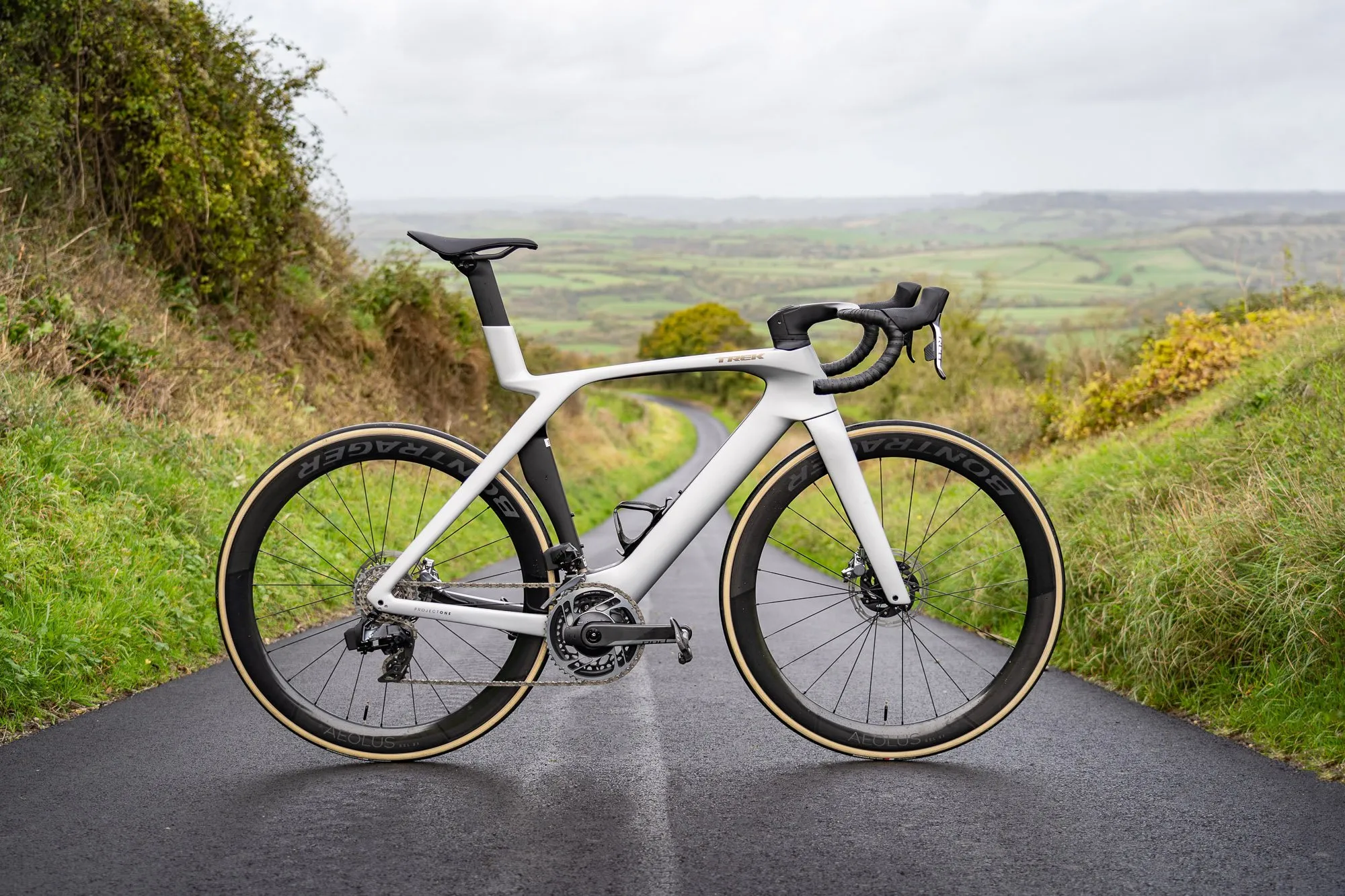

Gen 7 Madone: a pure aero race bike built on Kammtail Virtual Foil tubes with the IsoFlow cutout for rear compliance. It is the fast, heavier half of Trek's race line — Émonda is still the light bike in these years.
Who it's for
Sprinters and fast road riders who picked aero over weight. If you wanted the climbing bike in this era, compare stack/reach against the Émonda instead.
Trek Madone SLR 2022 Geometry Chart
Size
Stack
Reach
Stack/reach
Stem
Bar
Crank
Head tube angle
Seat tube angle
Chainstay
Wheelbase
BB drop
Wheel size
47
507 mm
367 mm
1.38:1
70 mm
360 mm
165 mm
71.2°
74.4°
410 mm
972 mm
72 mm
700c
50
521 mm
373 mm
1.40:1
80 mm
380 mm
165 mm
72.1°
74.1°
410 mm
974 mm
72 mm
700c
52
535 mm
378 mm
1.42:1
90 mm
400 mm
170 mm
72.8°
73.9°
410 mm
977 mm
72 mm
700c
54
549 mm
383 mm
1.43:1
100 mm
420 mm
172.5 mm
73.0°
73.7°
410 mm
981 mm
70 mm
700c
56
563 mm
What's new for the 2022 year
2022 colorways
These are the 2022 colors.
Navy Carbon Smoke
Trek Black
Red / Carbon Red Smoke
What changed in the bike frame
This is the earliest Madone SLR year in the catalog. No prior year to compare.
What changed in equipment
No verified spec sheet for 2022 yet.
