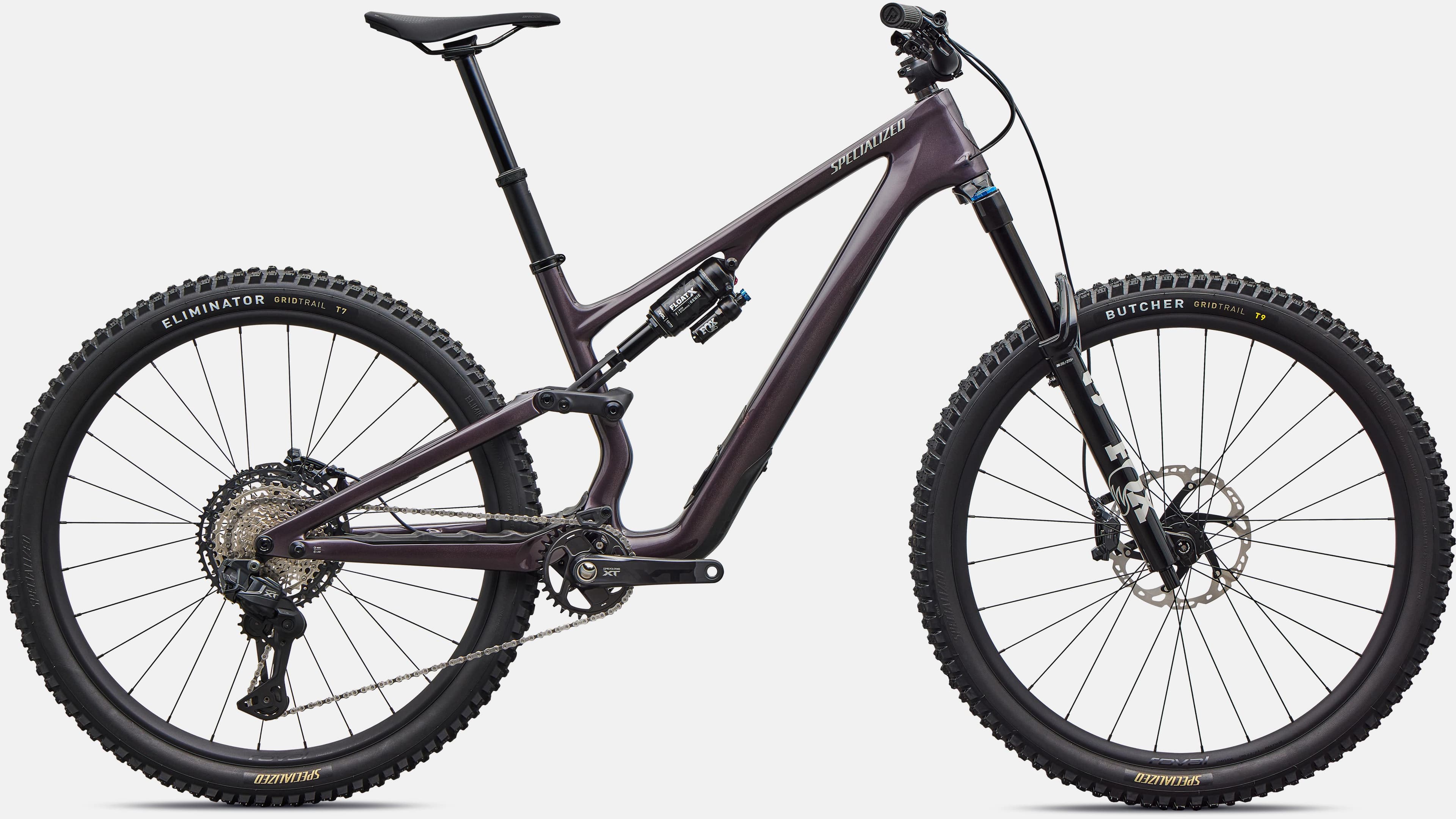

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: mtb-trail.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 635 mm | 450 mm | 66.5° | 74.0° | 438 mm | 1178 mm | 55 mm |
| M | 615 mm | 425 mm | 66.5° | 74.0° | 438 mm | 1148 mm | 55 mm |
| S | 595 mm | 400 mm | 66.5° | 74.0° | 438 mm | 1118 mm | 55 mm |
| XL | 655 mm | 475 mm | 66.5° | 74.0° | 438 mm | 1208 mm | 55 mm |
| XS | 575 mm | 375 mm | 66.5° | 74.0° | 438 mm | 1088 mm | 55 mm |
| XXL | 670 mm | 495 mm | 66.5° | 74.0° | 438 mm | 1233 mm | 55 mm |
Closest matches to this riding position — free, no login.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
