Loading geometry
Slacker and more stable than the Grail, with room for bigger tires. Planted on rough doubletrack and less nervous at bikepacking pace.
Adventure and all-road riders who want more stability than the Grail race bike.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 550 mm | 369 mm | 1.49:1 | 70 mm | 360 mm | 165 mm | 70.0° | 73.5° | 435 mm | 1035 mm | 76 mm | 700c |
| XS | 559 mm | 380 mm | 1.47:1 | 80 mm | 380 mm | 165 mm | 70.5° | 73.5° | 435 mm | 1045 mm | 76 mm | 700c |
| S | 578 mm | 388 mm | 1.49:1 | 90 mm | 400 mm | 170 mm | 71.0° | 73.5° | 435 mm | 1055 mm | 76 mm | 700c |
| M | 596 mm | 404 mm | 1.48:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 435 mm | 1070 mm | 74 mm | 700c |
| L | 619 mm |

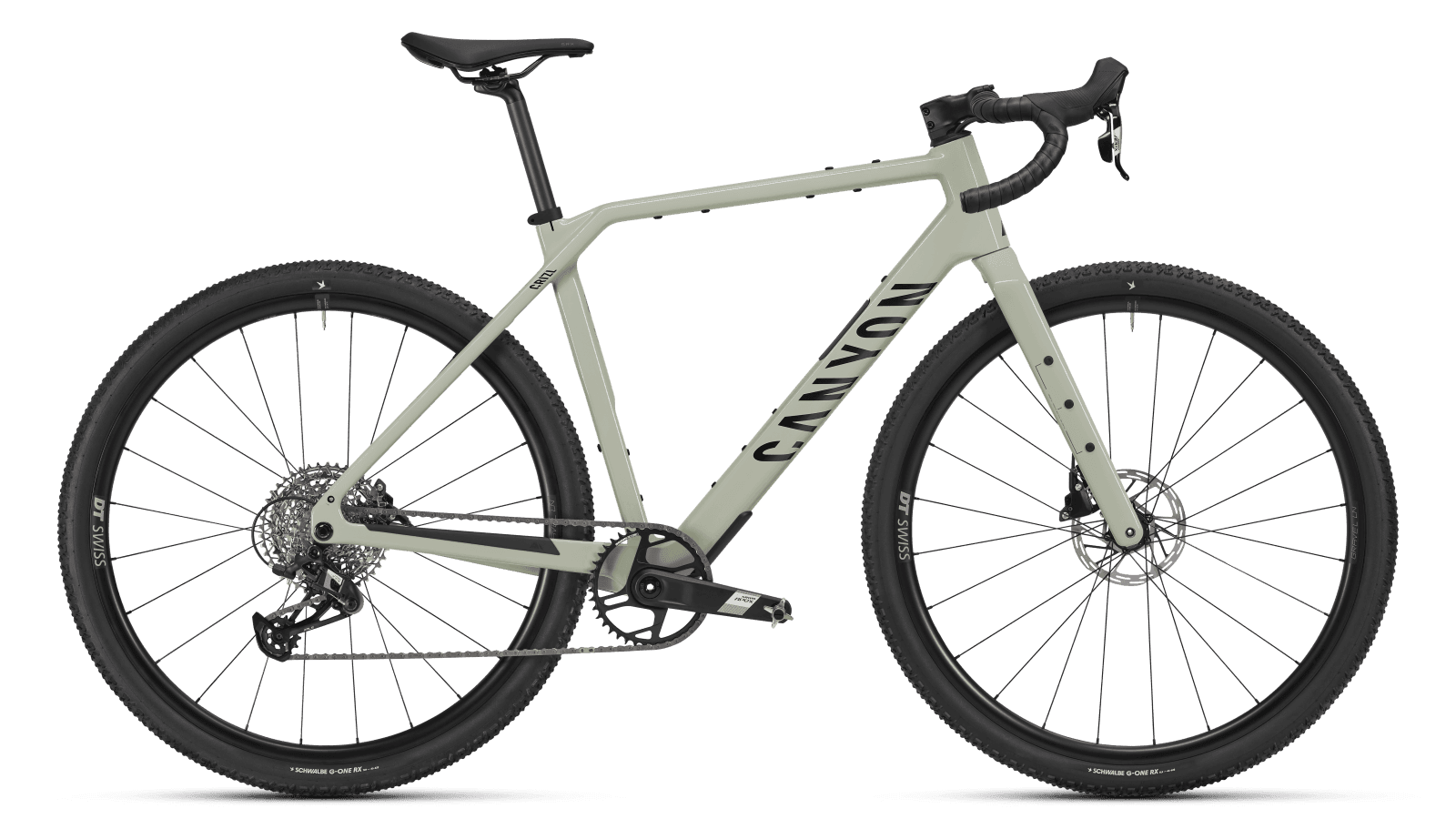

This year's studio shot is CF 6.
Same published geometry as 2025.
These are the verified 2026 builds. No 2025 sheet to compare.
2026 launch prices are in. No 2025 MSRP to compare.
$4,999 · 2026 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R8170 Ultegra Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R8150 Ultegra Di2 | braze-on |
| Rear derailleur | Shimano | RD-R8150 Ultegra Di2 | 12-speed |
| Crankset | Shimano | FC-R8100 Ultegra | 52/36
|
| Cassette | Shimano | CS-R8100 Ultegra | 11-30, 12-speed |
| Chain | Shimano | CN-M8100 Ultegra | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R8170 Ultegra | hydraulic disc |
| Rotors | Shimano | SM-RT800 | 160mm / 140mm centerlock |
| 420 mm |
| 1.47:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 71.5° |
| 73.5° |
| 435 mm |
| 1088 mm |
| 74 mm |
| 700c |
| XL | 638 mm | 429 mm | 1.49:1 | 110 mm | 440 mm | 175 mm | 72.0° | 73.5° | 435 mm | 1102 mm | 74 mm | 700c |
| Cockpit |
|---|
| Canyon |
| CP0018 Aerocockpit |
|
| Seatpost | Canyon | SP0046 aero carbon | — |
|---|
| Saddle | Fizik | Tempo Argo R5 | — |
|---|
| Wheels | DT Swiss | ARC 1600 DICUT 50 | 700c |
|---|
| Tires | Continental | Grand Prix 5000 S TR, 700x28mm | — |
|---|
