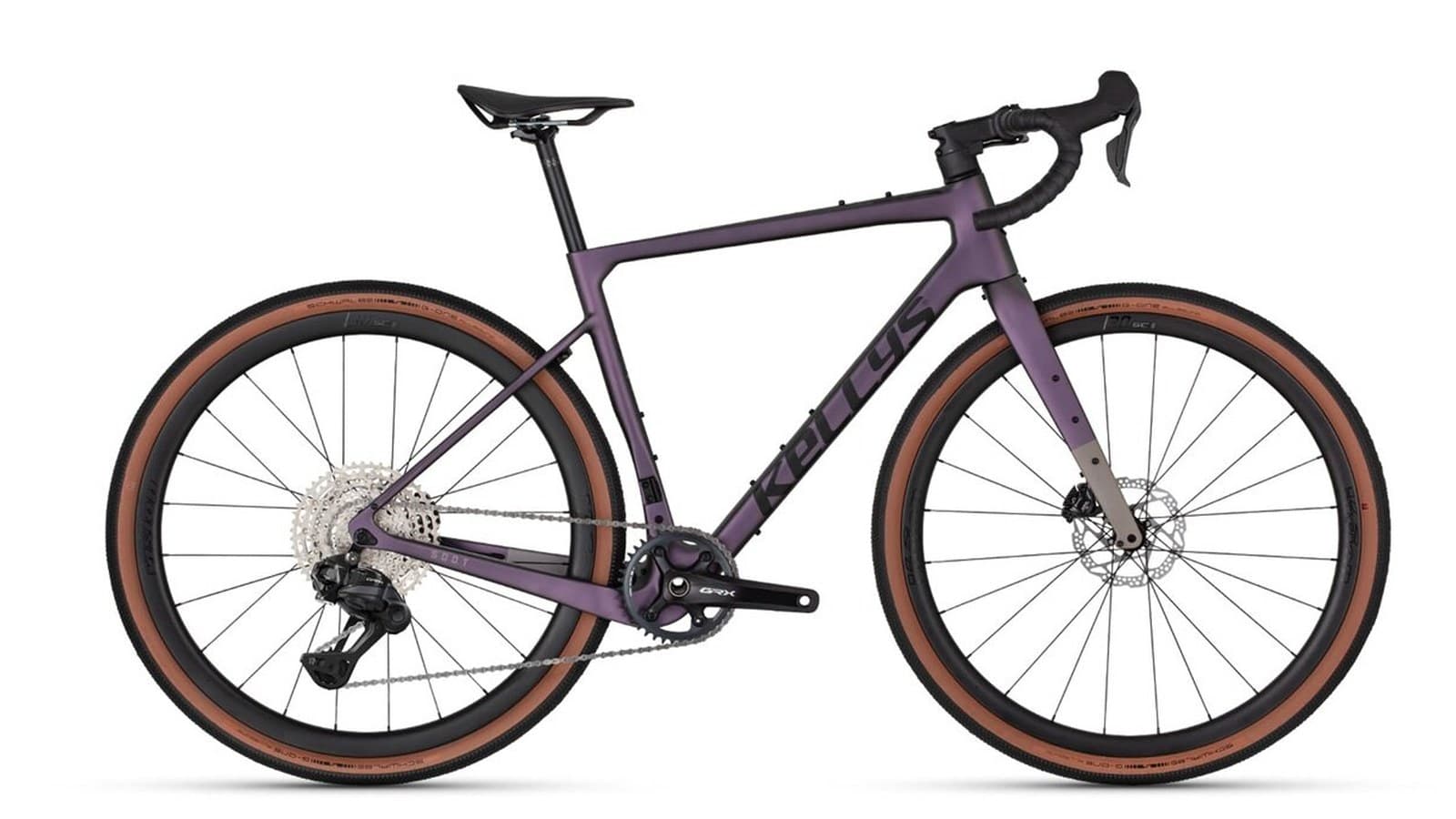

Kellys Soot 2022 Geometry, Reviews, and Specs

Fit and steering

Aggressive fitSlow steeringFast steeringRelaxed fit

Weight—

Climbing3.3

Aero3.3

Comfort6.7

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
S	548 mm	372 mm	1.47:1	90 mm	400 mm	170 mm	70.5°	73.5°	430 mm	1032 mm	74 mm	700c
M	568 mm	382 mm	1.49:1	100 mm	420 mm	172.5 mm	71.0°	73.5°	430 mm	1044 mm	74 mm	700c
L	586 mm	392 mm	1.49:1	110 mm	440 mm	175 mm	71.5°	73.0°	430 mm	1056 mm	72 mm	700c
XL	606 mm	402 mm	1.51:1	110 mm	440 mm	175 mm	71.5°	72.5°	432 mm	1072 mm	72 mm	700c

No colorway catalog for 2022 yet.

This is the earliest Soot year in the catalog. No prior year to compare.

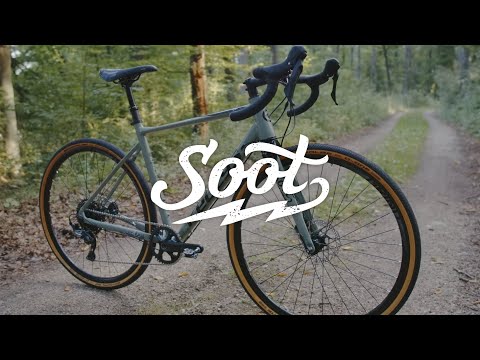

2021 KELLYS SOOT 70- now even more comfortable and easy to ride! The new frame also utilises all the latest standards and top of the line ...

No verified spec sheet for 2022 yet.

No launch MSRP in the catalog yet.

Kellys Soot 2022 Geometry Chart

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
S	548 mm	372 mm	1.47:1	90 mm	400 mm	170 mm	70.5°	73.5°	430 mm	1032 mm	74 mm	700c
M	568 mm	382 mm	1.49:1	100 mm	420 mm	172.5 mm	71.0°	73.5°	430 mm	1044 mm	74 mm	700c
L	586 mm	392 mm	1.49:1	110 mm	440 mm	175 mm	71.5°	73.0°	430 mm	1056 mm	72 mm	700c
XL	606 mm	402 mm	1.51:1	110 mm	440 mm	175 mm	71.5°	72.5°	432 mm	1072 mm	72 mm	700c
