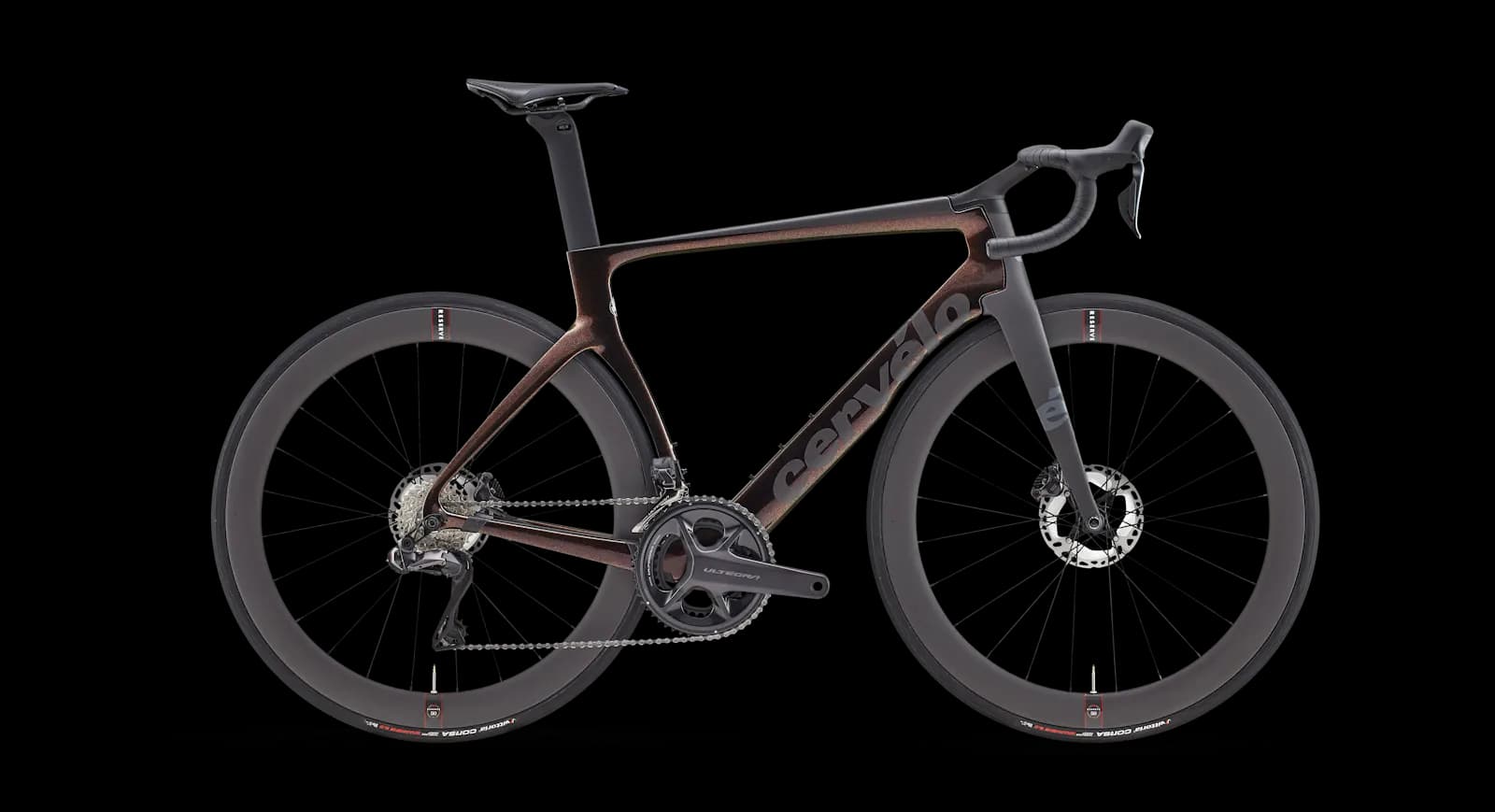

The aero Cervelo: V-stem, deep tubes, and a bike that wants to be ridden fast in a straight line and still corners better than its looks suggest.
Aero racers. If you want light and conventional, R5; if you want endurance, Caledonia.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Top tube | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 496 mm | 367 mm | 1.35:1 | 80 mm | 380 mm | 165 mm | 520 mm | 71.0° | 73.0° | 405 mm | 973 mm | 73 mm | 700c |
| 51 | 519 mm | 376 mm | 1.38:1 | 90 mm | 400 mm | 170 mm | 535 mm | 72.0° | 73.0° | 405 mm | 974 mm | 73 mm | 700c |
| 54 | 542 mm | 384 mm | 1.41:1 | 100 mm | 420 mm | 172.5 mm | 550 mm | 73.0° | 73.0° | 405 mm | 975 mm | 70 mm | 700c |
| 56 | 565 mm | 392 mm | 1.44:1 | 100 mm | 420 mm | 172.5 mm | 565 mm | 73.5° | 73.0° | 405 mm | 982 mm |
No colorway catalog for 2027 yet.
The published chart moved versus 2026.
Same verified builds as 2026.
Launch MSRP held versus 2026.
We couldn't find any reviews for this model year.
$10,250 · 2027 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | SRAM | Force AXS E1 HRD | 2×12 |
| Front derailleur | SRAM | Force AXS E1 | braze-on |
| Rear derailleur | SRAM | Force AXS E1 | 12-speed |
| Crankset | SRAM | Force E1 | 48/35
|
| Cassette | SRAM | XG-1270 E1 | 10-33, 12-speed |
| Chain | SRAM | Force E1 Flattop | 12-speed |
| Power meter | — | None | — |
| Brakes | SRAM | Force AXS E1 HRD | hydraulic disc |
| Rotors | SRAM | Paceline X | 160mm centerlock |
| Bottom bracket | SRAM |
| 70 mm |
| 700c |
| 58 | 588 mm | 401 mm | 1.47:1 | 110 mm | 440 mm | 175 mm | 581 mm | 73.5° | 73.0° | 405 mm | 999 mm | 68 mm | 700c |
| 61 | 608 mm | 409 mm | 1.49:1 | 110 mm | 440 mm | 175 mm | 595 mm | 73.5° | 73.0° | 405 mm | 1013 mm | 68 mm | 700c |
| DUB T47 |
internal bearing |
| Stem | Cervelo | ST36 alloy / HB13 alloy |
|
|---|
| Handlebar | Cervelo | ST36 alloy / HB13 alloy |
|
|---|
| Seatpost | Cervelo | SP24 carbon | — |
|---|
| Saddle | Selle Italia | Model 6 Superflow | — |
|---|
| Wheels | Reserve | 40/44 | 700c |
|---|
| Tires | Vittoria | Rubino Pro TLR, 700x28mm | — |
|---|
$10,100 · 2027 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R8170 Ultegra Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R8150 Ultegra Di2 | braze-on |
| Rear derailleur | Shimano | RD-R8150 Ultegra Di2 | 12-speed |
| Crankset | Shimano | FC-R8100 Ultegra | 52/36
|
| Cassette | Shimano | CS-R8100 Ultegra | 11-30, 12-speed |
| Chain | Shimano | CN-M8100 Ultegra | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R8170 Ultegra | hydraulic disc |
| Rotors | Shimano | SM-RT800 | 160mm / 140mm centerlock |
| Stem | Cervelo | ST36 alloy / HB13 alloy |
|
| Handlebar | Cervelo | ST36 alloy / HB13 alloy |
|
| Seatpost | Cervelo | SP24 carbon | — |
| Saddle | Selle Italia | Model 6 Superflow | — |
| Wheels | Reserve | 40/44 | 700c |
| Tires | Vittoria | Rubino Pro TLR, 700x28mm | — |
$14,500 · 2027 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | SRAM | RED AXS E1 HRD | 2×12 |
| Front derailleur | SRAM | RED AXS E1 | braze-on |
| Rear derailleur | SRAM | RED AXS E1 | 36T max |
| Crankset | SRAM | RED AXS E1 with power meter | 48/35
|
| Cassette | SRAM | XG-1290 E1 | 10-33, 12-speed |
| Chain | SRAM | RED E1 Flattop | 12-speed |
| Power meter | SRAM | RED AXS E1 | spindle |
| Brakes | SRAM | RED AXS E1 HRD | hydraulic disc |
| Rotors | SRAM | Paceline X | 160mm centerlock |
| Bottom bracket | SRAM | DUB T47 | internal bearing |
| Stem | Cervelo | ST31 carbon / HB13 carbon |
|
| Handlebar | Cervelo | ST31 carbon / HB13 carbon |
|
| Seatpost | Cervelo | SP20 carbon | — |
| Saddle | Selle Italia | Novus Boost Evo SuperFlow Carbon | — |
| Wheels | Reserve | 52/63 | 700c |
| Tires | Vittoria | Corsa Pro TLR, 700x28mm | — |
$14,350 · 2027 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R9270 Dura-Ace Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R9250 Dura-Ace Di2 | braze-on |
| Rear derailleur | Shimano | RD-R9250 Dura-Ace Di2 | 12-speed |
| Crankset | Shimano | FC-R9200 Dura-Ace HollowTech II | 52/36
|
| Cassette | Shimano | CS-R9200 Dura-Ace | 11-30, 12-speed |
| Chain | Shimano | CN-M9100 Dura-Ace | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R9270 Dura-Ace | hydraulic disc |
| Rotors | Shimano | RT-MT900 | 160mm front / 140mm rear |
| Stem | Cervelo | ST31 carbon / HB13 carbon |
|
| Handlebar | Cervelo | ST31 carbon / HB13 carbon |
|
| Seatpost | Cervelo | SP20 carbon | — |
| Saddle | Selle Italia | Novus Boost Evo SuperFlow Carbon | — |
| Wheels | Reserve | 52/63 | 700c |
| Tires | Vittoria | Corsa Pro TLR, 700x28mm | — |
