BMC's lightweight race bike: steep, precise, and a WorldTour stack/reach reference. Less aero than Teammachine R / Timemachine.
Racers who want BMC's classic race fit. Roadmachine if you need stack.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 mm | 370 mm | 1.37:1 | 70 mm | 360 mm | 165 mm | 71.5° | 73.5° | 410 mm | 972 mm | 71 mm | 700c |
| 51 | 530 mm | 378 mm | 1.40:1 | 90 mm | 400 mm | 170 mm | 72.0° | 73.5° | 410 mm | 980 mm | 71 mm | 700c |
| 54 | 550 mm | 384 mm | 1.43:1 | 100 mm | 420 mm | 172.5 mm | 72.5° | 73.5° | 410 mm | 988 mm | 69 mm | 700c |
| 56 | 570 mm | 390 mm | 1.46:1 | 100 mm | 420 mm | 172.5 mm | 72.5° | 73.5° | 410 mm | 996 mm | 69 mm | 700c |
| 58 | 590 mm |

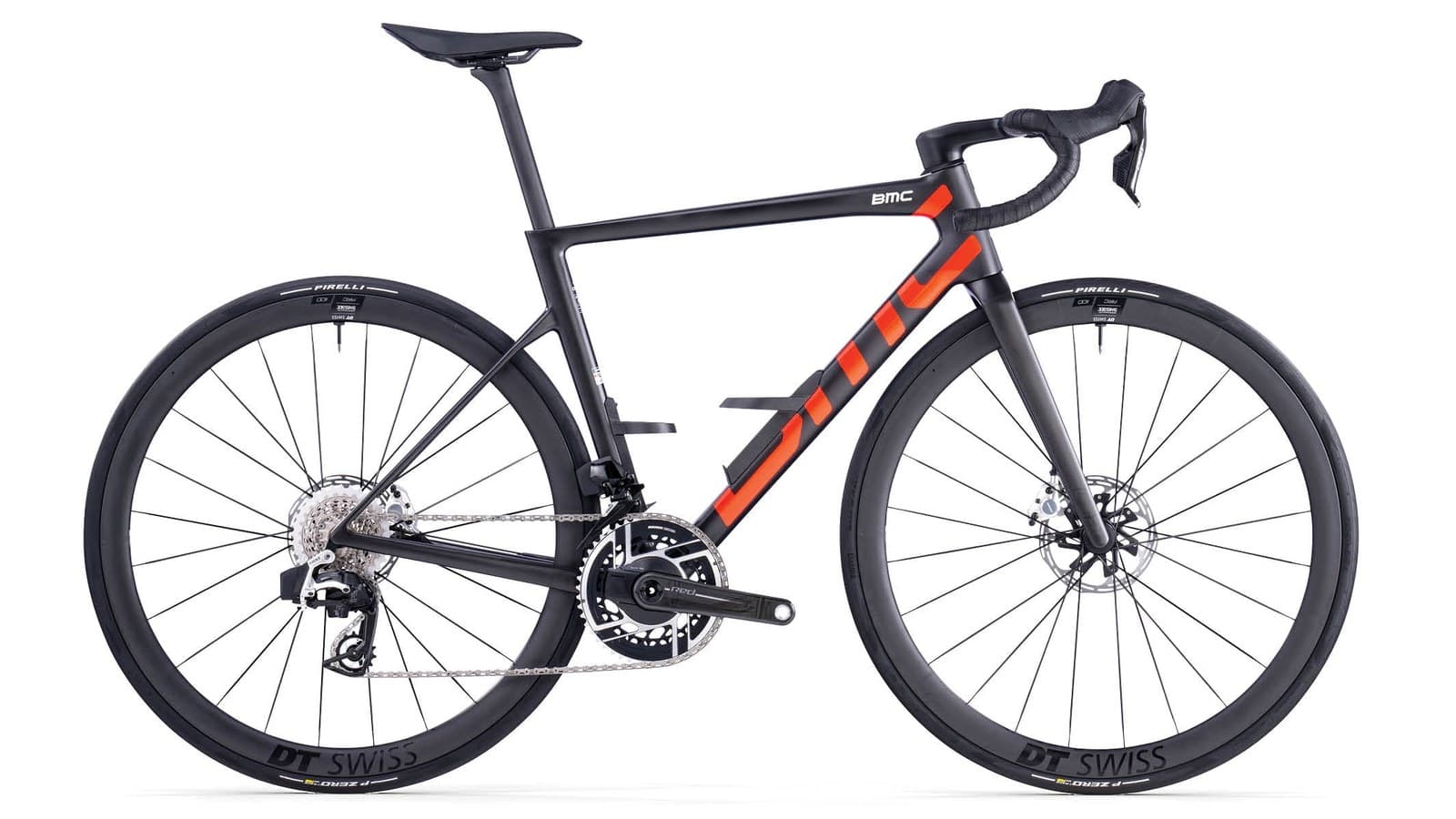

This year's studio shot is 01 ONE Black.
Same published geometry as 2025.
These are the verified 2026 builds. No 2025 sheet to compare.
2026 launch prices are in. No 2025 MSRP to compare.
$6,499 · 2026 launch MSRP
| 396 mm |
| 1.49:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.5° |
| 410 mm |
| 1008 mm |
| 67 mm |
| 700c |
| 61 | 610 mm | 402 mm | 1.52:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.5° | 410 mm | 1018 mm | 67 mm | 700c |
