Loading geometry

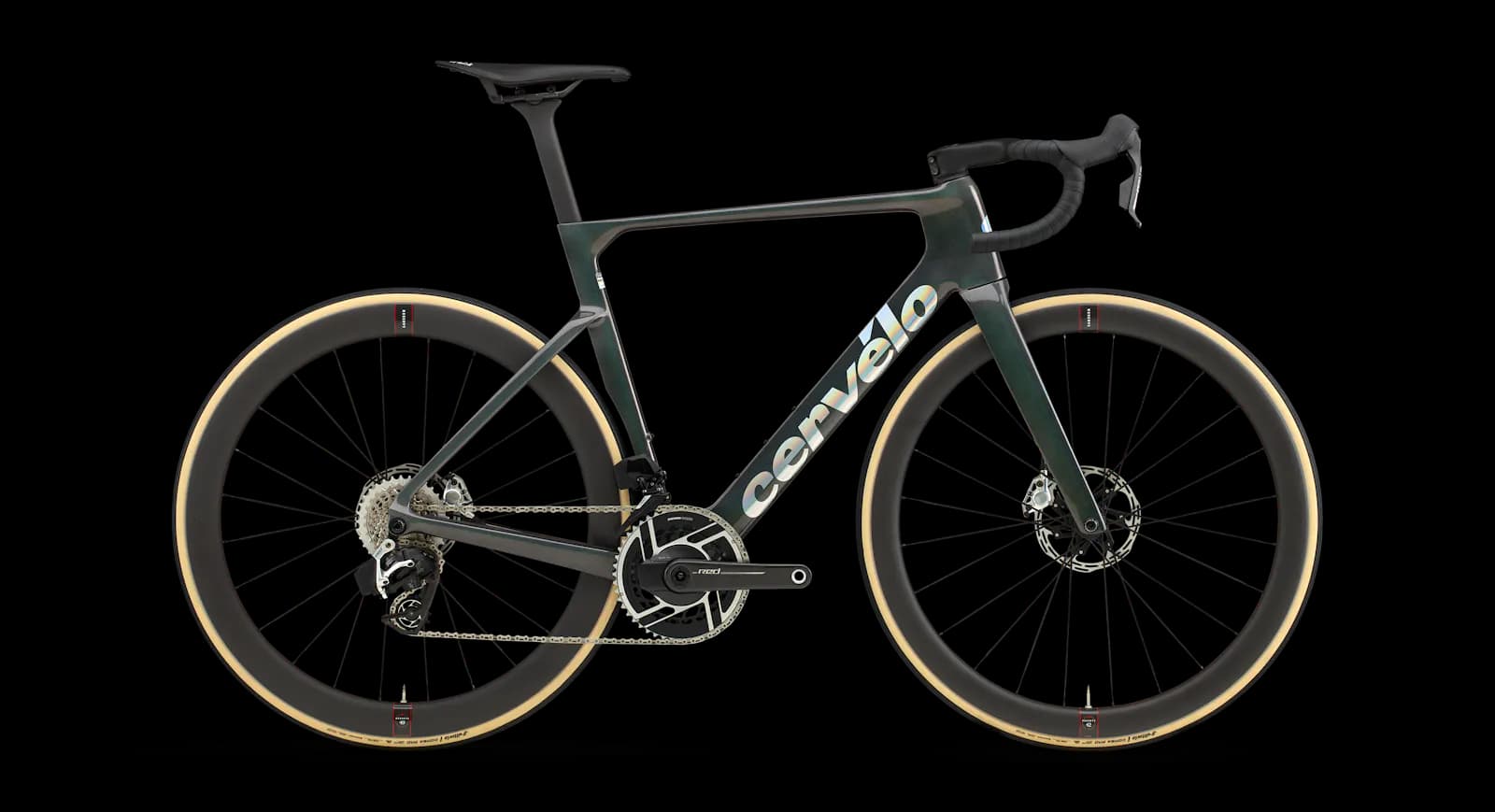

The mid-tier Cervelo race bike: less exotic than R5/S5, still a race position. A lot of riders' first Cervelo that actually fits like a race bike.
Racers who want Cervelo geometry without halo pricing. Compare stack/reach to R5.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 502 mm | 368 mm | 1.36:1 | 80 mm | 380 mm | 165 mm | 71.0° | 73.0° | 410 mm | 975 mm | 75 mm | 700c |
| 51 | 522 mm | 376 mm | 1.39:1 | 90 mm | 400 mm | 170 mm | 72.0° | 73.0° | 410 mm | 978 mm | 75 mm | 700c |
| 54 | 543 mm | 384 mm | 1.41:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 410 mm | 981 mm | 72 mm | 700c |
| 56 | 566 mm | 392 mm | 1.44:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 410 mm | 995 mm | 72 mm | 700c |
| 58 | 588 mm |
No colorway catalog for 2022 yet.
This is the earliest Soloist year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 401 mm |
| 1.47:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.0° |
| 410 mm |
| 1012 mm |
| 70 mm |
| 700c |
| 61 | 608 mm | 409 mm | 1.49:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 410 mm | 1026 mm | 70 mm | 700c |
