Loading geometry
Factor gravel. Race-leaning drop-bar, not a touring frame.
Gravel racers shopping Factor.

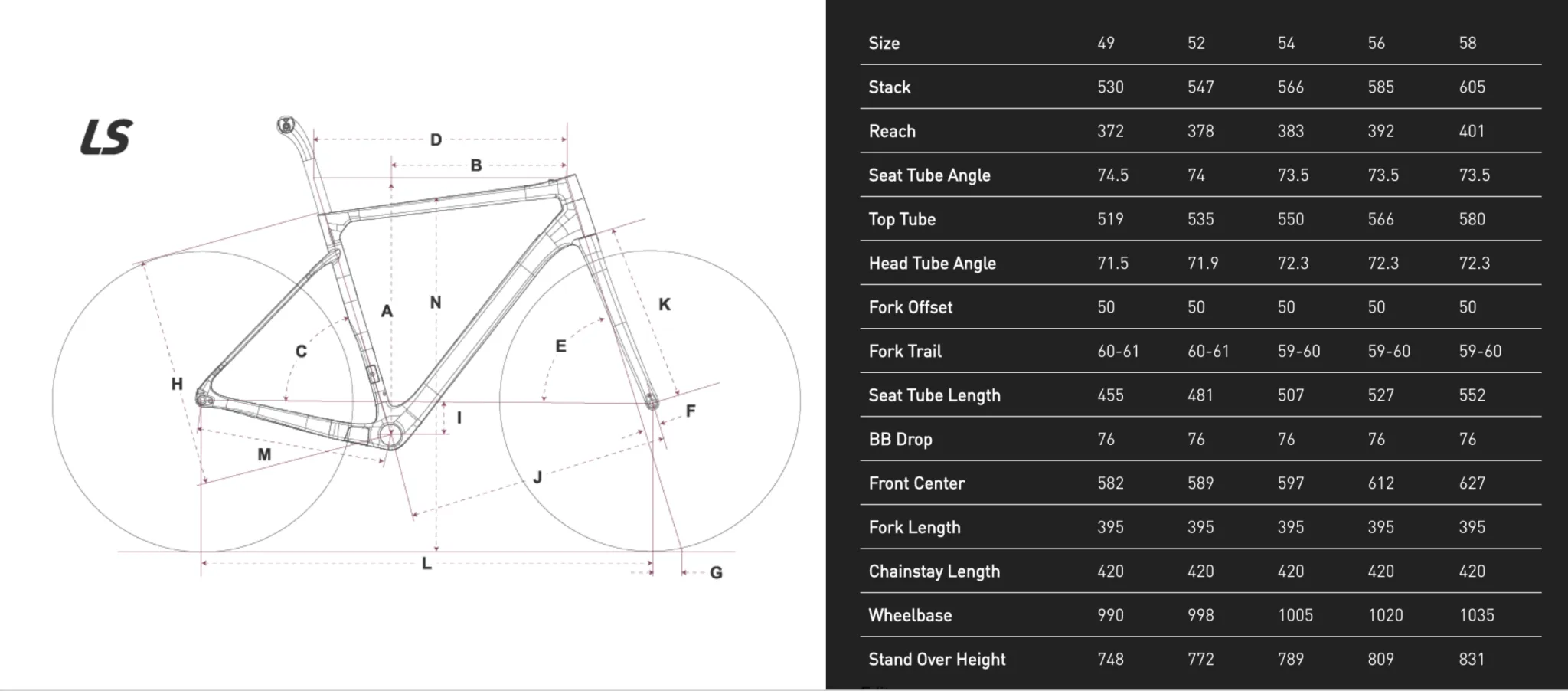

| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 mm | 372 mm | 1.42:1 | 80 mm | 380 mm | 165 mm | 70.5° | 74.0° | 420 mm | 1005 mm | 76 mm | 700c |
| 52 | 548 mm | 378 mm | 1.45:1 | 90 mm | 400 mm | 170 mm | 71.0° | 73.8° | 420 mm | 1015 mm | 76 mm | 700c |
| 54 | 567 mm | 384 mm | 1.48:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 420 mm | 1025 mm | 74 mm | 700c |
| 56 | 586 mm | 391 mm | 1.50:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.2° | 420 mm | 1038 mm | 74 mm | 700c |
| 58 | 606 mm |

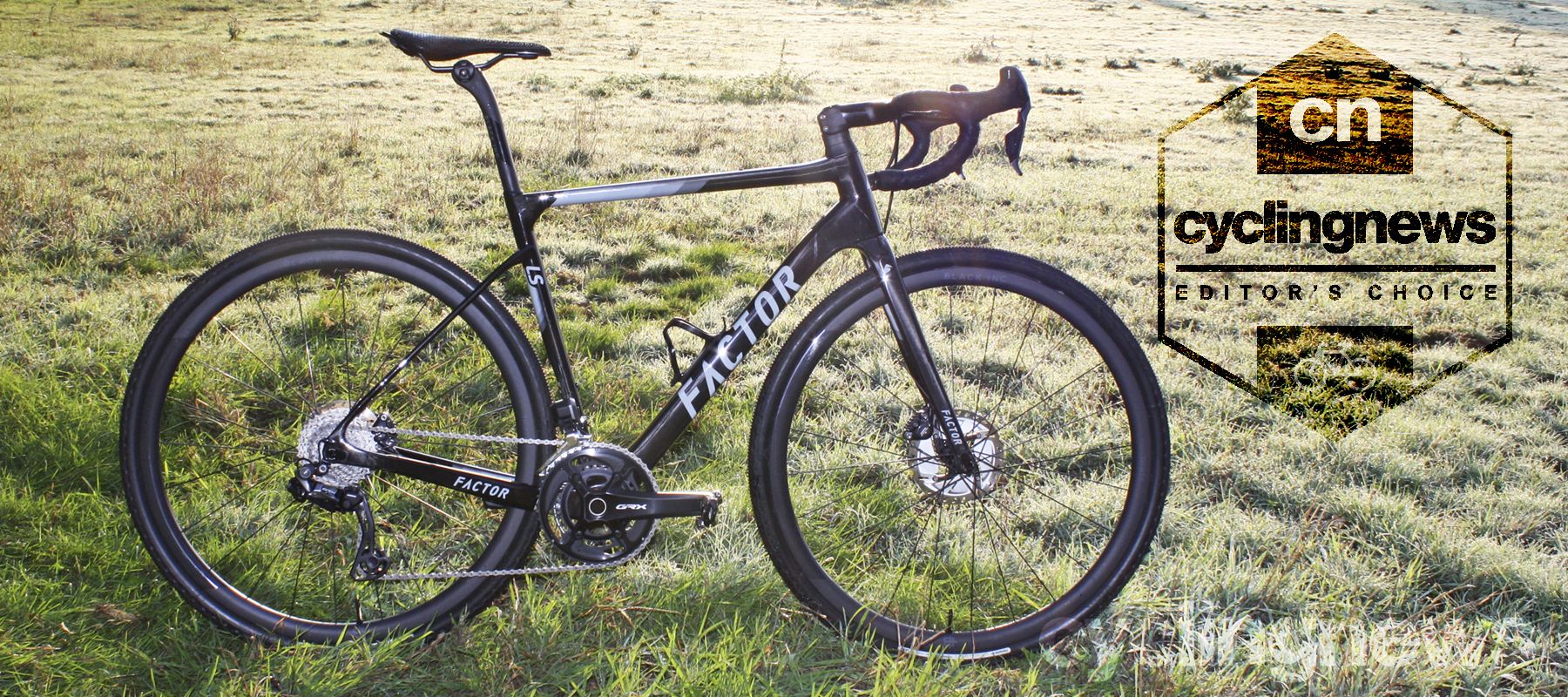

This year's studio shot is F45 Black.
This is the earliest LS year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 398 mm |
| 1.52:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.0° |
| 420 mm |
| 1050 mm |
| 72 mm |
| 700c |
| 61 | 627 mm | 405 mm | 1.55:1 | 110 mm | 440 mm | 175 mm | 72.5° | 72.8° | 420 mm | 1062 mm | 72 mm | 700c |
