Loading geometry
Scott's lightweight race bike: slim, syncros-integrated on high kits, and a fit that is race-low. Foil is the aero sibling.
Climbers and racers who want Scott without Foil's deep aero.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 505 mm | 370 mm | 1.36:1 | 70 mm | 360 mm | 165 mm | 70.5° | 74.5° | 410 mm | 978 mm | 72 mm | 700c |
| XS | 517 mm | 377 mm | 1.37:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.0° | 410 mm | 984 mm | 72 mm | 700c |
| S | 534 mm | 383 mm | 1.39:1 | 90 mm | 400 mm | 170 mm | 72.0° | 73.8° | 410 mm | 990 mm | 72 mm | 700c |
| M | 552 mm | 388 mm | 1.42:1 | 100 mm | 420 mm | 172.5 mm | 72.5° | 73.5° | 410 mm | 996 mm | 72 mm | 700c |
| L | 573 mm | 395 mm |

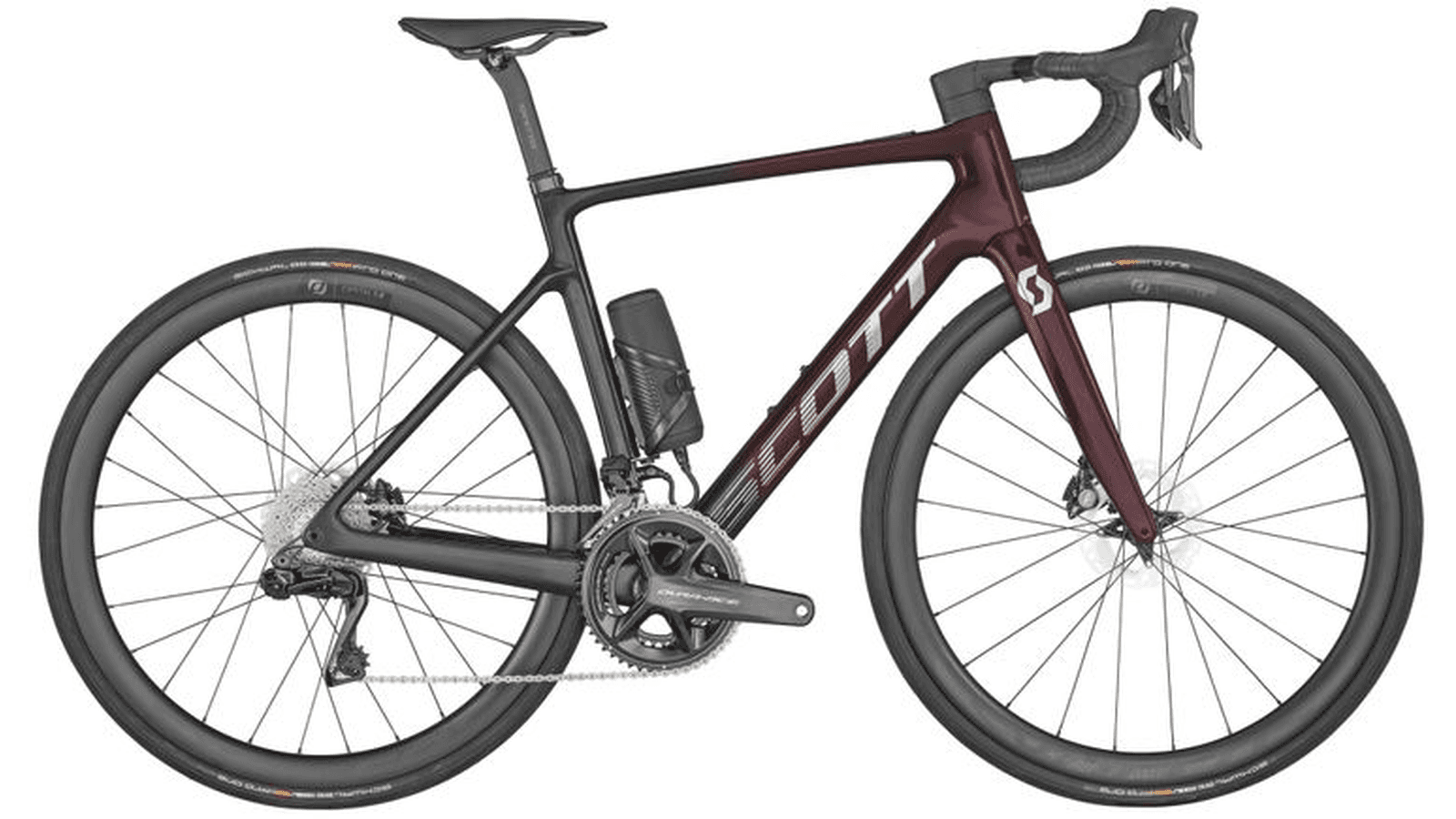

This year's studio shot is 2023 ADDICT RC.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 1.45:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.2° |
| 410 mm |
| 1008 mm |
| 70 mm |
| 700c |
| XL | 594 mm | 402 mm | 1.48:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 410 mm | 1020 mm | 70 mm | 700c |
| XXL | 615 mm | 408 mm | 1.51:1 | 110 mm | 440 mm | 175 mm | 73.3° | 72.8° | 410 mm | 1030 mm | 68 mm | 700c |
