Loading geometry
Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: Road Aero.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 563 mm | 396 mm | 73.0° | 73.0° | 405 mm | 997 mm | 68 mm |
| M | 545 mm | 390 mm | 73.0° | 73.5° | 405 mm | 987 mm | 68 mm |
| S | 527 mm | 384 mm | 72.5° | 74.0° | 405 mm | 979 mm | 70 mm |
| XL | 581 mm | 402 mm | 73.5° | 73.0° | 405 mm | 1009 mm | 66 mm |
| XS | 509 mm | 378 mm | 71.5° | 74.5° | 405 mm | 973 mm | 70 mm |
| Size | Stem | Bar | Crank |
|---|---|---|---|
| L | 110 mm | 440 mm | 175 mm |
| M | 100 mm | 420 mm | 173 mm |
| S | 90 mm | 400 mm | 170 mm |
| XL | 110 mm | 440 mm | 175 mm |
| XS | 80 mm | 380 mm | 165 mm |

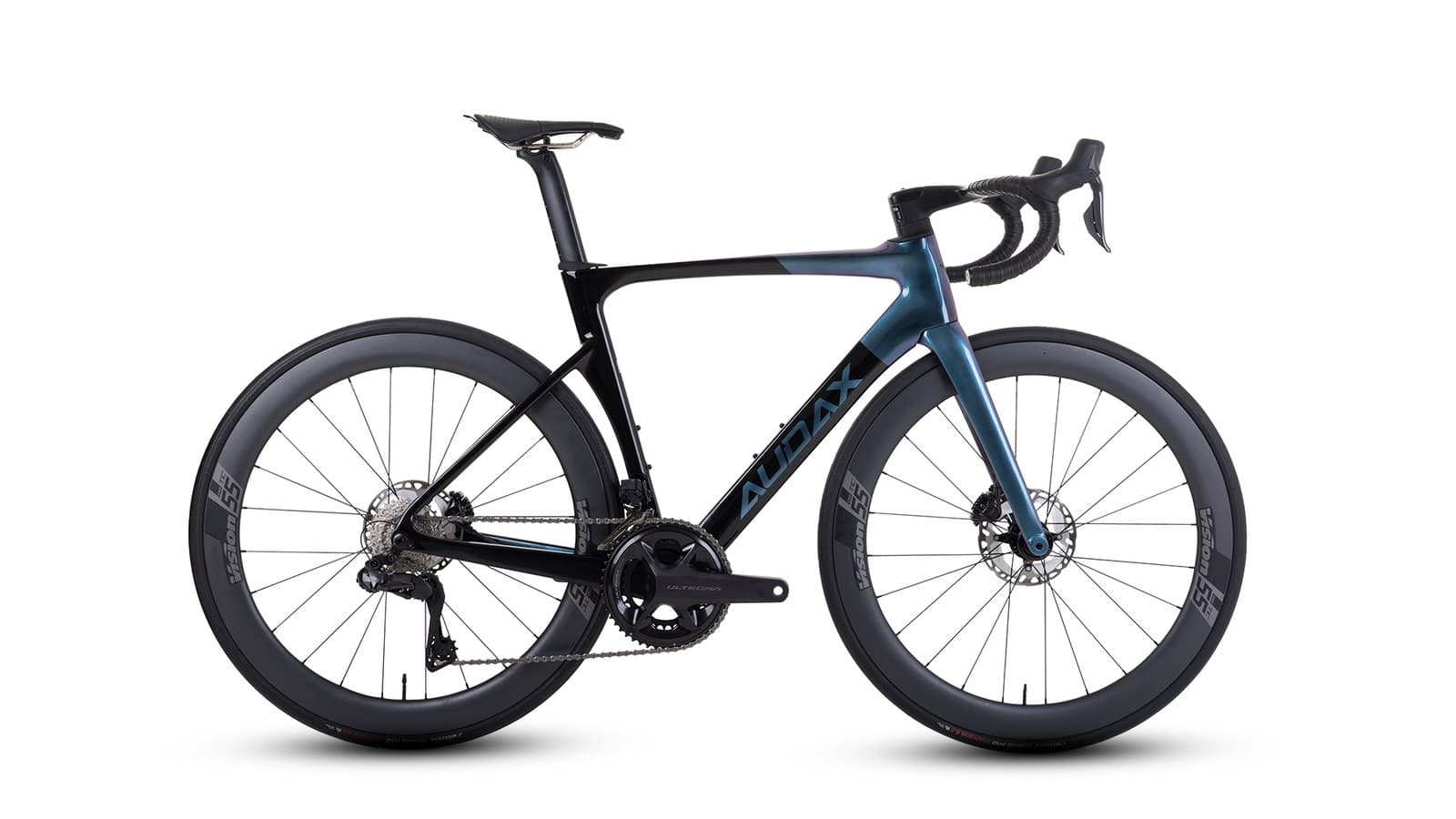

An aero race bike: deep tubes, a stiff front end, and a position that sits in the brand's race family. It wants speed more than all-day stack. Size M sits around 546 mm stack and 390 mm reach, 73° head angle, 405 mm chainstays.
Fast road riders and racers. Compare stack/reach to the brand's lightweight race bike before you assume the size letter matches.
We couldn't find any reviews for this model year.
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R7120 105 HRD | 2×12 |
| Front derailleur | Shimano | FD-R7100 105 | braze-on |
| Rear derailleur | Shimano | RD-R7100 105 | 12-speed |
| Crankset | Shimano | FC-R7100 105 | 50/34
|
| Cassette | Shimano | CS-R7100 105 | 11-34, 12-speed |
| Chain | Shimano | CN-M7100 SLX | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R7170 105 | hydraulic disc |
| Rotors | Shimano | SM-RT70 | 160mm centerlock |
| Wheels | Alloy | road wheelset | 700c |
| Tires | 700x28mm | road | — |
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R7170 105 Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R7150 105 Di2 | braze-on |
| Rear derailleur | Shimano | RD-R7150 105 Di2 | 12-speed |
| Crankset | Shimano | FC-R7100 105 | 52/36
|
| Cassette | Shimano | CS-R7100 105 | 11-34, 12-speed |
| Chain | Shimano | CN-M7100 SLX | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R7170 105 | hydraulic disc |
| Rotors | Shimano | SM-RT70 | 160mm centerlock |
| Bottom bracket | Shimano | BSA threaded | — |
| Wheels |
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R8170 Ultegra Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R8150 Ultegra Di2 | braze-on |
| Rear derailleur | Shimano | RD-R8150 Ultegra Di2 | 12-speed |
| Crankset | Shimano | FC-R8100 Ultegra | 52/36
|
| Cassette | Shimano | CS-R8100 Ultegra | 11-30, 12-speed |
| Chain | Shimano | CN-M8100 Ultegra | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R8170 Ultegra | hydraulic disc |
| Rotors | Shimano | SM-RT800 | 160mm / 140mm centerlock |
| Wheels | 40–50 | mm carbon wheelset |
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R7170 105 Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R7150 105 Di2 | braze-on |
| Rear derailleur | Shimano | RD-R7150 105 Di2 | 12-speed |
| Crankset | Shimano | FC-R7100 105 | 52/36
|
| Cassette | Shimano | CS-R7100 105 | 11-34, 12-speed |
| Chain | Shimano | CN-M7100 SLX | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R7170 105 | hydraulic disc |
| Rotors | Shimano | SM-RT70 | 160mm centerlock |
| Bottom bracket | Shimano | BSA threaded | — |
| Wheels |
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R9270 Dura-Ace Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R9250 Dura-Ace Di2 | braze-on |
| Rear derailleur | Shimano | RD-R9250 Dura-Ace Di2 | 12-speed |
| Crankset | Shimano | FC-R9200 Dura-Ace HollowTech II | 52/36
|
| Cassette | Shimano | CS-R9200 Dura-Ace | 11-30, 12-speed |
| Chain | Shimano | CN-M9100 Dura-Ace | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R9270 Dura-Ace | hydraulic disc |
| Rotors | Shimano | RT-MT900 | 160mm front / 140mm rear |
| Wheels | 50–51 | mm carbon aero wheelset |
MSRP not listed
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R7170 105 Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R7150 105 Di2 | braze-on |
| Rear derailleur | Shimano | RD-R7150 105 Di2 | 12-speed |
| Crankset | Shimano | FC-R7100 105 | 52/36
|
| Cassette | Shimano | CS-R7100 105 | 11-34, 12-speed |
| Chain | Shimano | CN-M7100 SLX | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R7170 105 | hydraulic disc |
| Rotors | Shimano | SM-RT70 | 160mm centerlock |
| Bottom bracket | Shimano | BSA threaded | — |
| Wheels |
| Alloy |
| road wheelset |
700c |
| Tires | 700x28mm | road | — |
|---|
| Tires | 700x28mm | road | — |
|---|
| 40–50 |
| mm carbon wheelset |
700c |
| Tires | 700x28mm | road | — |
|---|
700c |
| Tires | 700x28mm | road | — |
|---|
| 50–51 |
| mm carbon aero wheelset |
700c |
| Tires | 700x28mm | road | — |
|---|
