Loading geometry
Aero Orbea race bike. Deeper tubes than Orca, same size run so many riders can twin the two on stack/reach.
Fast road riders who want Orbea aero. Orca if you care more about weight.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 496 mm | 372 mm | 1.33:1 | 70 mm | 360 mm | 165 mm | 71.0° | 74.5° | 408 mm | 970 mm | 70 mm | 700c |
| 49 | 506 mm | 377 mm | 1.34:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.0° | 408 mm | 974 mm | 70 mm | 700c |
| 51 | 524 mm | 382 mm | 1.37:1 | 90 mm | 400 mm | 170 mm | 72.2° | 73.7° | 408 mm | 978 mm | 70 mm | 700c |
| 53 | 542 mm | 388 mm | 1.40:1 | 90 mm | 400 mm | 170 mm | 72.8° | 73.5° | 408 mm | 980 mm | 68 mm | 700c |
| 55 | 562 mm | 394 mm |

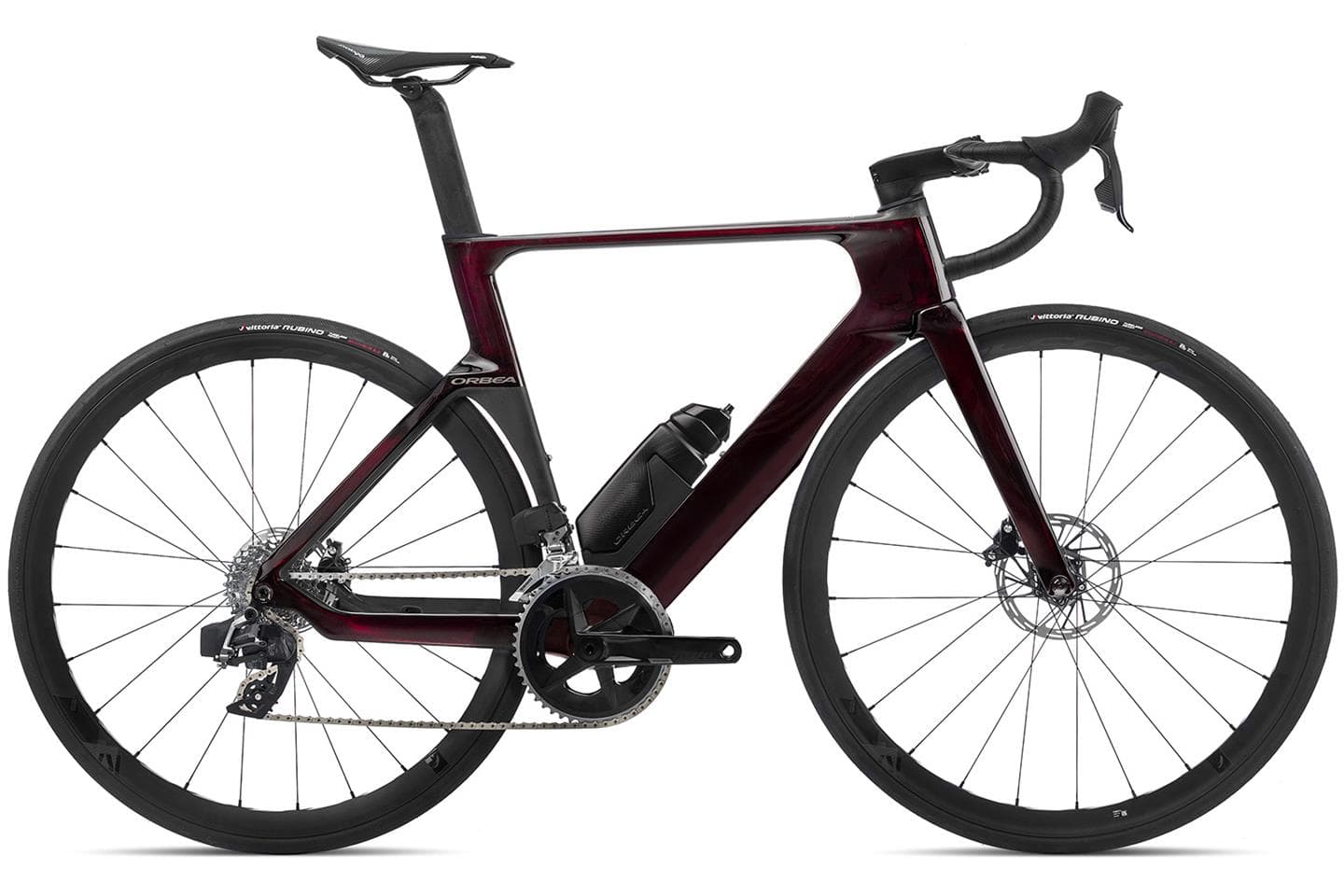

This year's studio shot is year-true studio.
This is the earliest Orca Aero year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
SO FAST! 2022 Orbea Orca Aero with Shimano Dura-Ace 12 ...YouTube · 2022
First Look: NEW Orbea Orca Aero – faster than fast?GRAN FONDO Cycling Magazine · 2017
Orbea Orca Aero first ride review: Fast and stiff, but a rough ...Velo · 2017
Orbea Orca Aero M10Team reviewCycling Weekly · 2018| 1.43:1 |
| 100 mm |
| 420 mm |
| 172.5 mm |
| 73.0° |
| 73.5° |
| 408 mm |
| 990 mm |
| 68 mm |
| 700c |
| 57 | 580 mm | 401 mm | 1.45:1 | 100 mm | 420 mm | 172.5 mm | 73.2° | 73.2° | 408 mm | 1001 mm | 68 mm | 700c |
| 60 | 606 mm | 407 mm | 1.49:1 | 110 mm | 440 mm | 175 mm | 73.2° | 73.2° | 408 mm | 1015 mm | 68 mm | 700c |
