Giant's aero race bike. Stiffer at the front, more wind-cheating than TCR, still in the same size-letter family so many riders can twin the two.
Fast road riders who want aero on Giant's chart. TCR is the lighter, more conventional sibling.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 mm | 380 mm | 1.33:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.5° | 405 mm | 968 mm | 68 mm | 700c |
| S | 520 mm | 386 mm | 1.35:1 | 90 mm | 400 mm | 170 mm | 72.5° | 74.0° | 405 mm | 973 mm | 68 mm | 700c |
| M | 538 mm | 391 mm | 1.38:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 405 mm | 980 mm | 68 mm | 700c |
| ML | 555 mm | 396 mm | 1.40:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 405 mm | 986 mm | 68 mm | 700c |
| L | 573 mm |

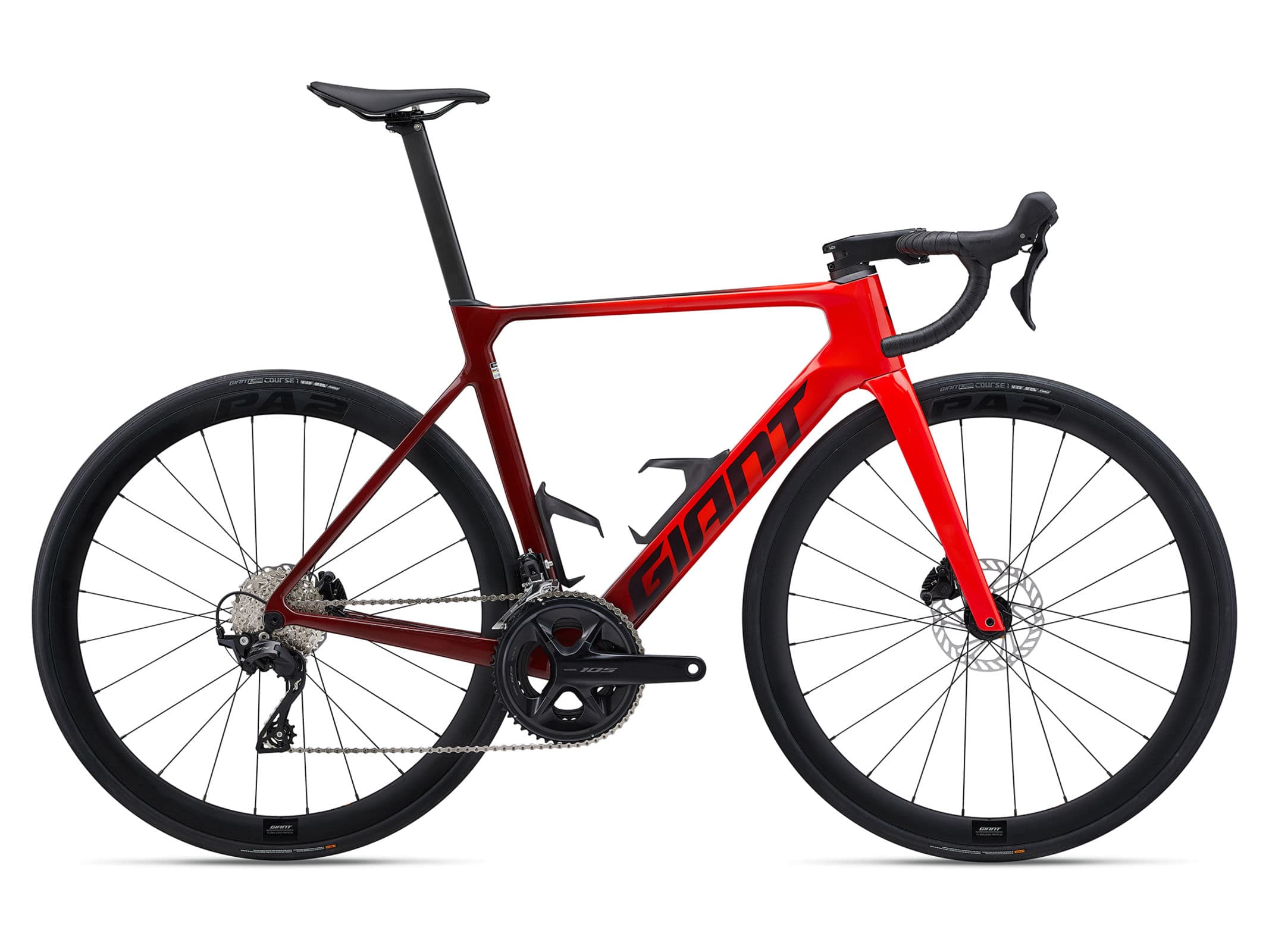

This year's studio shot is year-true studio.
Same published geometry as 2023.
No verified spec sheet for 2024 or 2023.
No launch MSRP in the catalog yet.
Giant Propel Advanced SL 0 reviewBikeRadar · 2022
New GIANT Propel Advanced SL 2023 - More aero, ...GRAN FONDO Cycling Magazine · 2022
2023 Giant Propel Advanced SL 0 long-term reviewVelo · 2022
Giant Propel Advanced Pro 1 2023 - Cycling Newsroad.cc · 2023
GIANT Propel Advanced SL 2023 in review – All-out aero!GRAN FONDO Cycling Magazine · 2023| 404 mm |
| 1.42:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.0° |
| 405 mm |
| 1000 mm |
| 68 mm |
| 700c |
| XL | 591 mm | 412 mm | 1.43:1 | 110 mm | 440 mm | 175 mm | 73.0° | 72.5° | 405 mm | 1014 mm | 68 mm | 700c |
