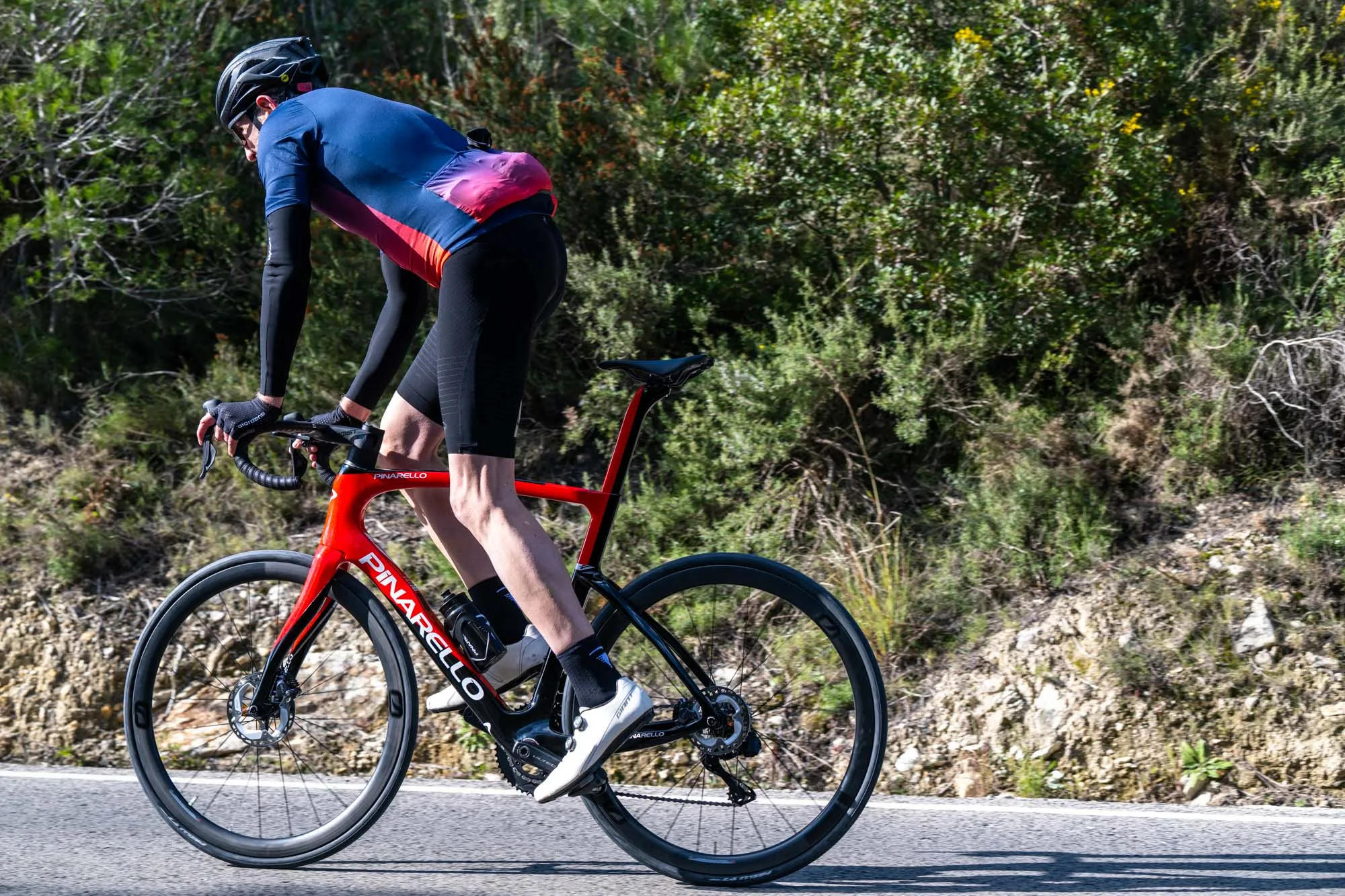

The Dogma-derived race bike at a lower spec ladder. Geometry sits in the same millimetre size run as Dogma F.
Racers who want Pinarello numbers without Dogma F pricing.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 430 | 507 mm | 364 mm | 1.39:1 | 70 mm | 360 mm | 165 mm | 70.5° | 74.4° | 408 mm | 968 mm | 72 mm | 700c |
| 465 | 517 mm | 369 mm | 1.40:1 | 70 mm | 360 mm | 165 mm | 71.0° | 74.0° | 408 mm | 973 mm | 72 mm | 700c |
| 500 | 527 mm | 374 mm | 1.41:1 | 80 mm | 380 mm | 165 mm | 71.5° | 73.7° | 408 mm | 978 mm | 72 mm | 700c |
| 515 | 542 mm | 379 mm | 1.43:1 | 90 mm | 400 mm | 170 mm | 72.0° | 73.5° | 408 mm | 983 mm | 72 mm | 700c |
| 530 | 557 mm |
No colorway catalog for 2023 yet.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 384 mm |
| 1.45:1 |
| 90 mm |
| 400 mm |
| 170 mm |
| 72.5° |
| 73.2° |
| 408 mm |
| 991 mm |
| 72 mm |
| 700c |
| 545 | 572 mm | 389 mm | 1.47:1 | 100 mm | 420 mm | 172.5 mm | 72.8° | 73.0° | 408 mm | 998 mm | 70 mm | 700c |
| 560 | 587 mm | 394 mm | 1.49:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 72.8° | 408 mm | 1008 mm | 70 mm | 700c |
| 575 | 602 mm | 399 mm | 1.51:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 72.5° | 408 mm | 1018 mm | 68 mm | 700c |
| 595 | 617 mm | 404 mm | 1.53:1 | 110 mm | 440 mm | 175 mm | 73.0° | 72.5° | 408 mm | 1028 mm | 68 mm | 700c |
