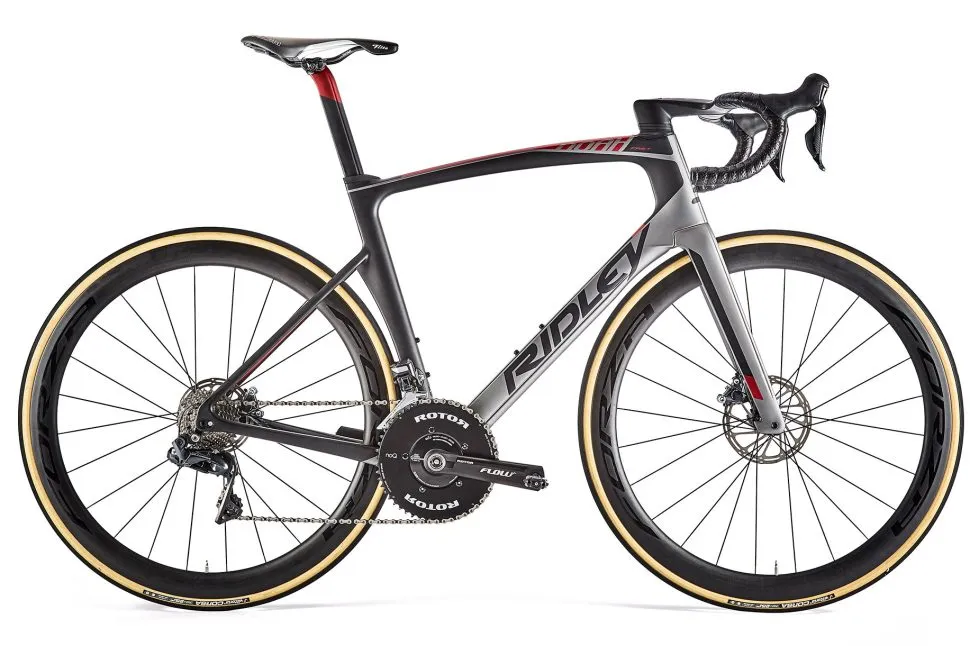

Ridley aero race bike. Deep, fast, Flemish race DNA. Fenix is endurance; Helium is light.
Aero racers shopping Ridley.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 495 mm | 376 mm | 1.32:1 | 70 mm | 360 mm | 165 mm | 71.5° | 74.5° | 405 mm | 970 mm | 70 mm | 700c |
| XS | 510 mm | 382 mm | 1.34:1 | 80 mm | 380 mm | 165 mm | 72.5° | 74.0° | 405 mm | 976 mm | 70 mm | 700c |
| S | 527 mm | 388 mm | 1.36:1 | 90 mm | 400 mm | 170 mm | 73.0° | 73.5° | 405 mm | 984 mm | 68 mm | 700c |
| M | 545 mm | 394 mm | 1.38:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 405 mm | 994 mm | 68 mm | 700c |
| L | 563 mm | 400 mm |
No colorway catalog for 2022 yet.
This is the earliest Noah Fast year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
Ridley Noah Fast Disc Ultegra Di2 reviewCycling Weekly · 2018
Ridley Noah Fast Disc SL30 reviewCanadian Cycling Magazine · 2019
Ridley Noah Fast Disc review | CyclistCyclist · 2019| 1.41:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.5° |
| 73.0° |
| 405 mm |
| 1006 mm |
| 66 mm |
| 700c |
| XL | 581 mm | 406 mm | 1.43:1 | 110 mm | 440 mm | 175 mm | 73.5° | 72.5° | 405 mm | 1018 mm | 66 mm | 700c |
