Scott drop-bar gravel. Addict road DNA with tire room. More race than touring.
Gravel riders who want Scott's road-race sizing on dirt.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 mm | 372 mm | 1.45:1 | 80 mm | 380 mm | 165 mm | 70.5° | 74.0° | 425 mm | 1015 mm | 75 mm | 700c |
| S | 558 mm | 380 mm | 1.47:1 | 90 mm | 400 mm | 170 mm | 71.0° | 73.8° | 425 mm | 1025 mm | 75 mm | 700c |
| M | 578 mm | 388 mm | 1.49:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 425 mm | 1038 mm | 75 mm | 700c |
| L | 598 mm | 395 mm | 1.51:1 | 110 mm | 440 mm | 175 mm | 72.0° | 73.2° | 425 mm | 1050 mm | 73 mm | 700c |
| XL | 618 mm |

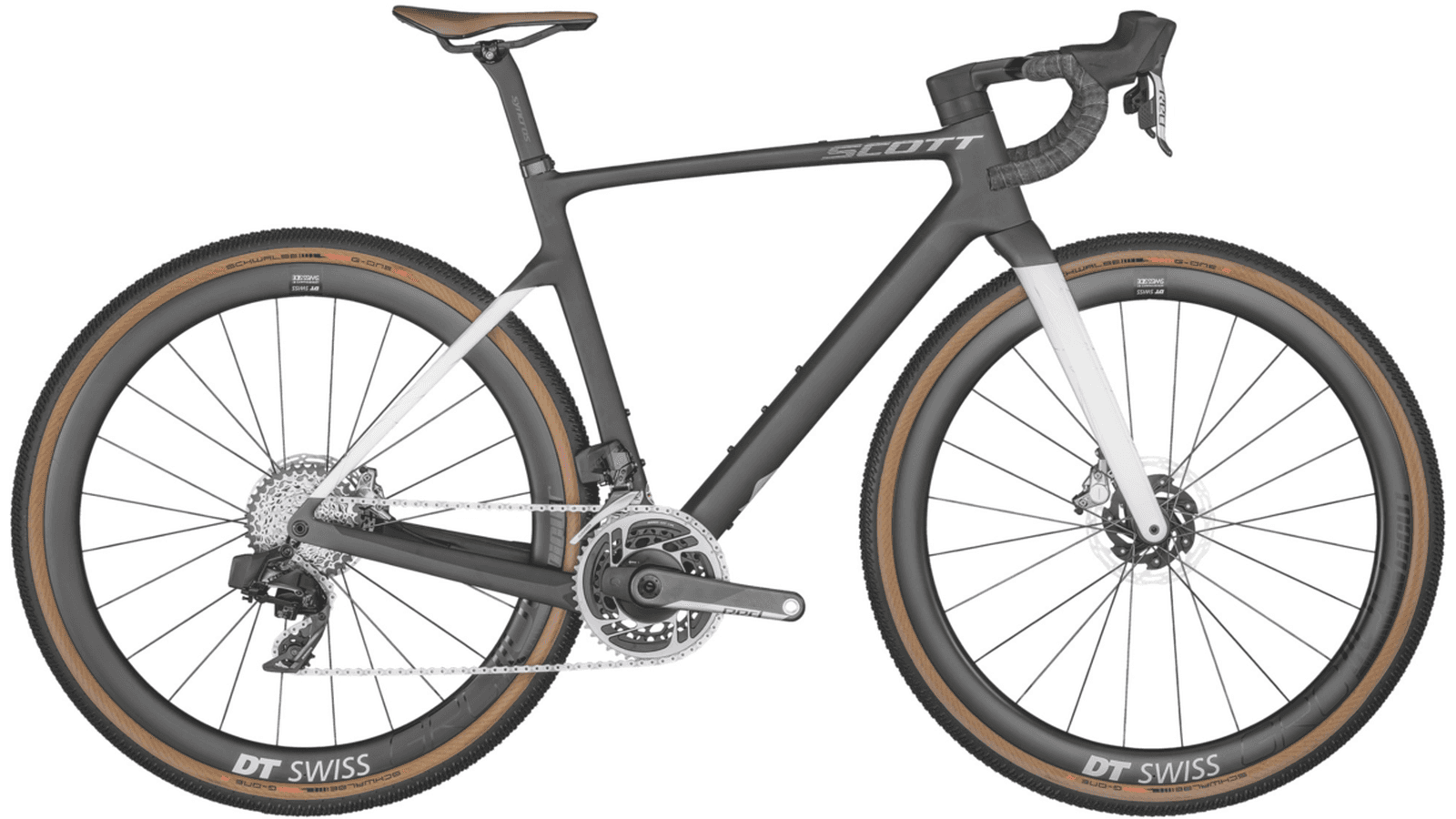

This year's studio shot is 2022 ADDICT GRAVEL.
This is the earliest Addict Gravel year in the catalog. No prior year to compare.
No verified spec sheet for 2022 yet.
No launch MSRP in the catalog yet.
| 402 mm |
| 1.54:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.0° |
| 425 mm |
| 1062 mm |
| 73 mm |
| 700c |
