Scott drop-bar gravel. Addict road DNA with tire room. More race than touring.
Gravel riders who want Scott's road-race sizing on dirt.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 mm | 372 mm | 1.45:1 | 80 mm | 380 mm | 165 mm | 70.5° | 74.0° | 425 mm | 1015 mm | 75 mm | 700c |
| S | 558 mm | 380 mm | 1.47:1 | 90 mm | 400 mm | 170 mm | 71.0° | 73.8° | 425 mm | 1025 mm | 75 mm | 700c |
| M | 578 mm | 388 mm | 1.49:1 | 100 mm | 420 mm | 172.5 mm | 71.5° | 73.5° | 425 mm | 1038 mm | 75 mm | 700c |
| L | 598 mm | 395 mm | 1.51:1 | 110 mm | 440 mm | 175 mm | 72.0° | 73.2° | 425 mm | 1050 mm | 73 mm | 700c |
| XL | 618 mm |

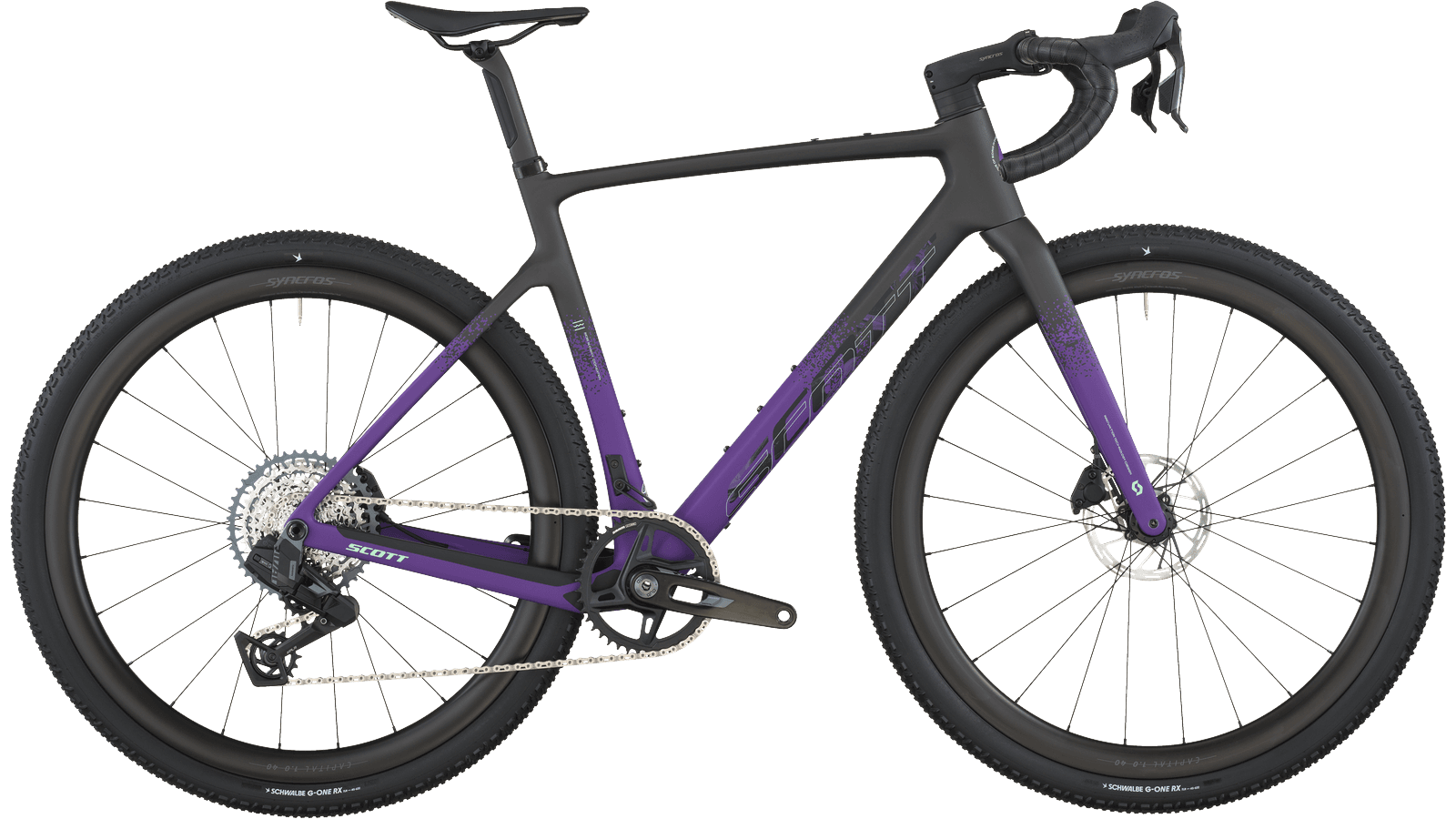

This year's studio shot is Addict Gravel 20 carbon black/indigo purple.
Same published geometry as 2025.
No verified spec sheet for 2026 or 2025.
No launch MSRP in the catalog yet.
| 402 mm |
| 1.54:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.0° |
| 425 mm |
| 1062 mm |
| 73 mm |
| 700c |
