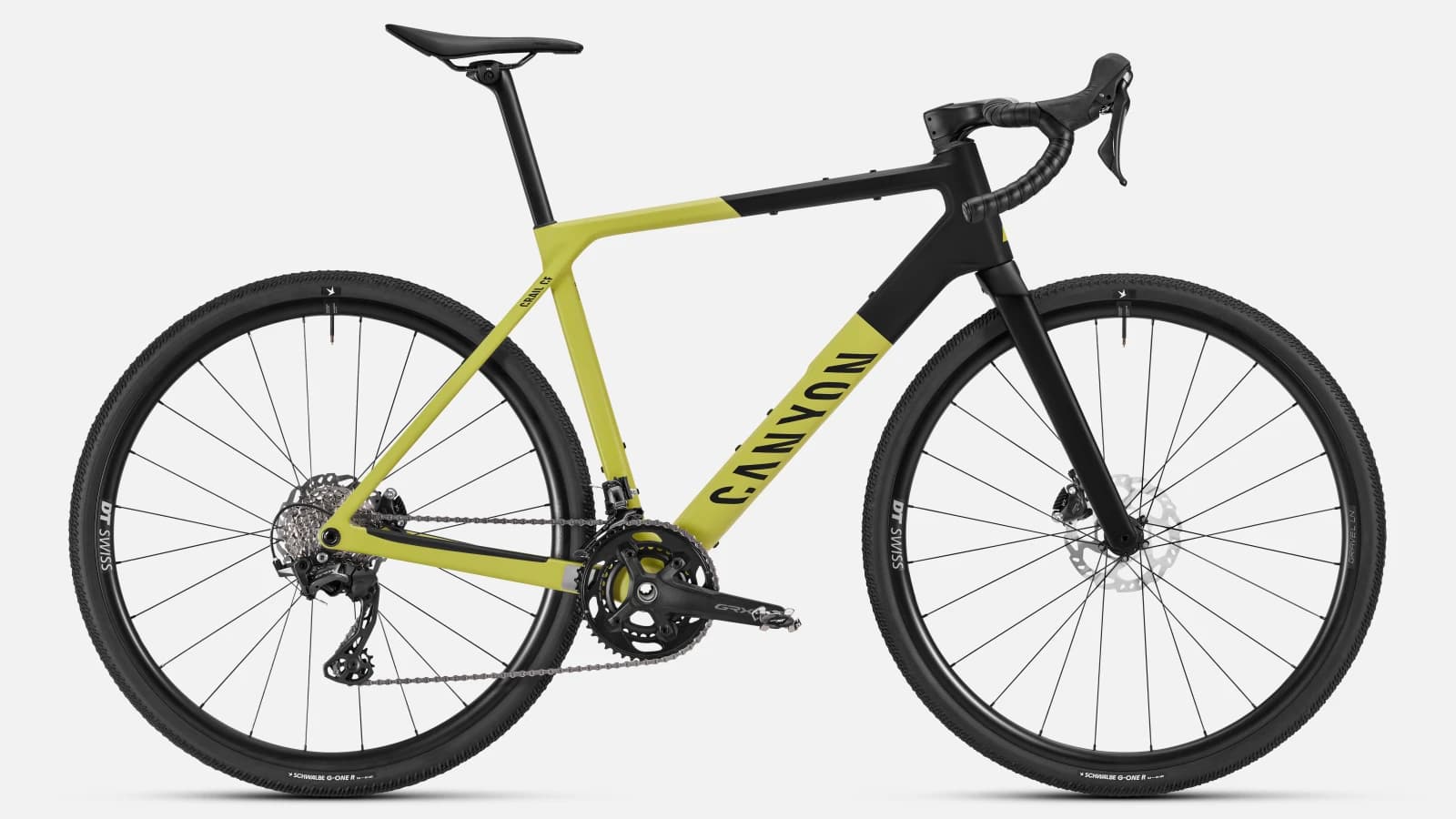

Gravel-race geometry with a distinctive front end. Quick to turn and happier on fast dirt than on loaded bikepacking tracks.
Riders who want a drop-bar bike for mixed-surface events, not a touring mule.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 535 mm | 370 mm | 1.45:1 | 70 mm | 360 mm | 165 mm | 70.5° | 73.5° | 425 mm | 1010 mm | 75 mm | 700c |
| XS | 552 mm | 378 mm | 1.46:1 | 80 mm | 380 mm | 165 mm | 71.0° | 73.5° | 425 mm | 1018 mm | 75 mm | 700c |
| S | 575 mm | 385 mm | 1.49:1 | 90 mm | 400 mm | 170 mm | 71.5° | 73.5° | 425 mm | 1028 mm | 75 mm | 700c |
| M | 598 mm | 392 mm | 1.53:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.5° | 425 mm | 1038 mm | 75 mm | 700c |
| L | 620 mm |
Same OEM palette as 2023.
Same published geometry as 2023.
No verified spec sheet for 2024 or 2023.
No launch MSRP in the catalog yet.
Review: The 2024 Canyon Grail CF moves further into ...Escape Collective · 2023
Canyon Grail CF SLX 8 Di2 2024 - Cycling Newsroad.cc · 2023
Canyon Grail CF SLX 8 Di2 reviewCyclist · 2024

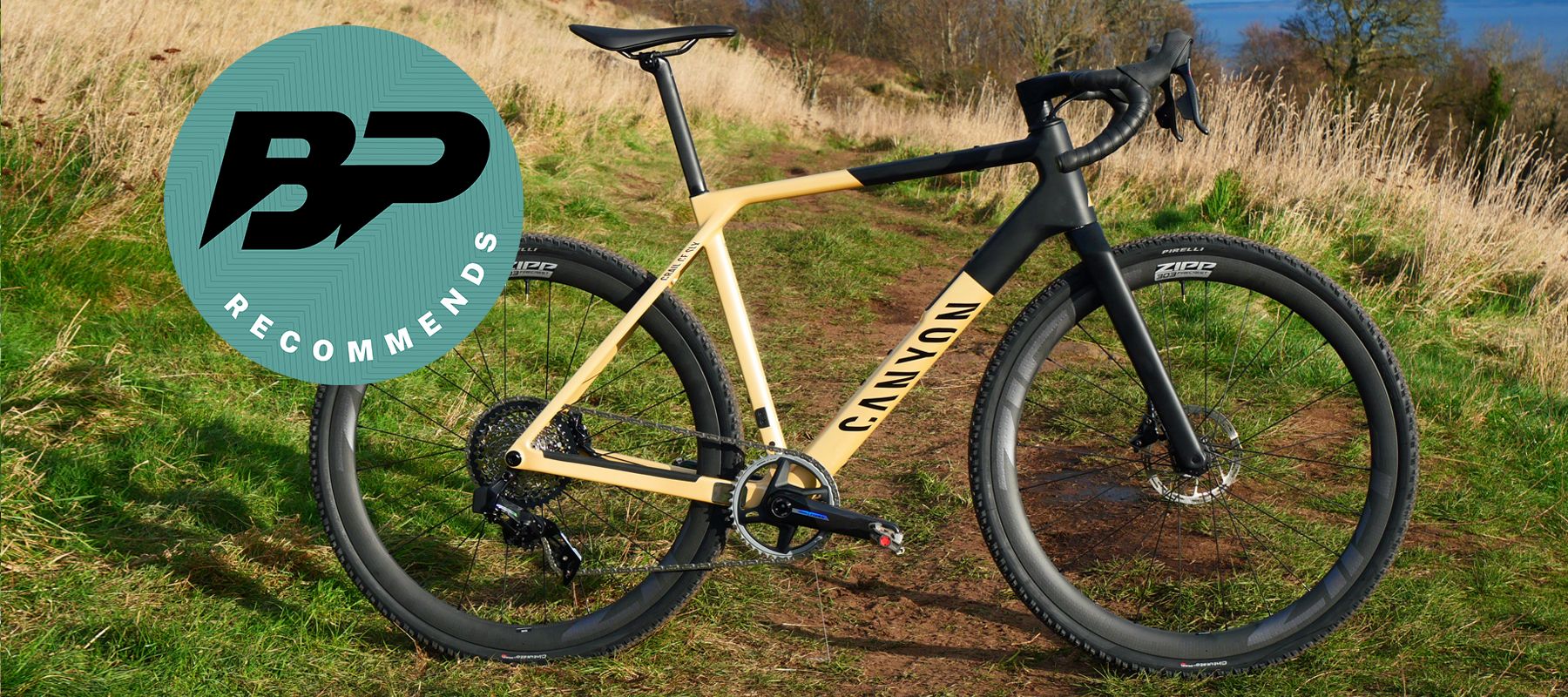

Canyon Grail CF SLX 8 AXS 2024 gravel bike reviewBike Perfect · 2024
Canyon Grail CF SLX 8 Di2 review | Gravel Bike of the ...BikeRadar · 2024| 399 mm |
| 1.55:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.5° |
| 425 mm |
| 1050 mm |
| 73 mm |
| 700c |
| XL | 642 mm | 406 mm | 1.58:1 | 110 mm | 440 mm | 175 mm | 72.5° | 73.5° | 425 mm | 1060 mm | 73 mm | 700c |
