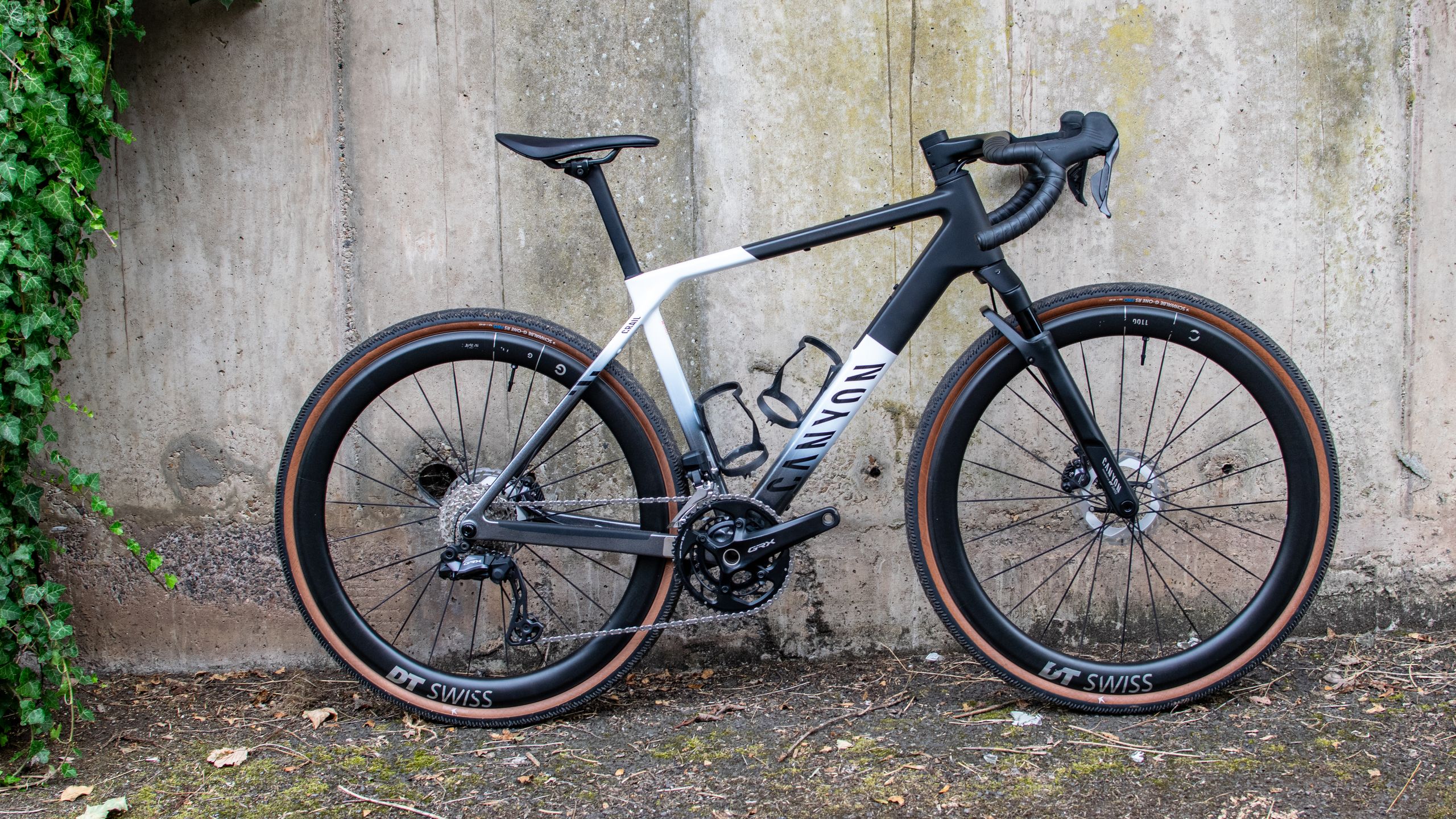

Gravel-race geometry with a distinctive front end. Quick to turn and happier on fast dirt than on loaded bikepacking tracks.
Riders who want a drop-bar bike for mixed-surface events, not a touring mule.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 535 mm | 370 mm | 1.45:1 | 70 mm | 360 mm | 165 mm | 70.5° | 73.5° | 425 mm | 1010 mm | 75 mm | 700c |
| XS | 552 mm | 378 mm | 1.46:1 | 80 mm | 380 mm | 165 mm | 71.0° | 73.5° | 425 mm | 1018 mm | 75 mm | 700c |
| S | 575 mm | 385 mm | 1.49:1 | 90 mm | 400 mm | 170 mm | 71.5° | 73.5° | 425 mm | 1028 mm | 75 mm | 700c |
| M | 598 mm | 392 mm | 1.53:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.5° | 425 mm | 1038 mm | 75 mm | 700c |
| L | 620 mm |
Same OEM palette as 2024.
Same published geometry as 2024.
These are the verified 2025 builds. No 2024 sheet to compare.
No launch MSRP in the catalog yet.
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | SRAM | SRAM Rival XPLR AXS | 1×12 |
| Rear derailleur | SRAM | SRAM Rival XPLR AXS | — |
| Crankset | SRAM | SRAM Rival XPLR AXS |
|
| Cassette | SRAM | 12-speed | — |
| Chain | SRAM | 12-speed | — |
| Power meter | — | None | — |
| Brakes | SRAM | hydraulic disc | — |
| Rotors | SRAM | 180mm | — |
| Cockpit | Canyon | H36 Aerocockpit |
|
| Seatpost | Canyon | S15 VCLS 2.0 | — |
| Saddle |
| 399 mm |
| 1.55:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.0° |
| 73.5° |
| 425 mm |
| 1050 mm |
| 73 mm |
| 700c |
| XL | 642 mm | 406 mm | 1.58:1 | 110 mm | 440 mm | 175 mm | 72.5° | 73.5° | 425 mm | 1060 mm | 73 mm | 700c |
| Selle Italia |
| Model X |
| — |
| Wheels | DT Swiss | Endurance LN | 700c |
|---|
| Tires | Schwalbe | One TLE, 700x28mm | — |
|---|
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R8170 Ultegra Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R8150 Ultegra Di2 | braze-on |
| Rear derailleur | Shimano | RD-R8150 Ultegra Di2 | 12-speed |
| Crankset | Shimano | FC-R8100 Ultegra | 52/36
|
| Cassette | Shimano | CS-R8100 Ultegra | 11-30, 12-speed |
| Chain | Shimano | CN-M8100 Ultegra | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R8170 Ultegra | hydraulic disc |
| Rotors | Shimano | SM-RT800 | 160mm / 140mm centerlock |
| Cockpit | Canyon | CP0018 Aerocockpit |
|
| Seatpost | Canyon | SP0046 aero carbon | — |
| Saddle | Fizik | Tempo Argo R5 | — |
| Wheels | DT Swiss | ARC 1600 DICUT 50 | 700c |
| Tires | Continental | Grand Prix 5000 S TR, 700x28mm | — |
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | SRAM | SRAM Force XPLR AXS | 1×12 |
| Rear derailleur | SRAM | SRAM Force XPLR AXS | — |
| Crankset | SRAM | SRAM Force XPLR AXS |
|
| Cassette | SRAM | 12-speed | — |
| Chain | SRAM | 12-speed | — |
| Power meter | — | None | — |
| Brakes | SRAM | hydraulic disc | — |
| Rotors | SRAM | 180mm | — |
| Cockpit | Canyon | CP0018 Aerocockpit |
|
| Seatpost | Canyon | SP0046 aero carbon | — |
| Saddle | Fizik | Tempo Argo R5 | — |
| Wheels | DT Swiss | ARC 1600 DICUT 50 | 700c |
| Tires | Continental | Grand Prix 5000 S TR, 700x28mm | — |
