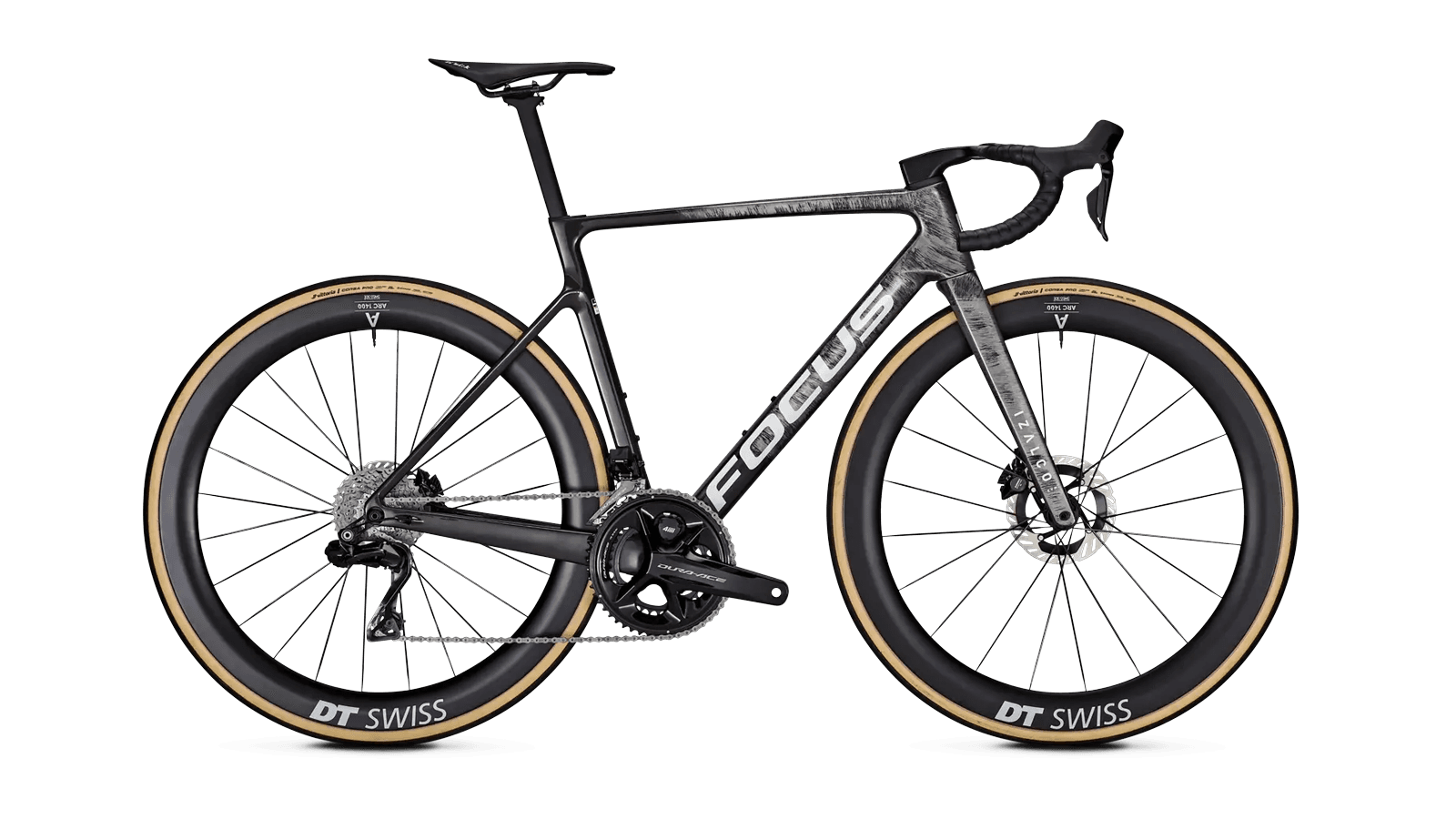

Focus race road bike. German race geometry, the fast Focus versus Paralane endurance.
Racers shopping Focus. Paralane for stack; Atlas for gravel.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 mm | 375 mm | 1.36:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.5° | 410 mm | 976 mm | 72 mm | 700c |
| S | 528 mm | 381 mm | 1.39:1 | 90 mm | 400 mm | 170 mm | 72.5° | 74.0° | 410 mm | 982 mm | 72 mm | 700c |
| M | 546 mm | 387 mm | 1.41:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 410 mm | 990 mm | 70 mm | 700c |
| L | 564 mm | 393 mm | 1.44:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 410 mm | 1000 mm | 70 mm | 700c |
| XL | 582 mm | 399 mm |
No colorway catalog for 2026 yet.
Same published geometry as 2025.
No verified spec sheet for 2026 or 2025.
No launch MSRP in the catalog yet.
| 1.46:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.5° |
| 73.0° |
| 410 mm |
| 1012 mm |
| 68 mm |
| 700c |
| XXL | 600 mm | 405 mm | 1.48:1 | 110 mm | 440 mm | 175 mm | 73.5° | 72.5° | 410 mm | 1024 mm | 68 mm | 700c |
