Loading geometry

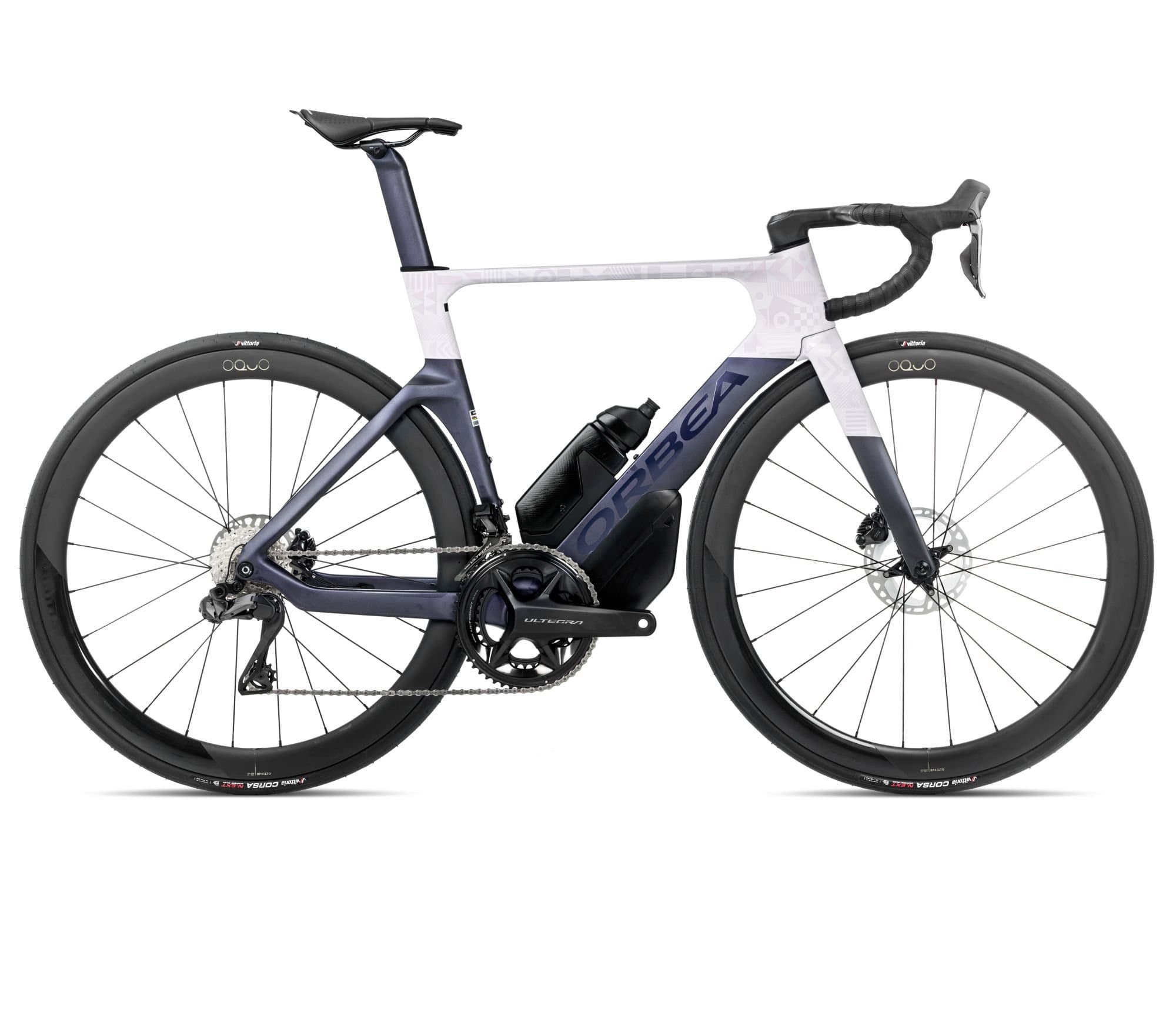

Aero Orbea race bike. Deeper tubes than Orca, same size run so many riders can twin the two on stack/reach.
Fast road riders who want Orbea aero. Orca if you care more about weight.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 496 mm | 372 mm | 1.33:1 | 70 mm | 360 mm | 165 mm | 71.0° | 74.5° | 408 mm | 970 mm | 70 mm | 700c |
| 49 | 506 mm | 377 mm | 1.34:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.0° | 408 mm | 974 mm | 70 mm | 700c |
| 51 | 524 mm | 382 mm | 1.37:1 | 90 mm | 400 mm | 170 mm | 72.2° | 73.7° | 408 mm | 978 mm | 70 mm | 700c |
| 53 | 542 mm | 388 mm | 1.40:1 | 90 mm | 400 mm | 170 mm | 72.8° | 73.5° | 408 mm | 980 mm | 68 mm | 700c |
| 55 | 562 mm | 394 mm |
These are the 2026 colors. No 2025 palette to compare.
Same published geometry as 2025.
No verified spec sheet for 2026 or 2025.
No launch MSRP in the catalog yet.
| 1.43:1 |
| 100 mm |
| 420 mm |
| 172.5 mm |
| 73.0° |
| 73.5° |
| 408 mm |
| 990 mm |
| 68 mm |
| 700c |
| 57 | 580 mm | 401 mm | 1.45:1 | 100 mm | 420 mm | 172.5 mm | 73.2° | 73.2° | 408 mm | 1001 mm | 68 mm | 700c |
| 60 | 606 mm | 407 mm | 1.49:1 | 110 mm | 440 mm | 175 mm | 73.2° | 73.2° | 408 mm | 1015 mm | 68 mm | 700c |
