Bikes / Orro / Venturi
Orro Venturi 2023 Geometry, Reviews, and Specs
Orro Venturi STC 105 Di2 R800 Carbon Road Bike - 2023 | Merlin CyclesFit and steering
Aggressive fitSlow steeringFast steeringRelaxed fit Orro Venturi 2023 Sizing Guide
Orro Venturi 2023 Geometry Chart
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|
| XS | 510 mm | 379 mm | 1.35:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.5° | 406 mm | 976 mm | 70 mm | 700c |
| S | 528 mm | 385 mm | 1.37:1 | 90 mm | 400 mm | 170 mm | 72.5° | 74.0° | 406 mm | 982 mm | 70 mm | 700c |
| M | 546 mm | 391 mm | 1.40:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 406 mm | 990 mm | 68 mm | 700c |
| L | 564 mm | 397 mm | 1.42:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 406 mm | 1000 mm | 68 mm | 700c |
| XL | 582 mm | 403 mm |
2023 colorways

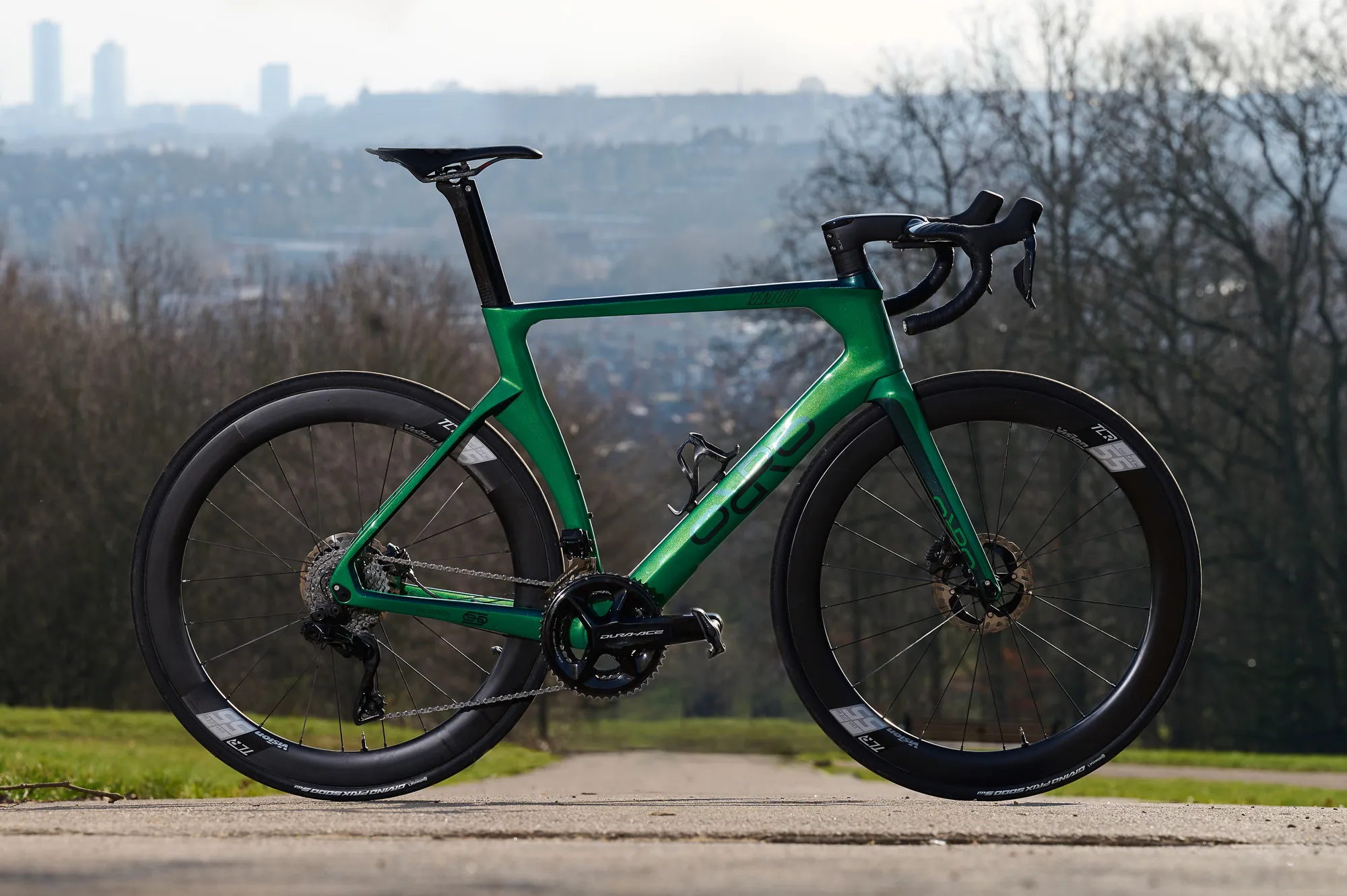

This year's studio shot is Orro Venturi STC 105 Di2 R800 Carbon Road Bike - 2023 | Merlin Cycles.
- We do not have a full OEM palette to diff against 2022 yet.
What changed in the bike frame
Same published geometry as 2022.
- Published geometry matches the 2022 Orro Venturi. Same sizes, same stack and reach.
What changed in equipment
No verified spec sheet for 2023 or 2022.
What changed in price
No launch MSRP in the catalog yet.
Compare 2023 and 2022 Orro Venturi side by side
