Trek's gravel all-rounder: stable, mounts everywhere, calmer than the Checkmate race bike. It likes loaded days more than a CX bike does.
Gravel riders who want one bike for events and weekends, not a dedicated race whip.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 mm | 380 mm | 1.41:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.0° | 430 mm | 1013 mm | 76 mm | 700c |
| S | 556 mm | 386 mm | 1.44:1 | 90 mm | 400 mm | 170 mm | 71.4° | 73.7° | 430 mm | 1022 mm | 76 mm | 700c |
| M | 579 mm | 391 mm | 1.48:1 | 100 mm | 420 mm | 172.5 mm | 71.6° | 73.4° | 430 mm | 1034 mm | 76 mm | 700c |
| ML | 601 mm | 397 mm | 1.51:1 | 100 mm | 420 mm | 172.5 mm | 72.0° | 73.2° | 430 mm | 1042 mm | 76 mm | 700c |
| L | 620 mm |

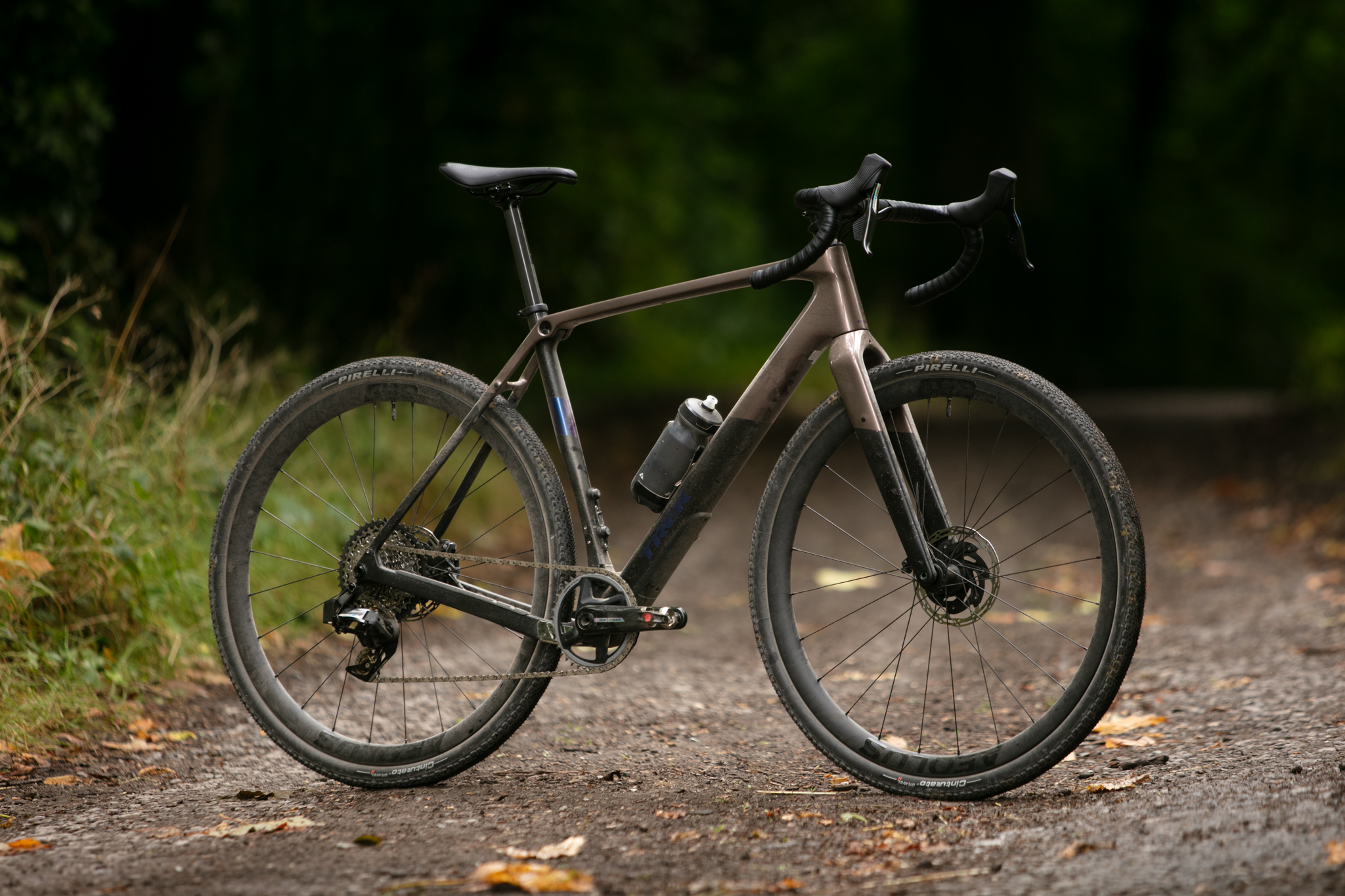

This year's studio shot is year-true studio.
Same published geometry as 2023.
No verified spec sheet for 2024 or 2023.
No launch MSRP in the catalog yet.
New Trek Checkpoint SL Has Golden Retriever Energy - VeloVelo · 2024
First Look | Trek Checkmate SLR and Checkpoint SL Gen 3Flow Mountain Bike · 2024
Trek Checkpoint SL 7 AXS – Put to the test in our big ...GRAN FONDO Cycling Magazine · 2024
Trek Checkpoint SL 7 Gen 3 first ride reviewroad.cc · 2024
Trek Checkpoint SL 7 AXS Gen 3 gravel bike review| 402 mm |
| 1.54:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 72.1° |
| 73.0° |
| 430 mm |
| 1052 mm |
| 76 mm |
| 700c |
| XL | 640 mm | 408 mm | 1.57:1 | 110 mm | 440 mm | 175 mm | 72.4° | 72.8° | 430 mm | 1062 mm | 76 mm | 700c |
