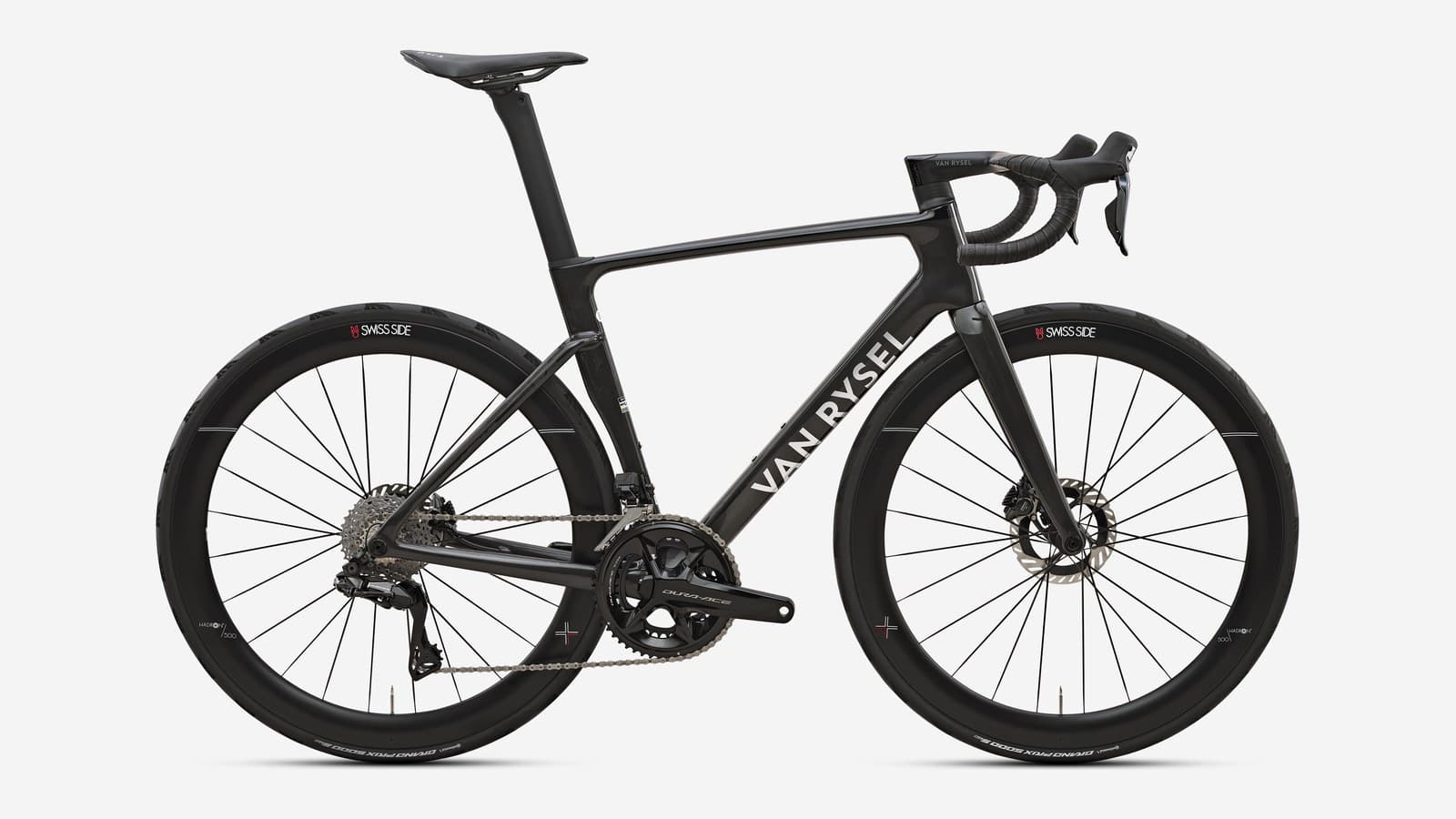

Van Rysel's race road bike — the WorldTour-adjacent Decathlon racer. Low, stiff, and surprisingly close to a Tarmac-class stack/reach if you size carefully.
Racers who want Van Rysel. EDR if you need stack.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 mm | 378 mm | 1.34:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.5° | 408 mm | 974 mm | 72 mm | 700c |
| S | 525 mm | 384 mm | 1.37:1 | 90 mm | 400 mm | 170 mm | 72.5° | 74.0° | 408 mm | 980 mm | 72 mm | 700c |
| M | 543 mm | 390 mm | 1.39:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 408 mm | 988 mm | 70 mm | 700c |
| L | 561 mm | 396 mm | 1.42:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 408 mm | 998 mm | 70 mm | 700c |
| XL | 579 mm | 402 mm |
No colorway catalog for 2023 yet.
This is the earliest RCR year in the catalog. No prior year to compare.
No verified spec sheet for 2023 yet.
No launch MSRP in the catalog yet.
| 1.44:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.5° |
| 73.0° |
| 408 mm |
| 1010 mm |
| 68 mm |
| 700c |
